Performance features:
Background suppression sensor, detection distance is not affected by color, sensitivity self-learning settings;
Multiple protection, safe and stable;
Adoption of imported electronic components, high sensitivity, stable performance, strong anti-interference, long service life;
Intelligent setting distance, self-learning, inductive switch a key to set the distance;
High-quality pure copper wire core wire, tensile and flexural resistance, real material, safe conductive
Specification：
|
Detection Method |
Background Suppression Type |
||
|

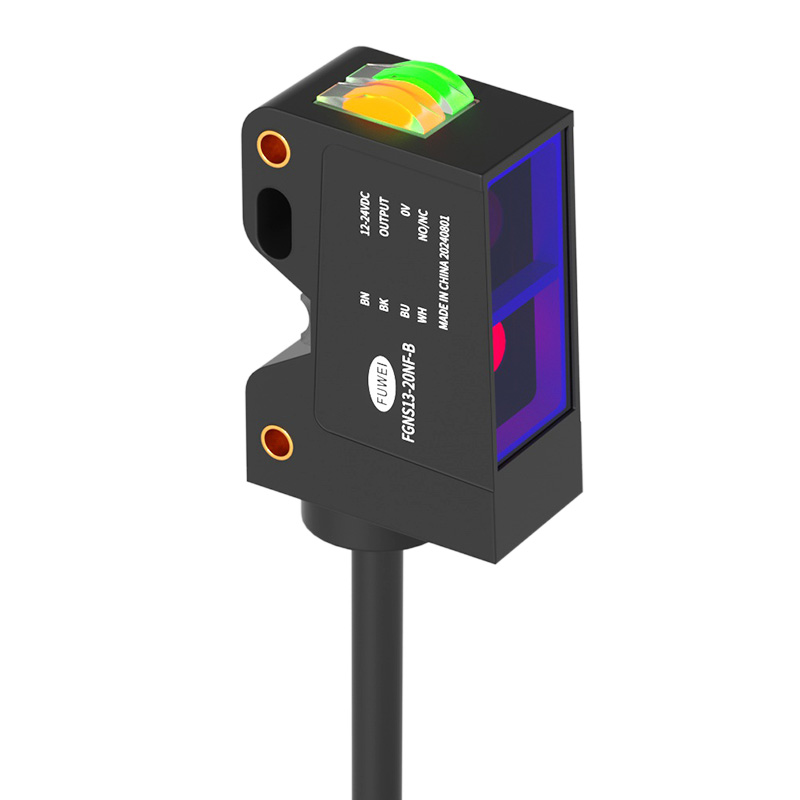

Model |
NPN 0utput |
FGNS13-20NF-B |
FGNS13-30NF-B |
|
PNP Output |
FGNS13-20PF-B |
FGNS13-30PF-B |
|
|
Detection Distance |
25-200mm |
25-300mm |
|
|
Set Distance Range |
25-200mm(lt Is Not RecommendedTo Set Within An Edge Distance OfLess Than 50mm) |
25-300mm(it Is Not Recommended To Set Within An Edge Distance Of Less Than 50mm) |
|
|
Black- WhiteError |
Tested Object: Black And WhiteCardboard |
200mm>Intermediate Distance>50mnh(Black-White Error: <2mm) |
300mm>Intermediate Distance>50mm(Black-White Error: <2mm) |
|
Edge distance:(50mm/200mm) <5mm |
Edge distance:(50mm/300mm) <5mm |
||
|
Repeatability |
<0.1mm |
||
|
Response speed |
<2ms |
||
|
Light transmitting element |
Red light-emitting diode |
Infrared Light-Emitting Diode |
|
|
Output Control |
Output Form |
Load Power Supply Below Dc24.6v, Load Current Below100ma, Leakage Current Below 10ua. Npn CollectorOpen-Circuit Output, Pnp Emitter Open-Circuit Output. |
|
|
0utput Action |
When The White Wire ls Not Connected To The Blue Wire (Negative Pole) And Lightls input, it is in The No (Normally Open) State;When The White Wire is Connected To The Blue Wire (Negative Pole) And Light isInput, it is in The Nc (Normally Closed) State |
||
|
Indicator Light |
Green: Powerindicator light; Orange: Action indicator light & distance settingindicatorlight. |
||
|
Power Supply Voltage |
12-24VCD |
||
|
Consumption Current |
<35mA, it Can AutomaticallyAdjust The Transmission Current AccordingTo The Detected Signal Strength. |
||
|
Protective Circuit |
Reverse Connection Protection Of Power Supply, Output Short-Circuit Protection |
||
|
Distance Setting Method |
Rself-Learning, One-Button Setting For inductive Switch |
||
|
Ambient llluminance |
Incandescent Lamp<3500LX; Sunlight≤100000LX |
||
|
Ambient Temperature |
DuringOperation:-20°c°~+60°CDuring Saving: -20°C~+60°C |
||
|
Ambient Humidity |
During Working:35~85%RH During Saving: 35~95%RH |
||
|
Protection Level |
IP65 |
||
|
Material |
ABS |
||
