The FUWEI FGQ18-2000NT Photoelectric Sensor, a product that truly encapsulates the precision and innovation of China's manufacturing industry, stands as a testament to our nation's dedication to excellence. As a leading manufacturer and supplier, Fuwei has established a strong reputation for delivering top-notch sensors that meet the highest standards of performance and reliability.
Produced in a modern factory equipped with the latest machinery and technology, the FGQ18-2000NT sensor undergoes a rigorous quality control process to ensure its superiority. From raw material selection to final assembly, every step is carefully monitored and optimized to guarantee the highest quality output.
The mirror-reflective design of the FGQ18-2000NT sensor offers a unique advantage in detection capabilities. By utilizing a mirror-based reflection system, it can accurately detect objects within its sensing range, even in challenging environments. This feature makes it an ideal choice for a wide range of industrial applications, including automation, robotics, and packaging systems.
Moreover, as a trusted supplier, Fuwei understands that each customer's needs are unique. That's why we offer customized solutions to cater to specific requirements. Whether you need a sensor with a different sensing range, output type, or other specifications, our team of experts will work closely with you to develop a tailored solution that perfectly suits your needs.
Stable Detection
Detectable minimum ф20mm unobtrusive object.
Multiple Protection
Not only does it protect the product itself, but it alsoprotects the equipment from damage, making it saferduring operation.
Short Circuit ProtectionWhen a load short circuit occurs, it not only protectsitself but also protects the load from being burned out.
Polarity Protection
Reverse connection ofthe positive and negative polesof the product power cord will not burn out the product.
Overload Protection
Voltage within DC10~30V can be used normally for along time.
Zener Protection
Adjust the input voltage and protect the circuit fromovervoltage by providing a regulated voltage.

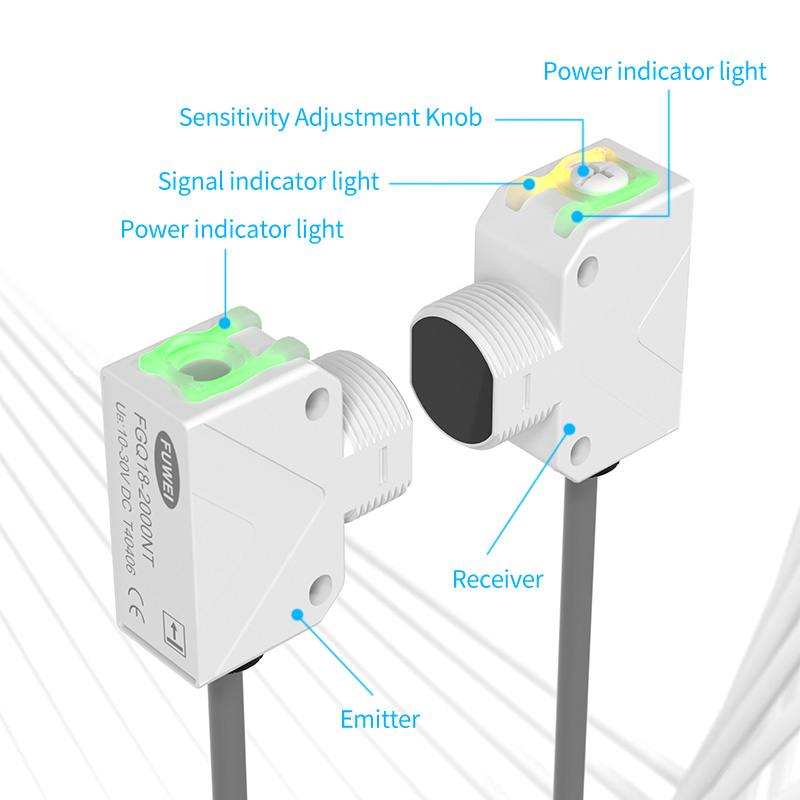

Sensitivity Fine-tuning
The large knob design is not afraid ofslipping, makingitconvenient and fast to adjust the distance, allowing formore precise adjustment ofthe optimal position fordetecting objects.

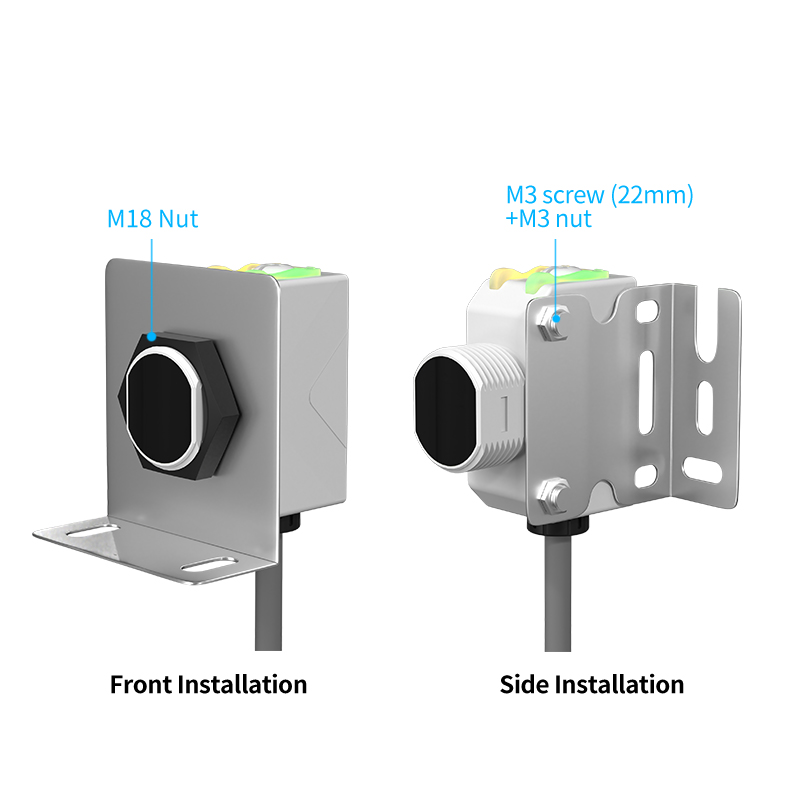

Front/Side Installation
Sensors can be installed front (using M18 nuts) or side(using M3 screws) for flexible use in various applications.
Large AngleLong-distance
The maximum detection distance can reach up to 20m,and even if the installation angle deviates too much,it can be sensed and recognized.
IP67 Protection Level
Completely dustproof and resistant to short-term soaking

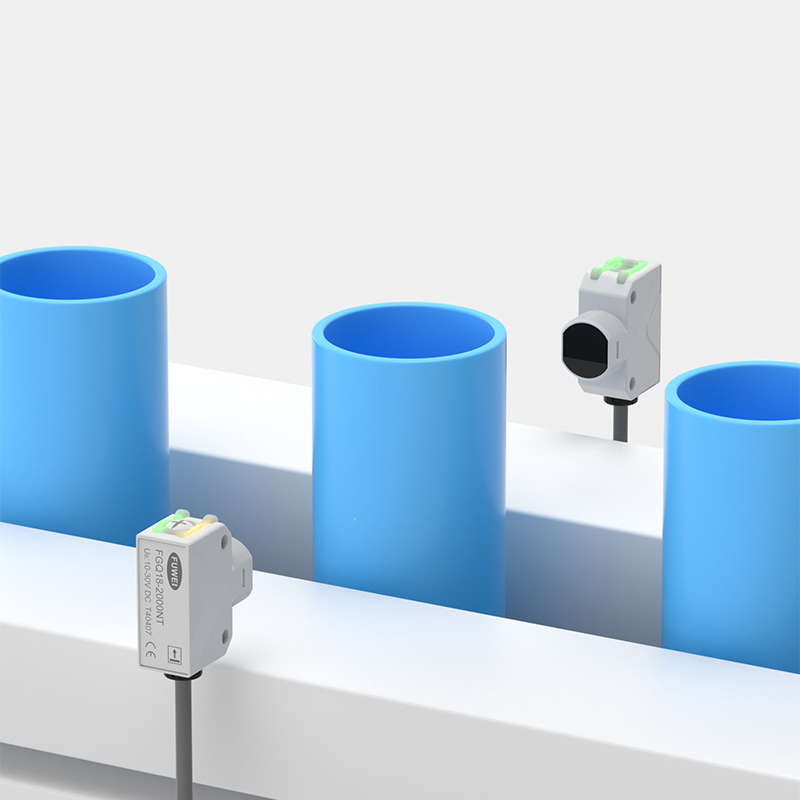

Application Scenarios
Cargo Protrusion Detection
Vehicle Exceeded Detection

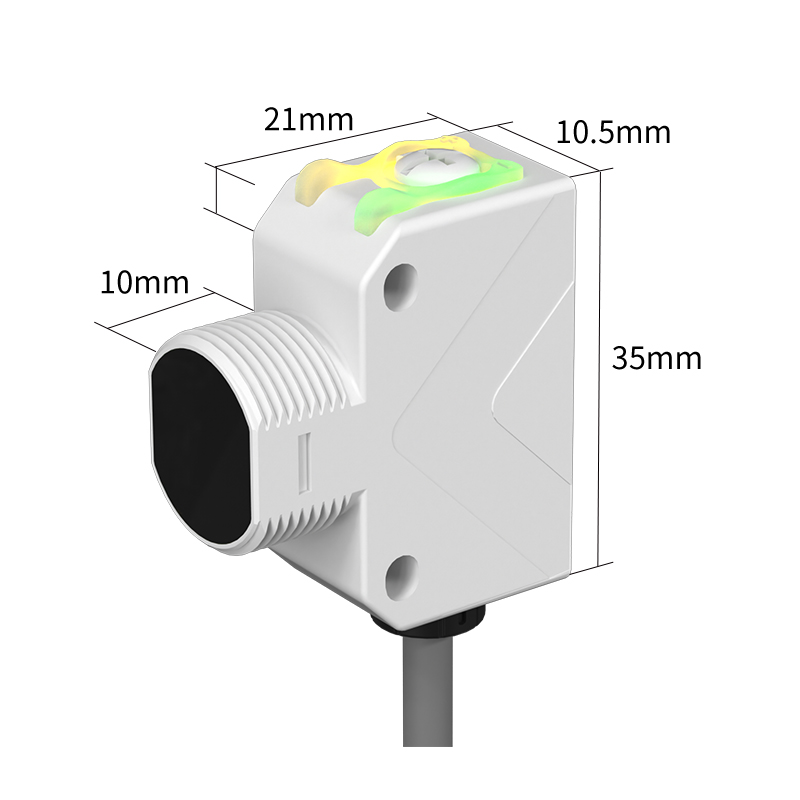

Product Size
Specification：
<200mA
Voltage
Detection
Antipodal type
Model
FGQ18-2000NT
FGQ18-2000PT
Output
NPN.NO/NC
PNP.NO/NC
Detection Distance
0.3~20m
Light Source
Infrared LED 850nm
Load Current
Residual Voltage
<1V receiver
Distance Adjustment
Single turn potentiometer
Response Time
<lms
Size
31 x35 x 15mm
Protection Circuit
Short circuit protection/polarity protectionoverload protection/Zener protection
Supply Voltage
10~30VDC
Resistance toAmbient Light
Anti environmental light interference 10000lux;Incandescent light interference 3000lux
Output indication
Green light: Power indicator, stable indicator(brightness decreases, signal weakens)
Ambient Temperature
-15°C~60°C
Ambient Humidity
35%~95% RH (without condensation)
Impulse Withstand
1000V/AC 50/60Hz 60S
Vibration Resistance
Complex amplitude 0.5mm 10~50Hz(2 hours in x, y, and z directions)
Protection Grade
IP67
Material
Shell ABS; Filter optical grade PMMA
Installation Method
Compositeinstallation
Weight
52g
Connection
2m PVC cable
