Model：FGU05-303N/FGU05-303P
Detection Distance：5mm
Operation Temperature:-10℃C~45°C
Working Humidity:20%~85%RH
Light Source: 940nmUnmodulated Light
Working Voltage: 5-24VDC士10%
Consumption Current:15mA Max
Load Current:50mAMaxatDC24V
Output Mode:N=NPN.NO&NC;P=PNP.NO&NC
Protection：IP66
Multiple Protection
Not only does it protect the product itself, but it alsoprotects the equipment from damage, making itsafer during work.
Short Circuit Protection
When there is a problem with a short circuit in the load,it not only protects itself but also protects the load frombeing burned out
Overload Protection
Automatically protect when the load is unstable orthere is a problem causing the current to increase
Polarity Protection
Reverse connection of the positive and negative polesof the product power cord will not burn the product
Dustproof
The integrated shell is dustproof and seamlessgreatlyincreasing the service life of the product.

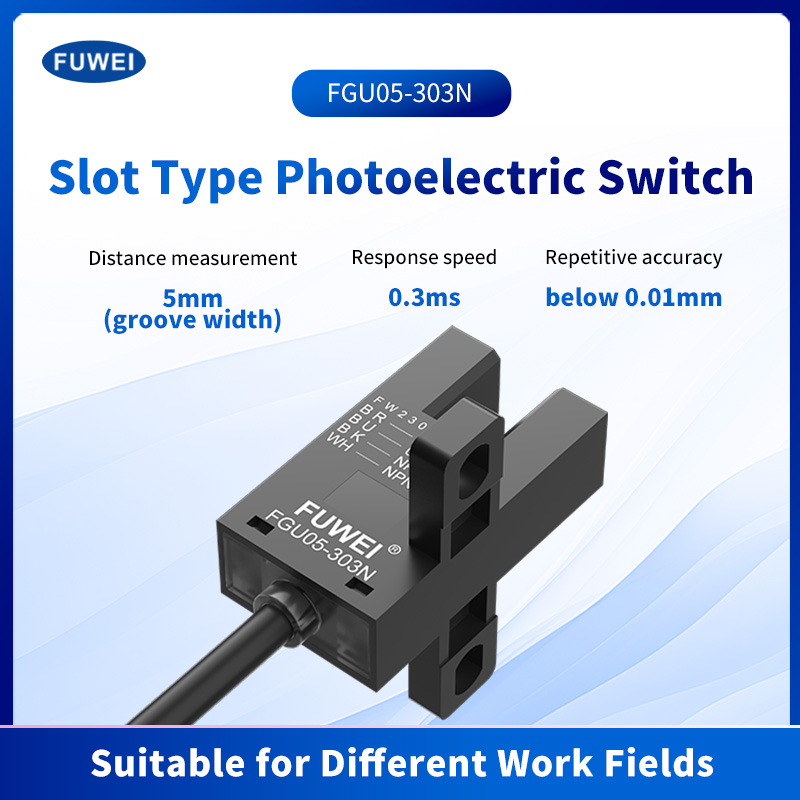

Fuwei Groove TypePhotoelectric Series
Compatible with Panasonic/Omron

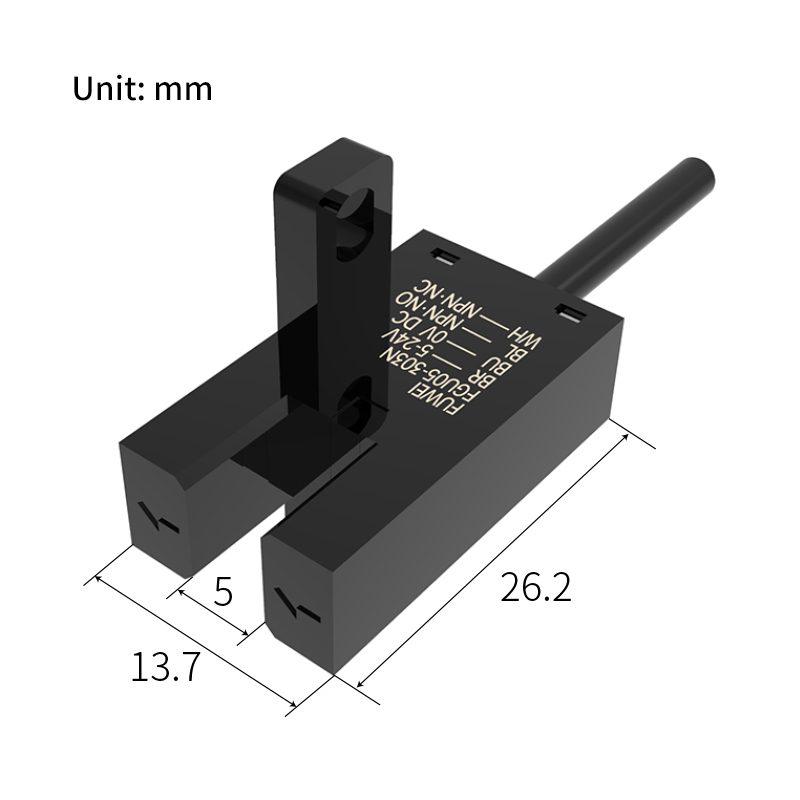

Product Size

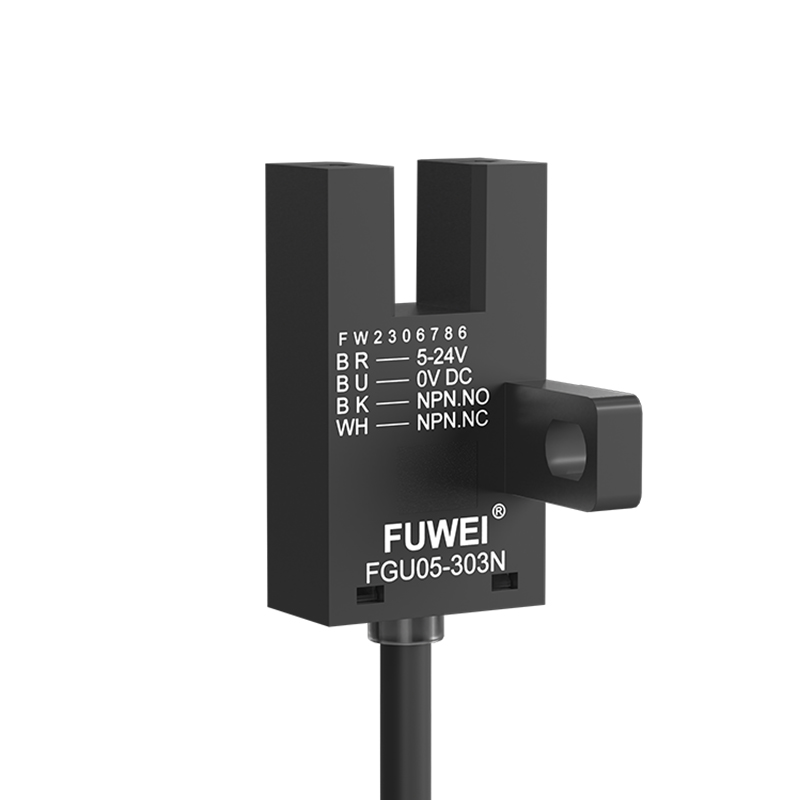

Wiring Guidelines
Specification
Distance
Voltage
Current
Circuit
Time
lsolation
Impedance
Dielectric
Strength
Operation
Temperature
Working
Humidity
Storage
lemperature
Work
Instructions
RedLED:Theindicatorlight for addingpoints is on,
and theindicatorlightis offduringoperation
Grade
Appearance
Material
Wiring
Method
Model
NPN
FGU05-302N
FGU05-303N
FGU05-304N
FGU05-305N
FGU05-306N
FGUO5-307N
PNP
FGU05-302P
FGU05-303P
FGU05-304P
FGU05-305P
FGU05-306P
FGU05-307P
Detection
5mm
Light Source
940nmUnmodulated Light
Working
5-24VDC士10%
Consumption
15mA Max
Load Current
50mAMaxatDC24V
Output Mode
N=NPN.NO&NC;P=PNP.NO&NC
Protection
Reversepowerconnection protection
Reaction
0.3ms Max
20mΩmin.(Dc500v)
AC1000V60Hzfor60sec.
-10℃C~45°C
20%~85%RH
-10°C~55°C/20%
Waterproof
IP66
PC
4-core cable diameter2.8mm
Weight
20g

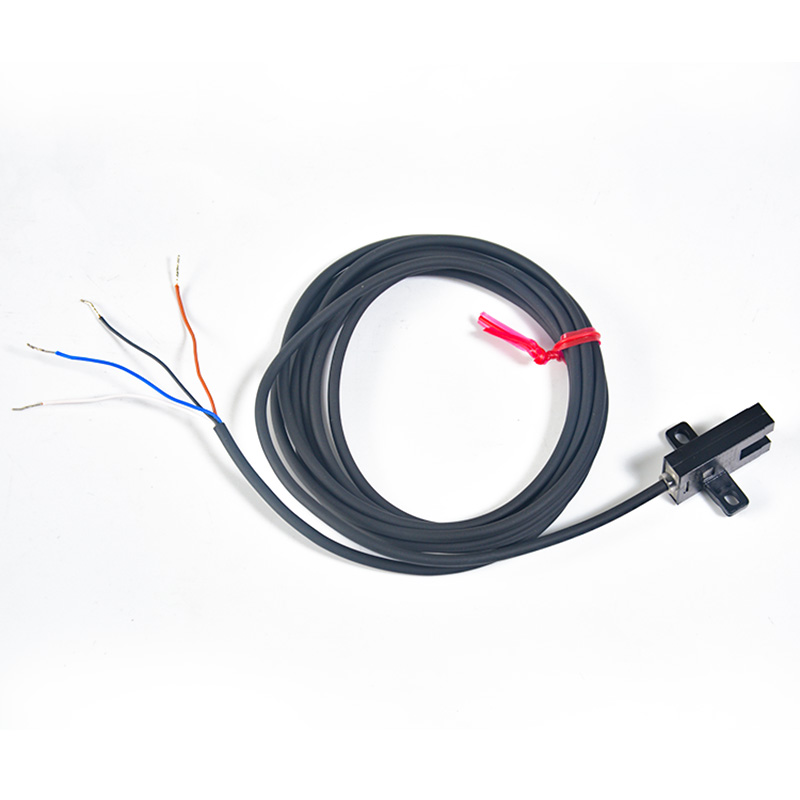

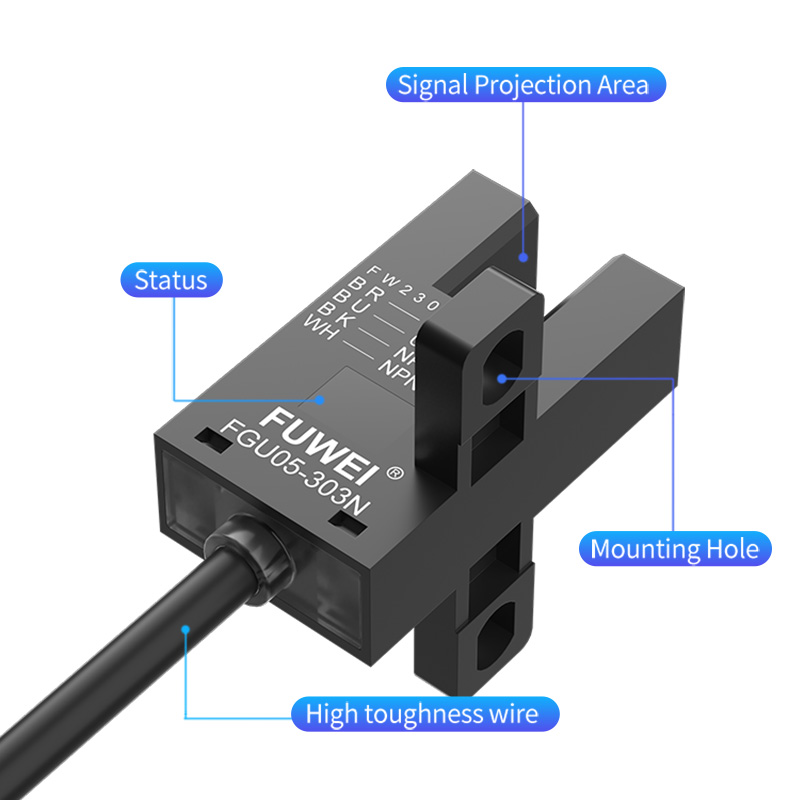

Product Display
