Performance Characteristics:
Capacitive principle, not easily affected by pipe material

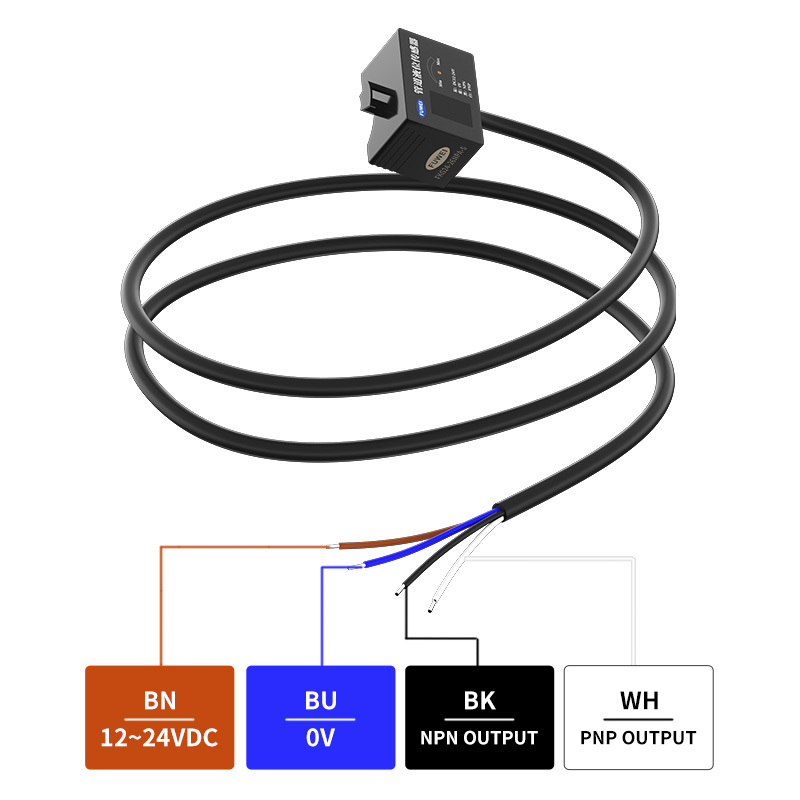

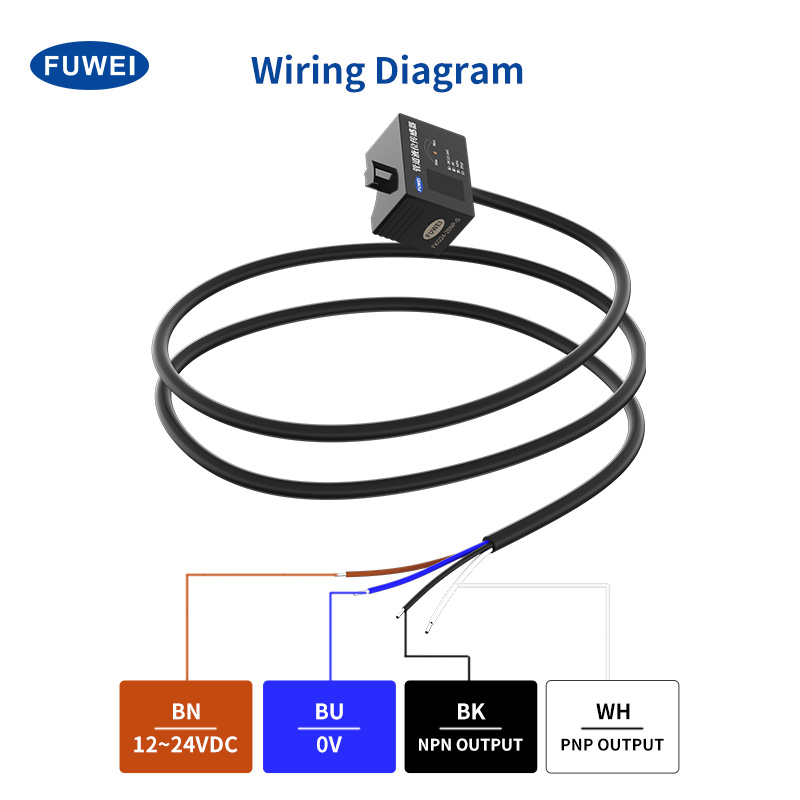

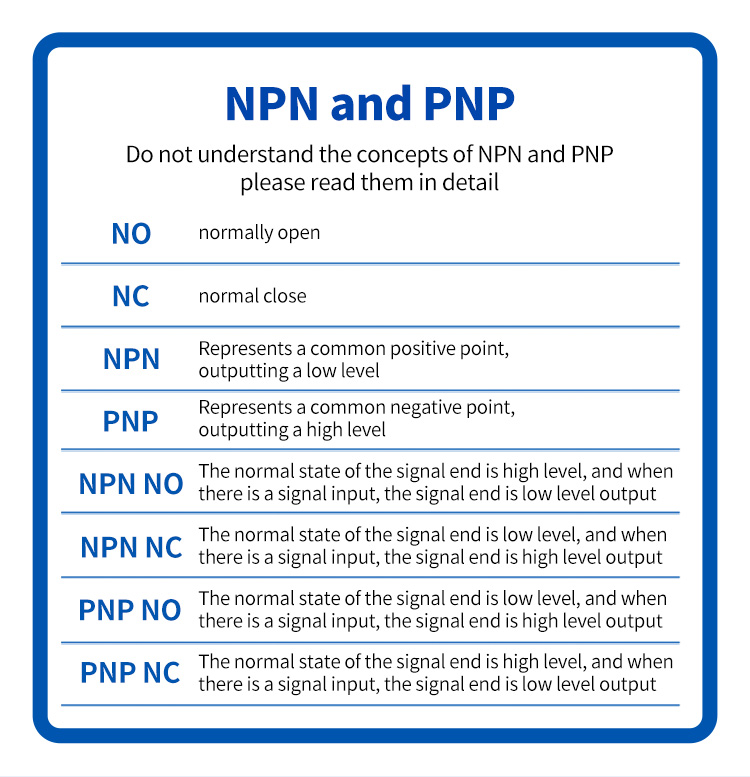

Two way output:NPN+PNP;

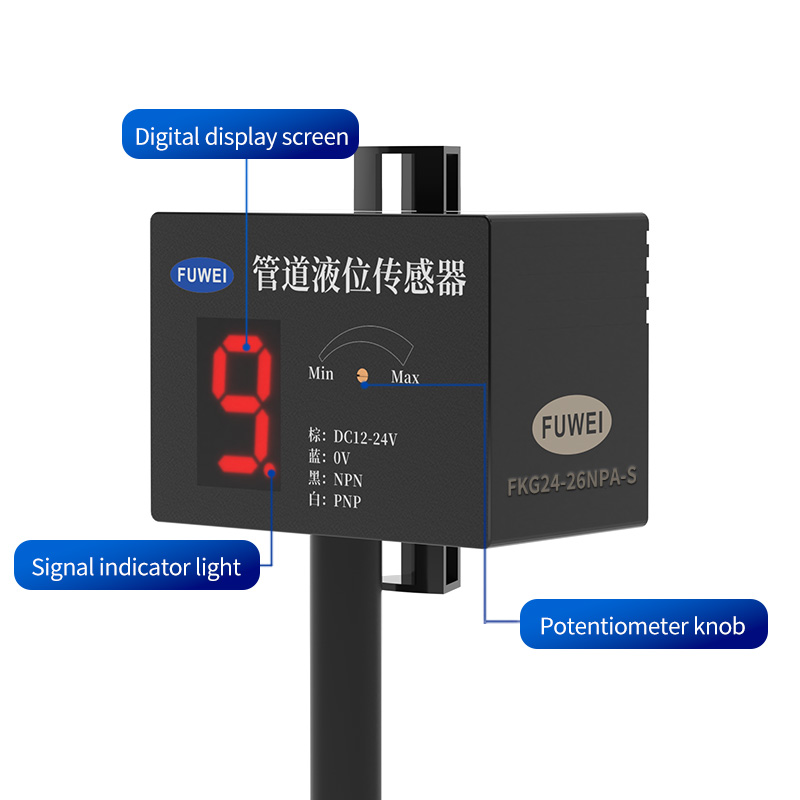

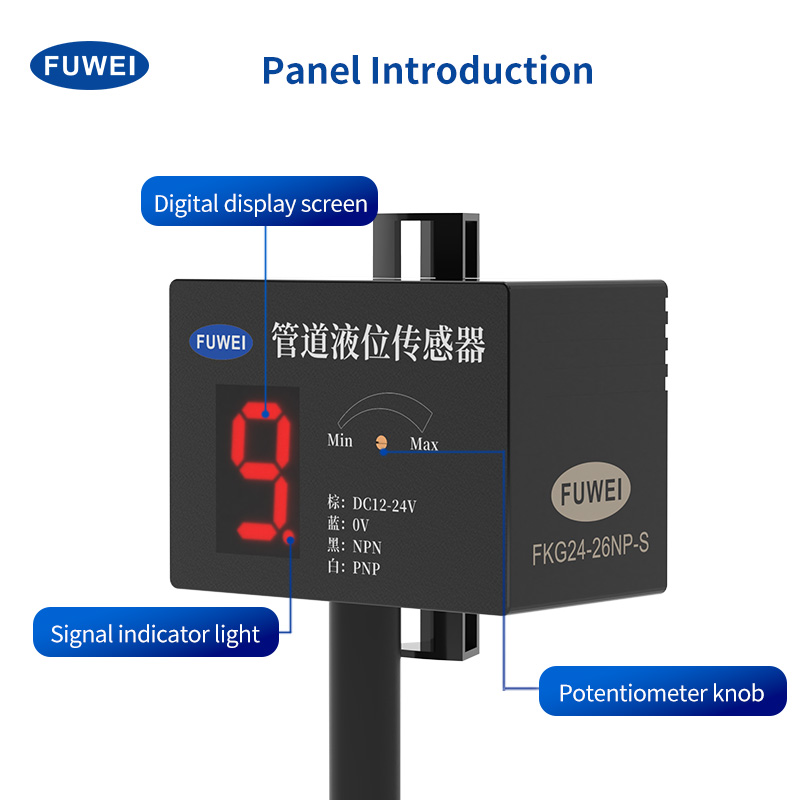

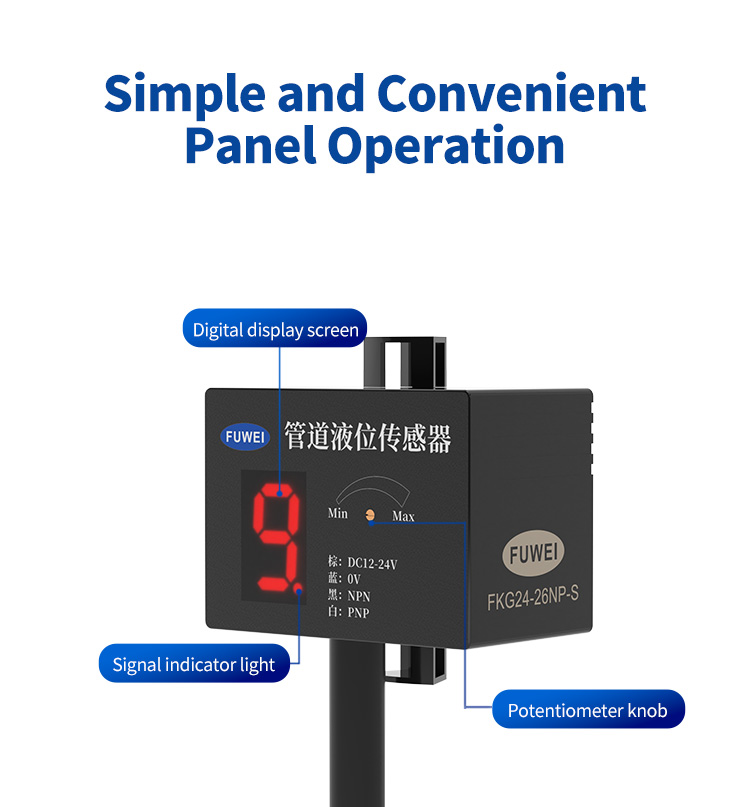

Adjustable sensitivity potentiometer, easy to operate;
High accuracy of liquid level control, repeatability less than 5% ;
No mechanical moving parts, high reliability;

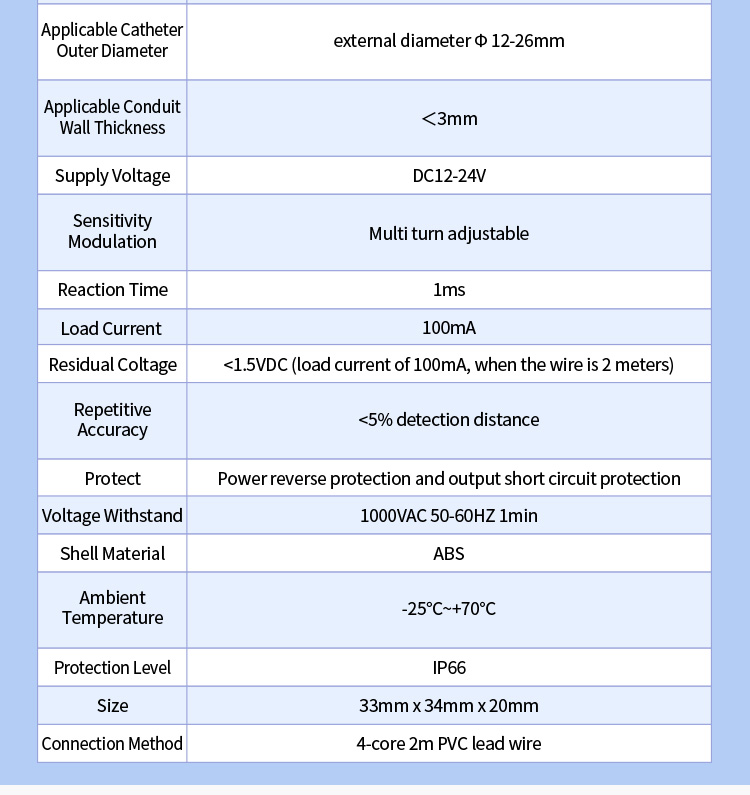

Specification
Digital display
FKG24-26NPA
Installation Method
Non-embedded
Model
NPN+PNP
Digital displayFKG24-13NPA
Output Mothod
NPN+PNP
Supply Voltage
DC12-24V

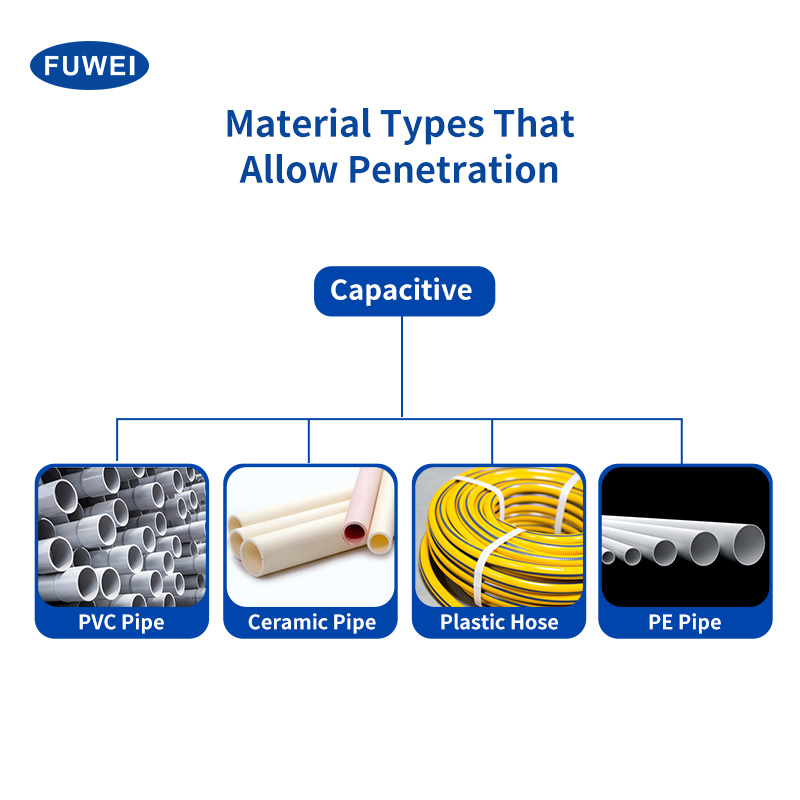

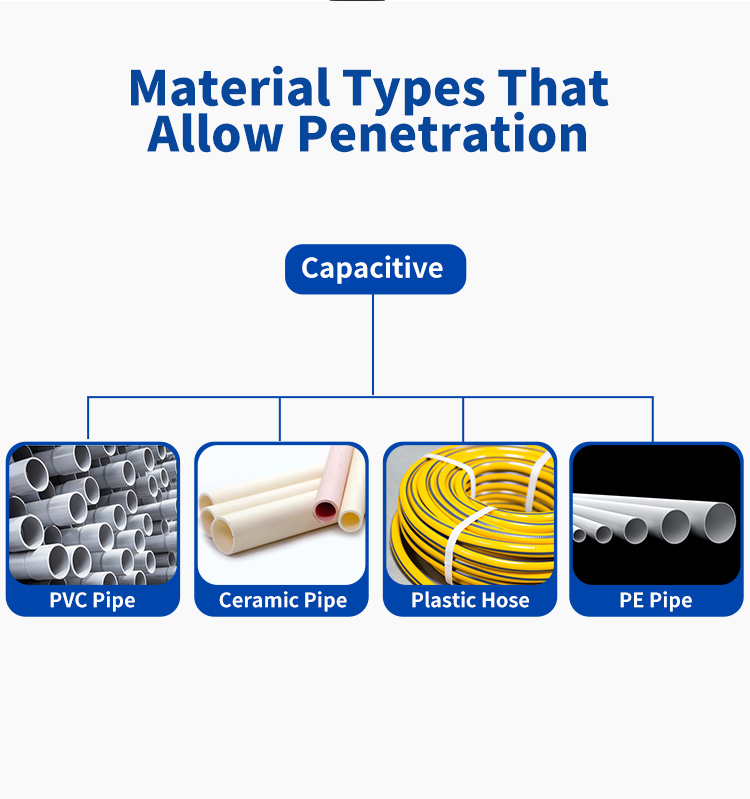

Applicable pipe material
glass tube; PVC tube, ceramic tube, acrylic tube,rubber tube; PE tube and other non-metallic materials

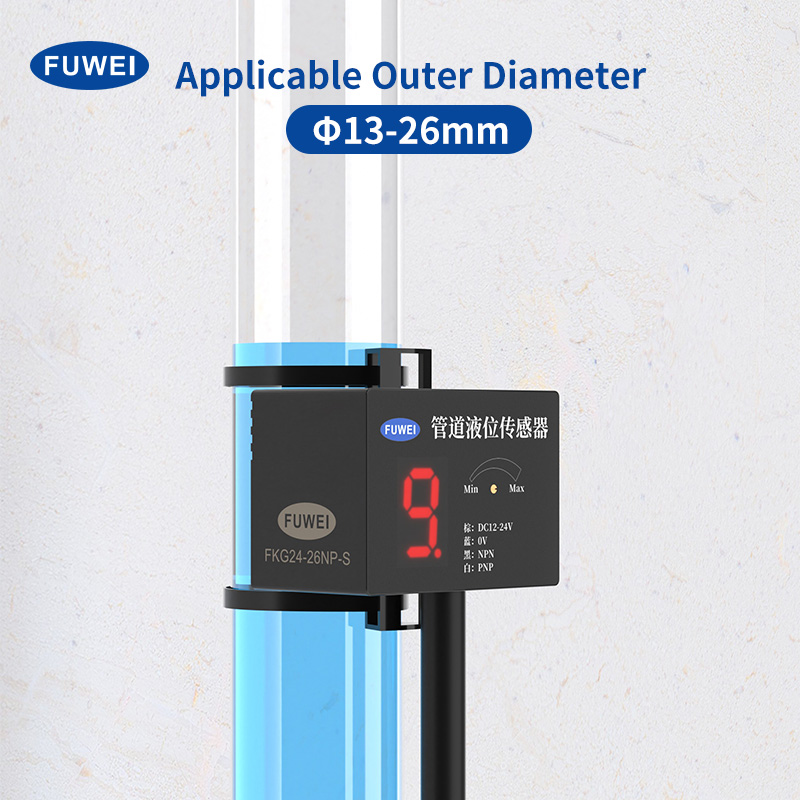

Applicable pipe outer diameter
Outer diameter: $6-Ф13mm
Outer diameter: 中13-中26mm
Applicable pipe wall thickness
Wall thickness<2mm
Wall thickness<3mm
Measurement Range
13mm
26mm
Sensitivity Adjustment
Multi-turn adjustable
Response Time
1ms
Load Current
100mA
Residual Voltage
<1.5VDC (Load current 100mA, wireway 2m)
Repeat Accuracy
<5%
Protect
Battery reverse connect protect, output short circuit protection
Voltage Withstand
1000VAC 50-60HZ 1min
Case Material
ABS plastic
Operating TempInternational
-20~70°C
Protection
IP66

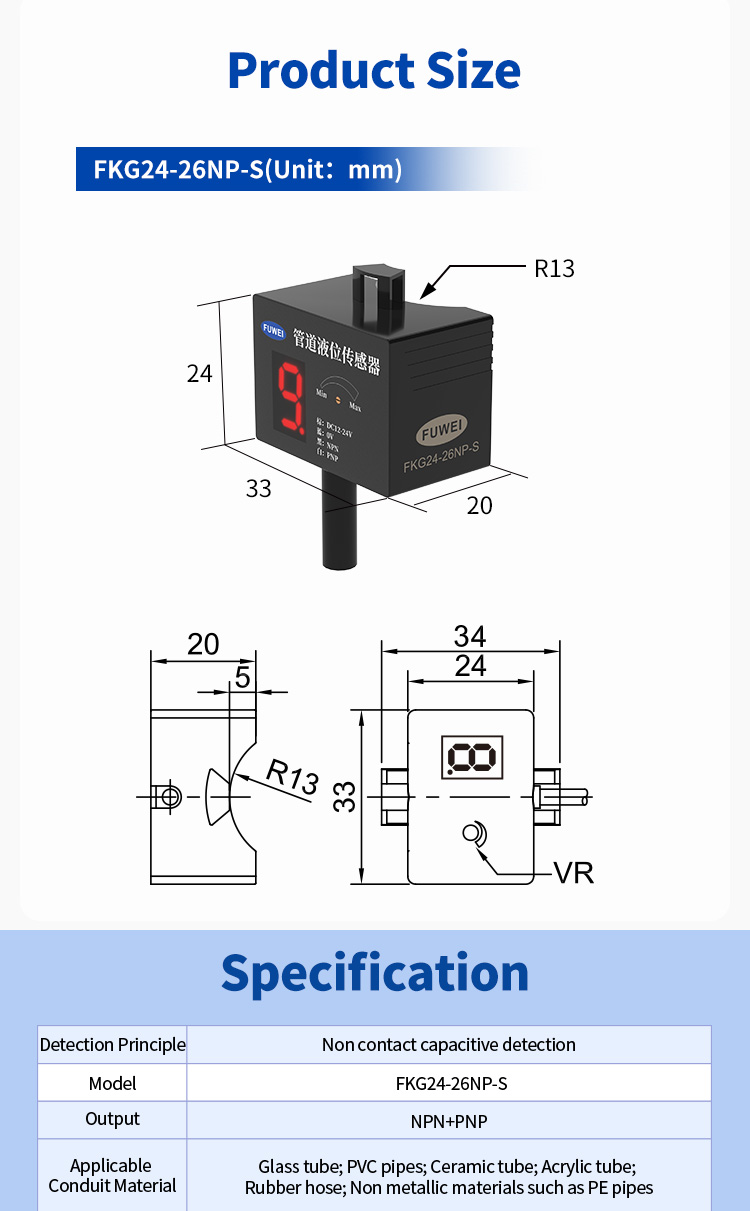

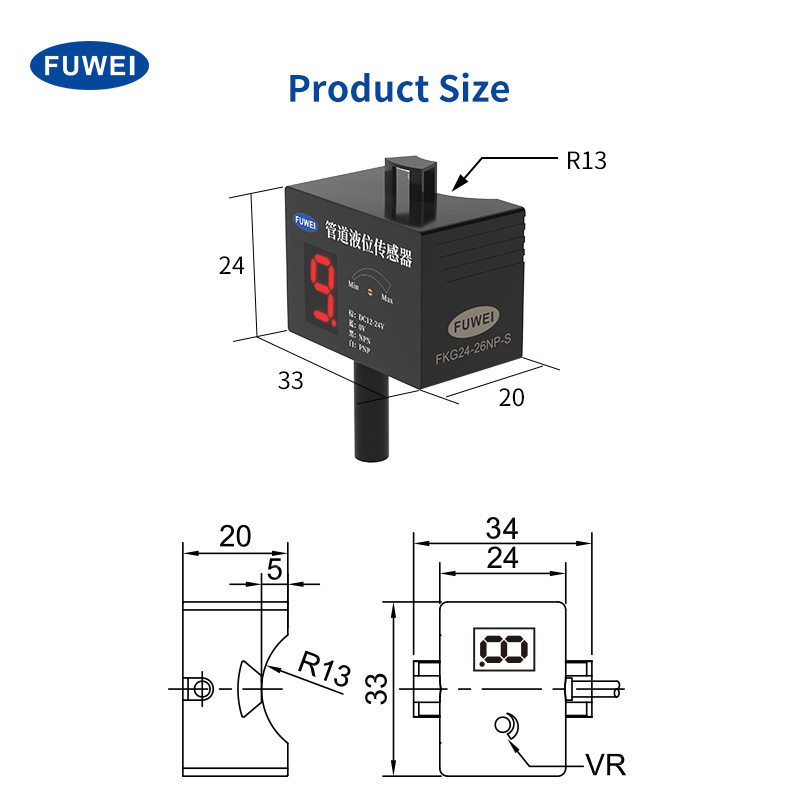

Dimension
L*W*H 43*24*20mm
L*W*H 33*34*20mm

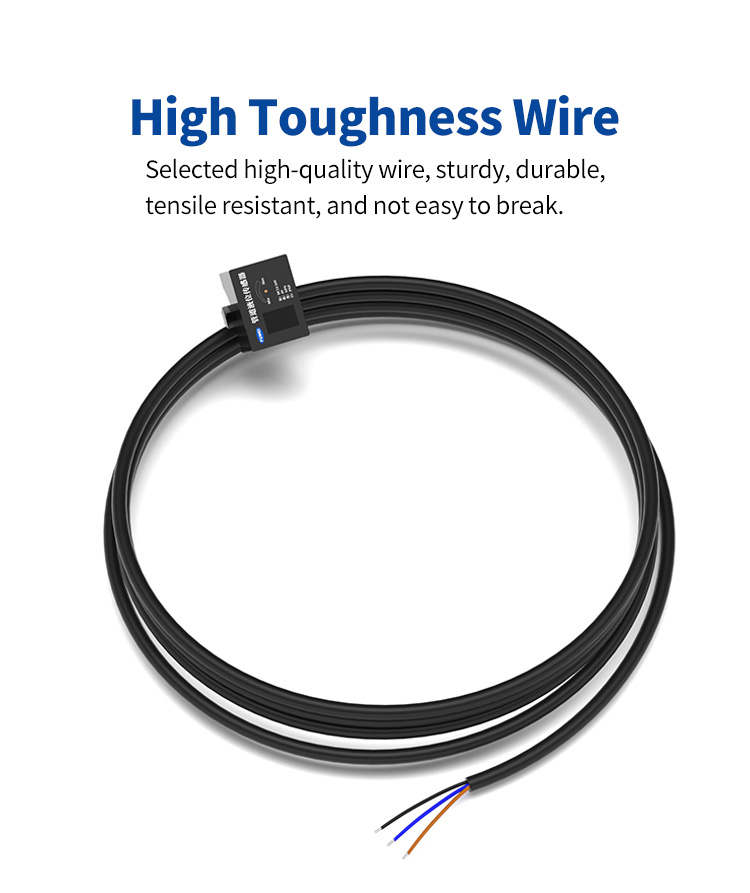

Connection Node

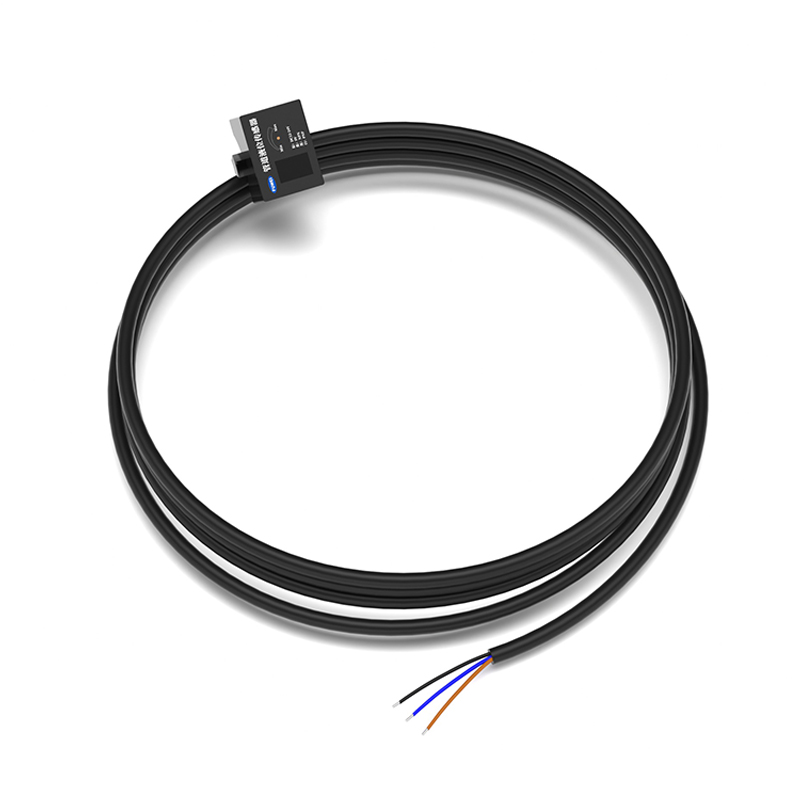

4 PIN 2m PVC cable
