FW-30P  Fiber Sensor
  • FW-30P  Fiber SensorFW-30P  Fiber Sensor
  • FW-30P  Fiber SensorFW-30P  Fiber Sensor
  • FW-30P  Fiber SensorFW-30P  Fiber Sensor

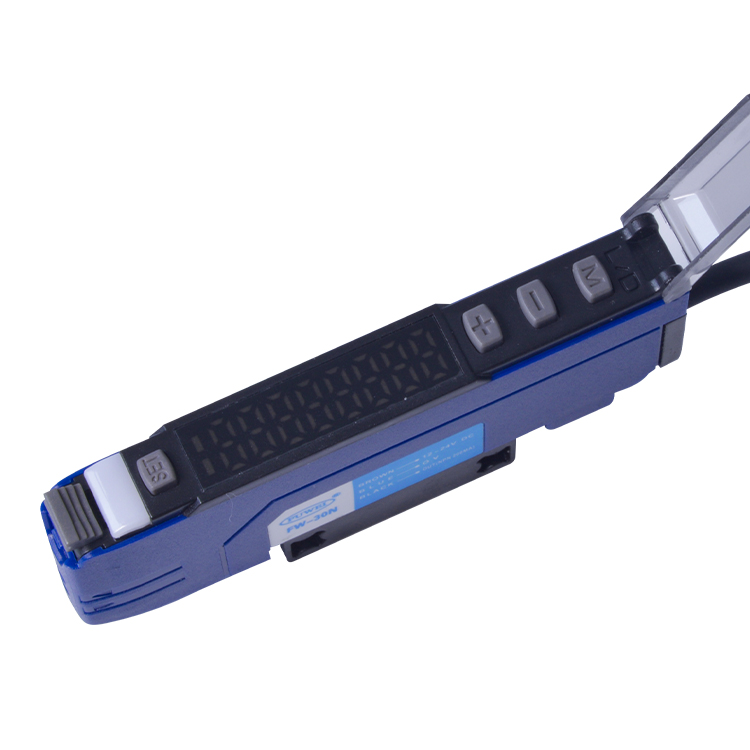

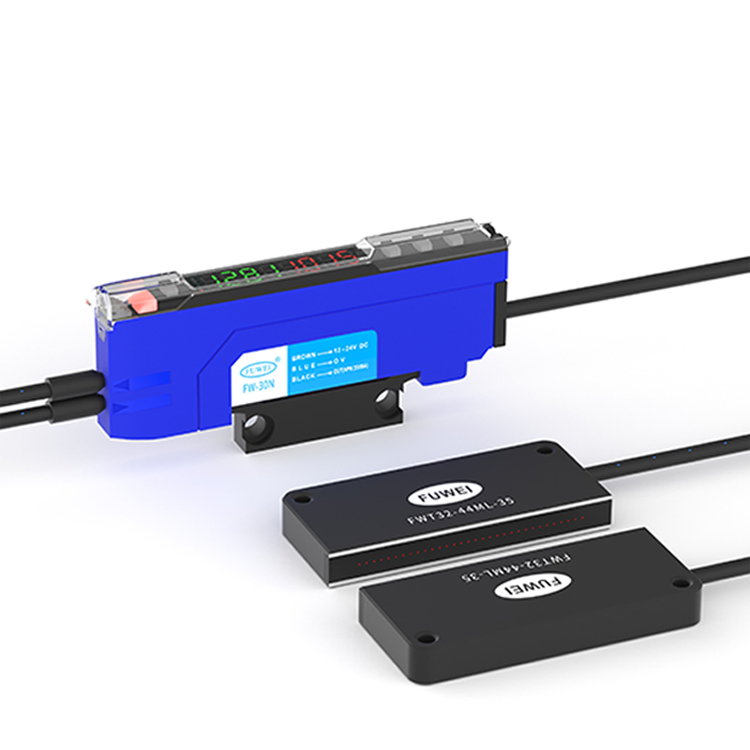

FW-30P Fiber Sensor

Model:FW-30N

8-digit digital display, intuitive and easy to understand; Four gears response time adjustable, the fastest 25us; Delay 0-9999ms control adjustment function; Light intensity attenuation function can be infinitely adjusted: 1 weakest, 100 strongest; l with interval detection function and automatic light compensation function, to meet the special occasions. With interval detection function and automatic light compensation function, to meet the special occasion applications.

Performance features:

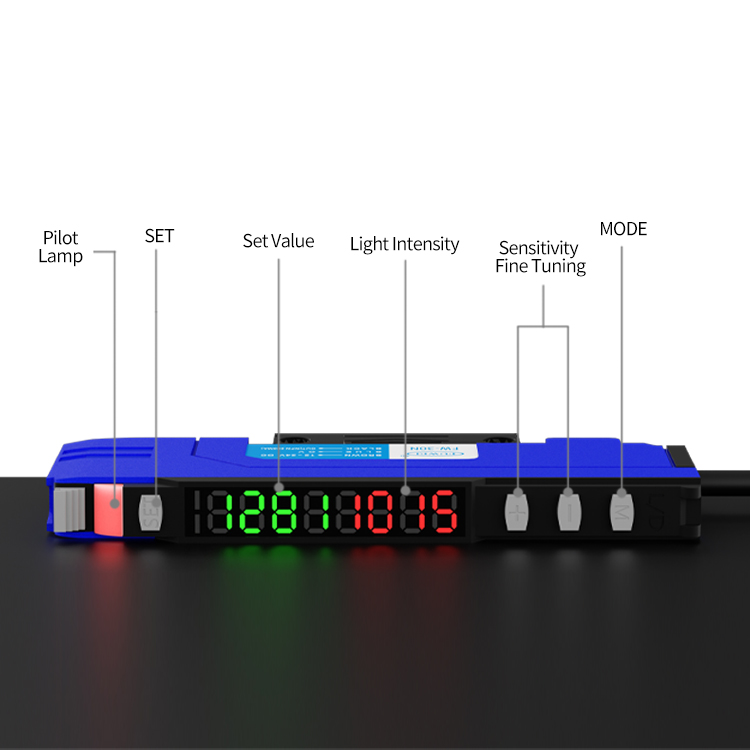

8-digit digital display, intuitive and easy to understand;

Four gears response time adjustable, the fastest 25us;

Delay 0-9999ms control adjustment function;

Light intensity attenuation function can be infinitely adjusted: 1 weakest, 100 strongest; l with interval detection function and automatic light compensation function, to meet the special occasions.

With interval detection function and automatic light compensation function, to meet the special occasion applications.












Parameter specifications

Brand
FUWEI
Product Name
Fiber Optic Amplifier
Product number
FW-30N
FW-30P
Output Mode
NPN
PNP

Detection

Distance

Diffuse reflection 200mm

correlation 1200mm

supply Voltage
12-24VDC
Sensitivity
Key adjustment

Consumption

Current

<20mA
Product Size
71.8x30.3x10.5mm
Response Time
HSP:25μS; FINE:50μS; SUPR:100μS; MEGA:200μS
