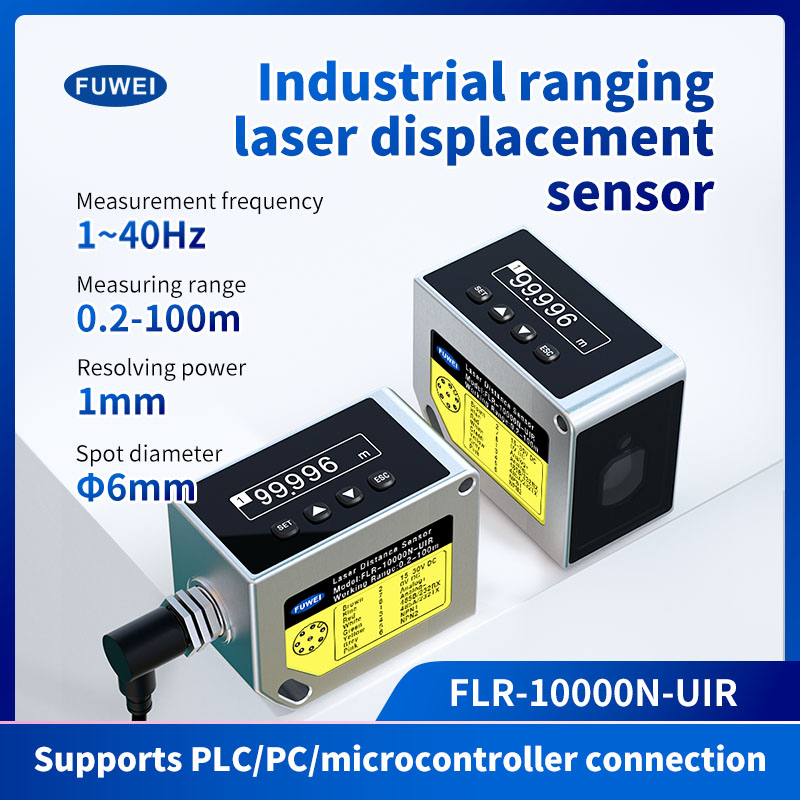

The FUWEI FLR-10000N-UIR Industrial equipment ranging Laser Displacement Sensor,
a product of China leading manufacturer and supplier,
offers competitive pricing while maintaining exceptional quality,
ensuring accurate and reliable measurements for various industrial applications.
|
Specifications |
|
|
Model |
FLR-10000N-UIR |
|

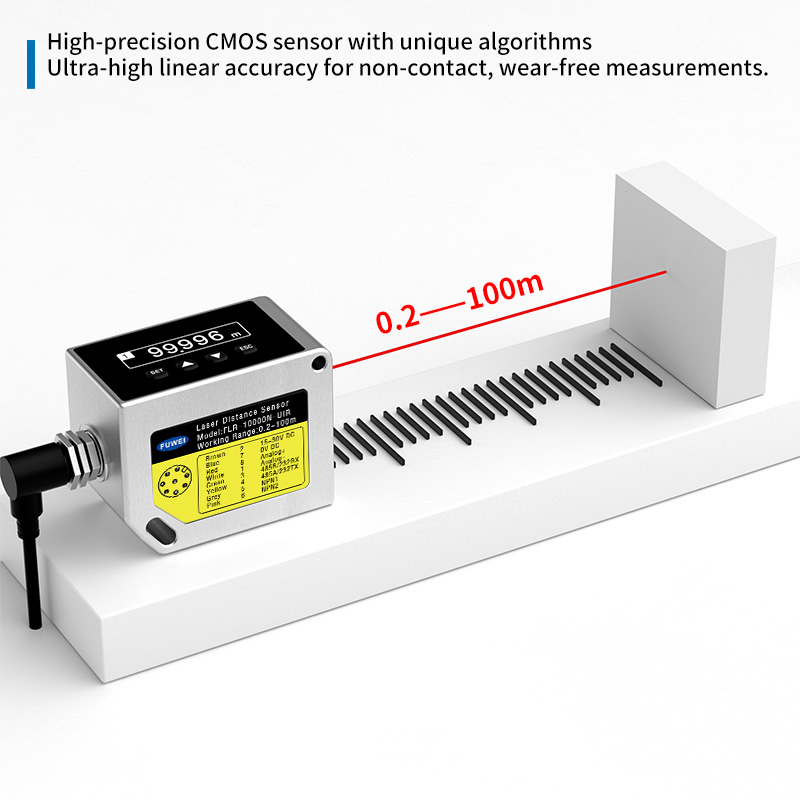

Measure distances |
0.2m-100m |
|
Output |
RS485/232+analog voltage currentoutput+NPN output |
|
Voltage/current output |
0~5V/0~10V/4~20mA/0~20mA/0~24mA output can be set |
|
Voltage output error |
0.2%+0.5mV |
|
Current output error |
0.2%+0.005mA |
|

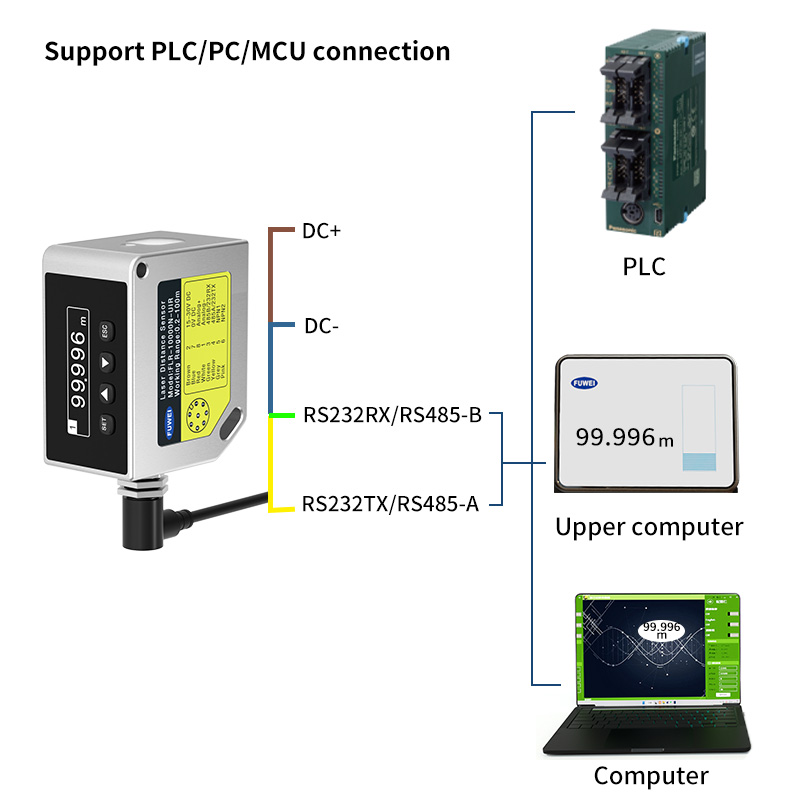

Communication interface |
RS232/RS485(switchable) |
|
Measurement frequency |
1Hz-40Hz |
|
Laser type |
Class IⅡ,660±15nm,≤1mW |
|
Measure resolution |
1mm |
|
Measurement error |
±(2mm+d*1/10,000） |
|
Indicator light |
Red laser |
|
Spot size |
@1m O6mm;@10m O8mm;@20m 012mm |
|

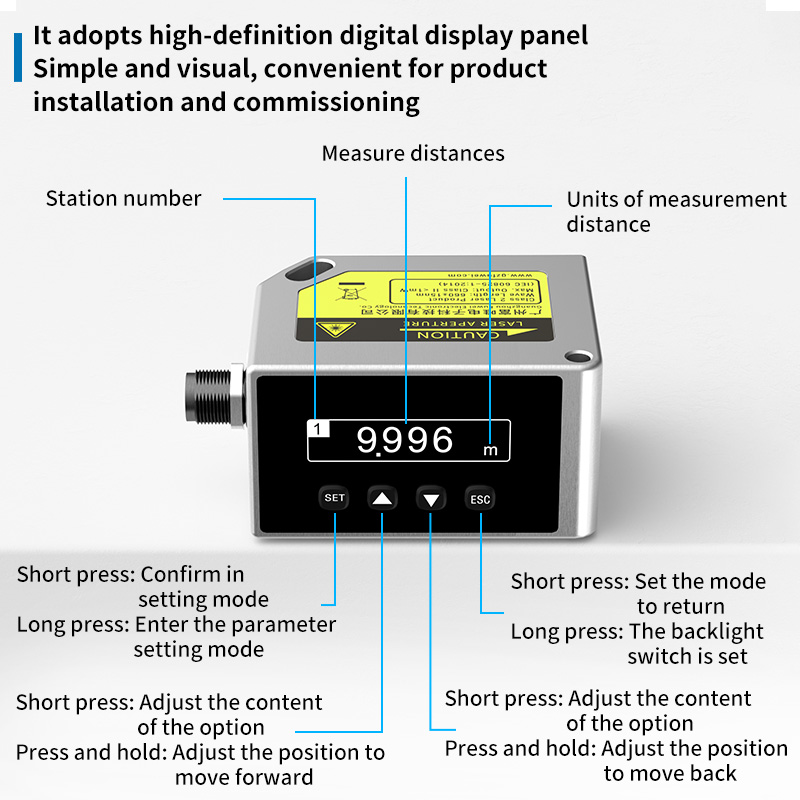

Display screen |
128x32 dot matrix screen |
|
Backlight off time |
30 minutes (can be set to normally open) |
|
Mode of operation |
Closed measurement,continuous measurement |
|
Transistorswitching output |
2 channels(not more than DC36V0.5A) |
|
Power supply |
DC15~30V |
|
Power consumption |
<3.0W |
|
Ingress protection |
IP67 |
|
Housing material |
Die-cast zinc alloy |
|
Operating temperature |
10℃~50℃ |
|
Store at temperature and humidity |
-20℃~60℃,20%~85%RH |
|
Overheatprotection |
Thefuselage temperature is above 70℃to close the measurement and below 70℃to recover |
|

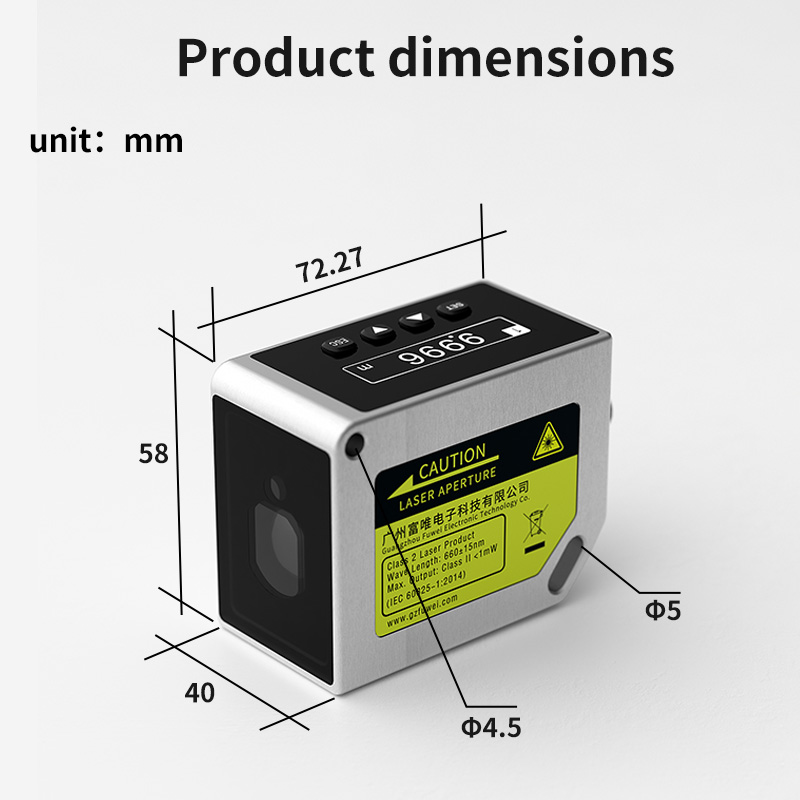

Fuselage size |
86.45x40x58mm (with connector) |
