Performance characteristics:
Perfect self-test function, when the photoelectric safety protection device failure to ensure that not to send the wrong signal to the controlled equipment. l
Adopt line synchronization technology with strong anti-interference ability. l
Photoelectric cycle self-test to enhance the safety of equipment;
SMD chip design imported high-end components
TECHNICAL PARAMETERS
|
Product type |
FGM-SN series |
|
Power supply |
DC10V-30V |
|
Capacity |
<5W |
|
Beam space |
10mm,20mm,40mm |
|
Resolution |
20mm，30mm,50mm |
|
Beams |
10mmBeam gap:08,12.16.....496 |
|

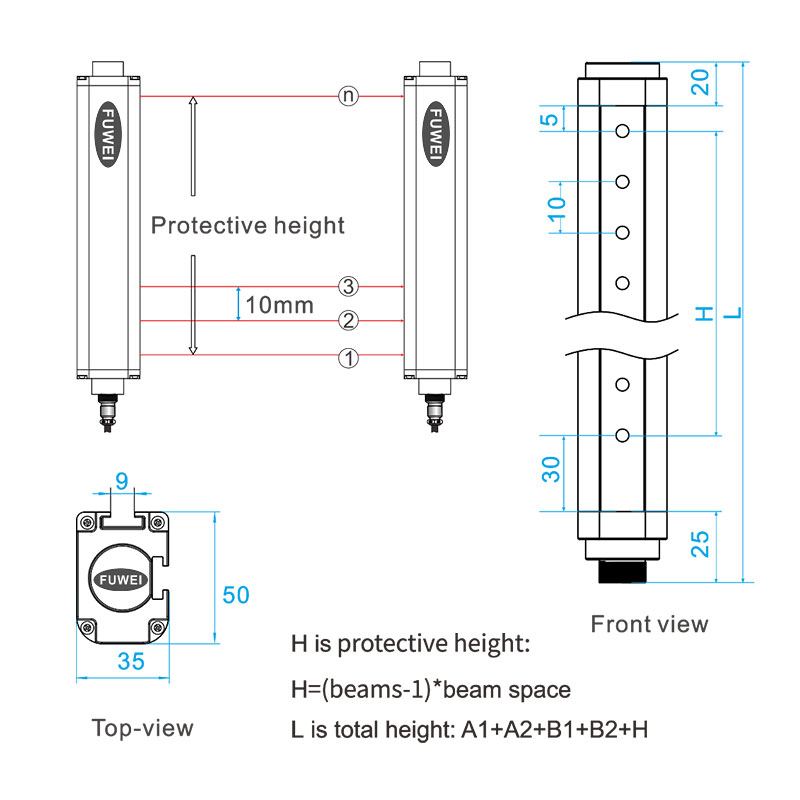

Protective height |
Protective height=(N-1)"beamgap,N is beam quantity. |
|
Wave length |
940nm |
|
Response time |
Response time=(N*0.1ms) +0,4ms(N: number of optical axes) |
|
Type of output(0ssD) |
PNP/NPN semiconductors,current<200mA,residual voltage: 1V max. leakage current: 1mA max.(Except voltage influenced by lengthen wire). |
|
Protective circuit |
Overload voltage protection, power supply reversepolarity protection,over current protection |
|
Sensing distance |
0.1~0.5m,0.1~2m,0,1~5m,0.1~10m,0.1~20m,0.1~30m(lf reflective lightenvironment, please let us know in advanced) |
|
Anti-optical interference |
10000 Lux(angle>5°) |
|
Sensing method |
Through-beam type |
|
Synchronization |
wire synchronization |
|
Enclosure material |
Aluminum alloy |
|
Enclosure rating |
IP65 |
|
Housing cross-section |
35*50mm |
|
Vibration resistance |
10Hz...55Hz,double amplitude each inX, Y and Z directions for 20 times |
|
Ambient operating temperature |
-10°C~55°C(with no freezing) |
|
Storage temperature |
-30°C-70°C(with no freezing) |
|
Ambient operating humidity |
when temperature is 20°C, humidity max 85% |
