Performance Characteristics:
Sensitivity potentiometer adjustable detection distance for a wide range of applications, can detect all types of materials: metals, plastics, liquids, etc. Protection class IP67, excellent resistance to water and oil performance
Specification:
|
Installation method |
Non buried |
||
|

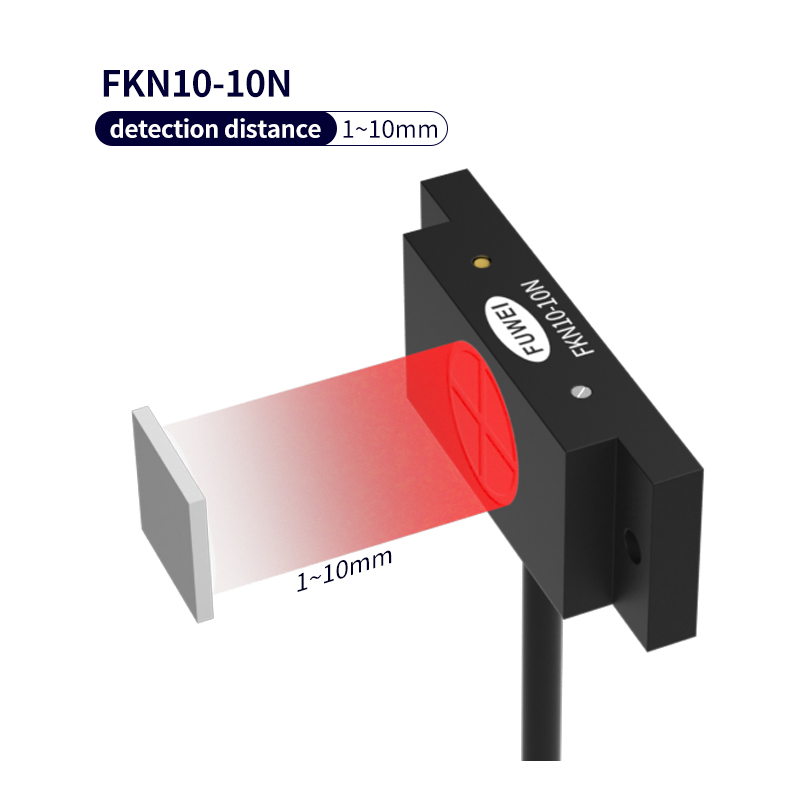

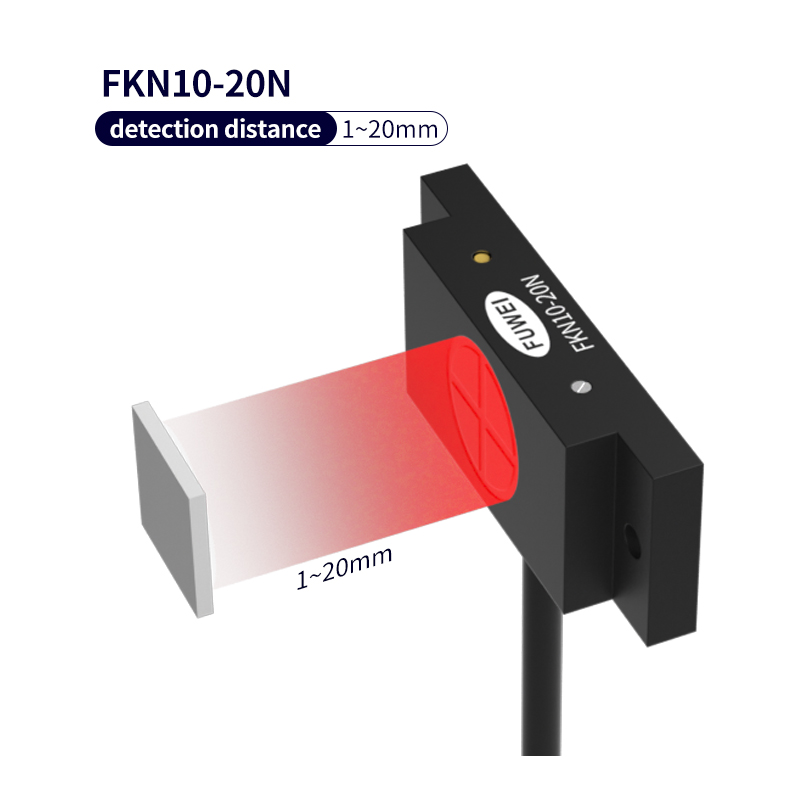

detection distance |
10mm |
20mm |
|
|
model |
NPN.NO |
FKN10-10N |
FKN10-20N |
|
NPN.NC |
FKN10-10NA |
FKN10-20NA |
|
|
PNP.NO |
FKN10-10P |
FKN10-20P |
|
|
PNP.NC |
FKN10-10PA |
FKN10-20PA |
|
|
supply voltage |
10~30VDC |
||
|
light source |
<士20% Sr |
||
|
LOAD |
<200mA |
||
|
pressure drop |
<2.5V |
||
|
Consumption current |
<15mA |
||
|
Return range |
3~20% |
||
|
repeatability |
<3% |
||
|
response time |
30Hz |
||
|
Output indication |
red LED |
||
|
Built in protection |
Short circuit protection /Overload protectionPolarity Protection/10-30Vwide voltage protection |
||
|
impulse withstand voltage |
1000V/AC 50/60Hz 60s |
||
|
ambient temperature |
-10~+55°C |
||
|
ambient humidity |
35~95% |
||
|
protection grade |
IP67 |
||
|
Shell material |
PBT |
||
|

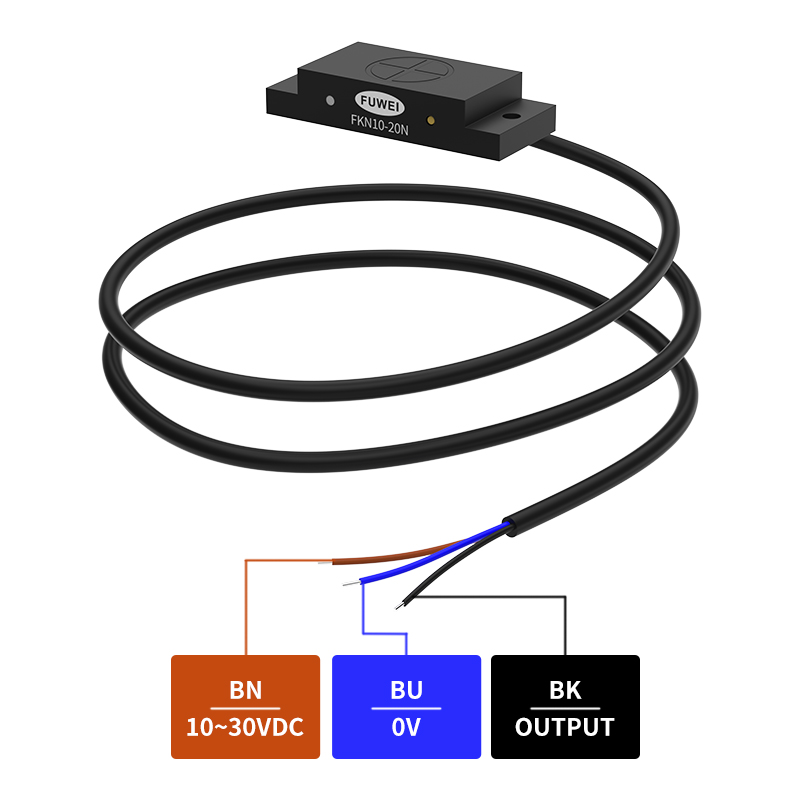

Connection method |
2m PVC cable |
||
