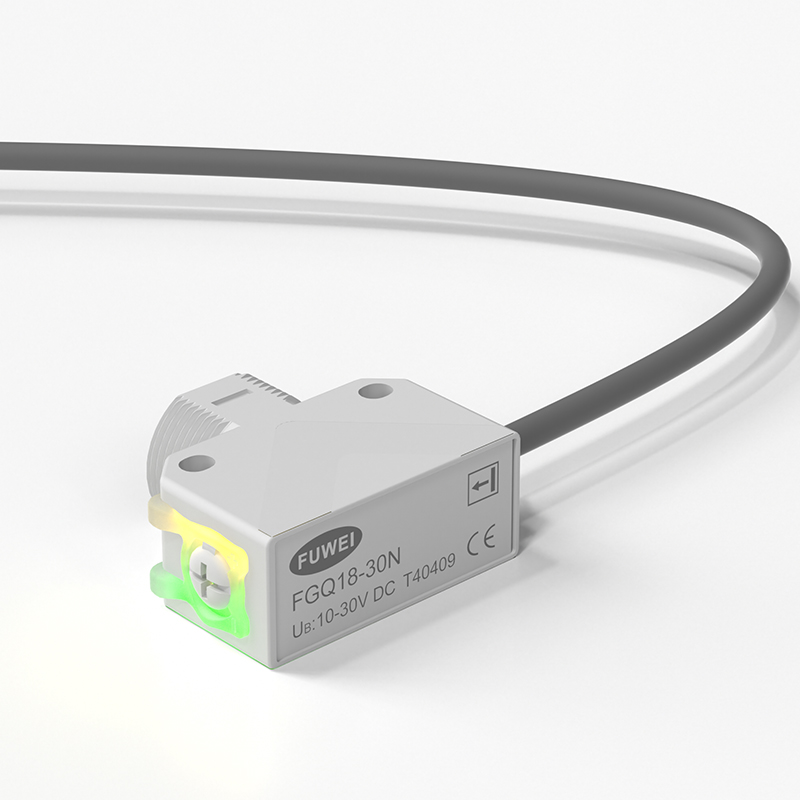

FUWEI Mini photoelectric sensor FGQ18-30N Diffuse Reflective Front Photoelectric Sensor is a product that embodies the best of China's manufacturing prowess. With its superior quality, reliable performance, and customization options, it is a trusted choice for your next photoelectric sensor project. Trust Fuwei for excellence in quality, reliability, and customization.
Produced in a state-of-the-art factory equipped with the latest technology, the FGQ18-30N sensor undergoes strict quality control measures to ensure its unwavering quality. From the selection of premium materials to the precision of each manufacturing step, we ensure that only the finest components are used to craft this sensor.

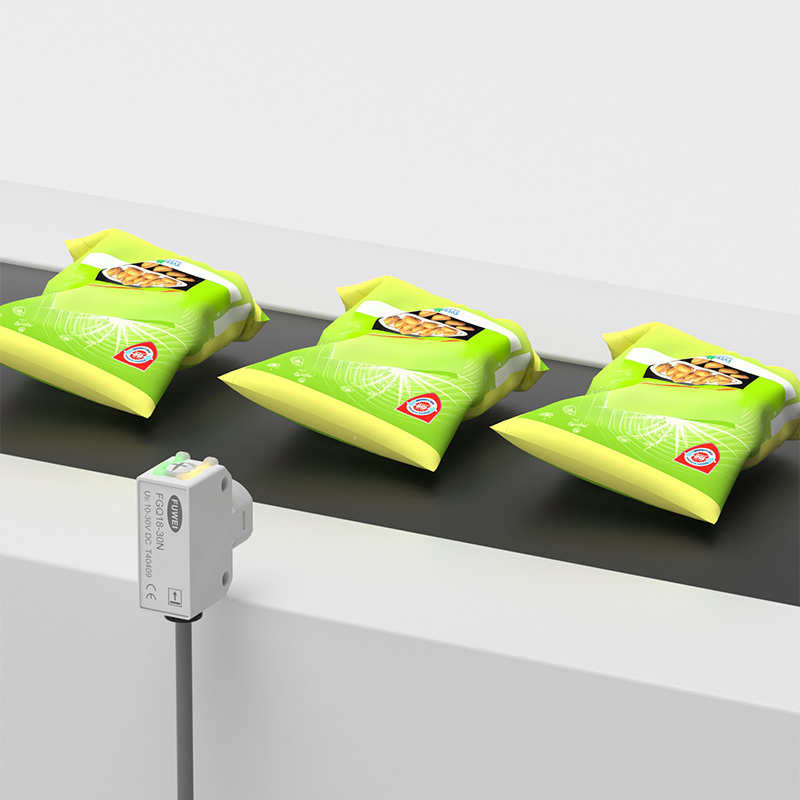

The diffuse reflective design of the FGQ18-30N sensor allows it to detect objects by measuring the reflected light from their surfaces. This feature makes it suitable for a wide range of applications, including conveyor belts, assembly lines, and packaging machinery, where precise and reliable detection is crucial.
|
Detection |
Smal light point diffuse reflection type |
|
|
Model |
FGQ18-30N |
FGQ18-30P |
|
Output |
NPN.NO/NC |
PNP.NO/NC |
|

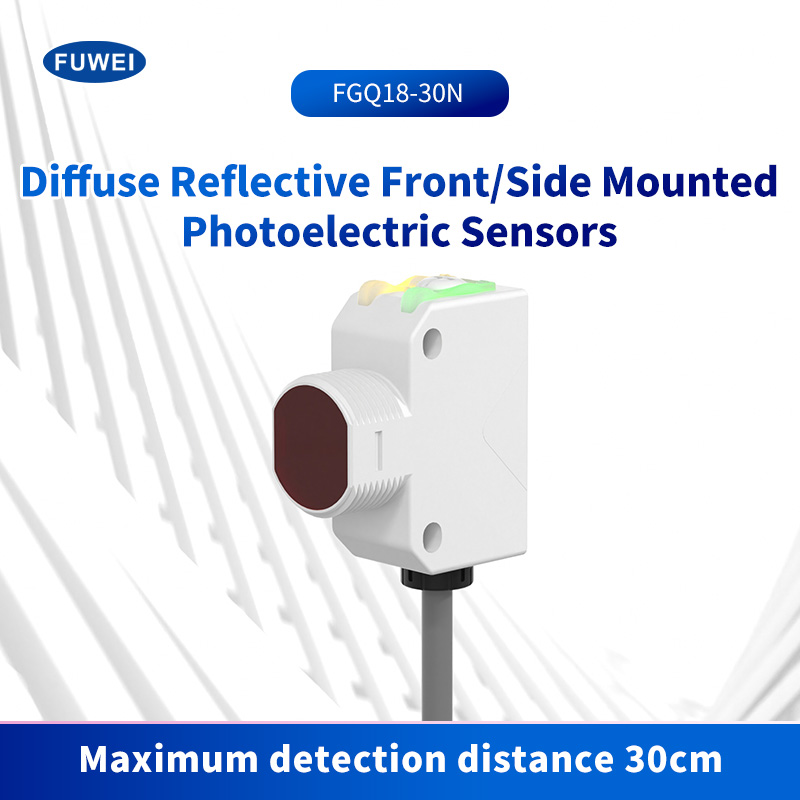

Detection Distance |
30cm |
|
|
Light Source |
Infrared LED 660nm |
|
|
Load Current |
≤100mA |
|
|
Residual Voltage |
≤1V |
|
|

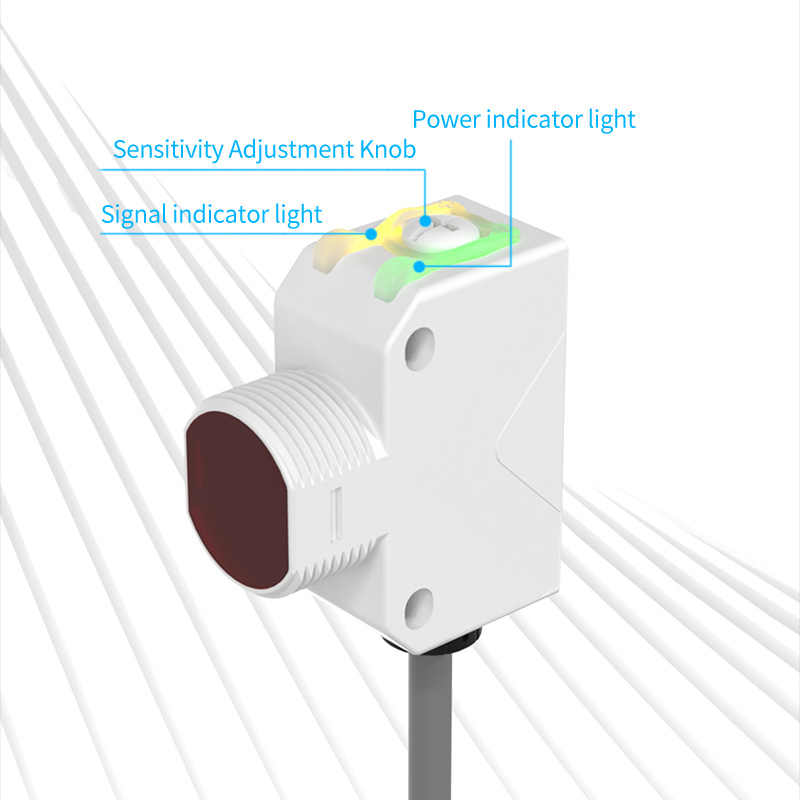

Distance Adjustment |
Single turn potentiometer |
|
|
Response Time |
≤1ms |
|
|

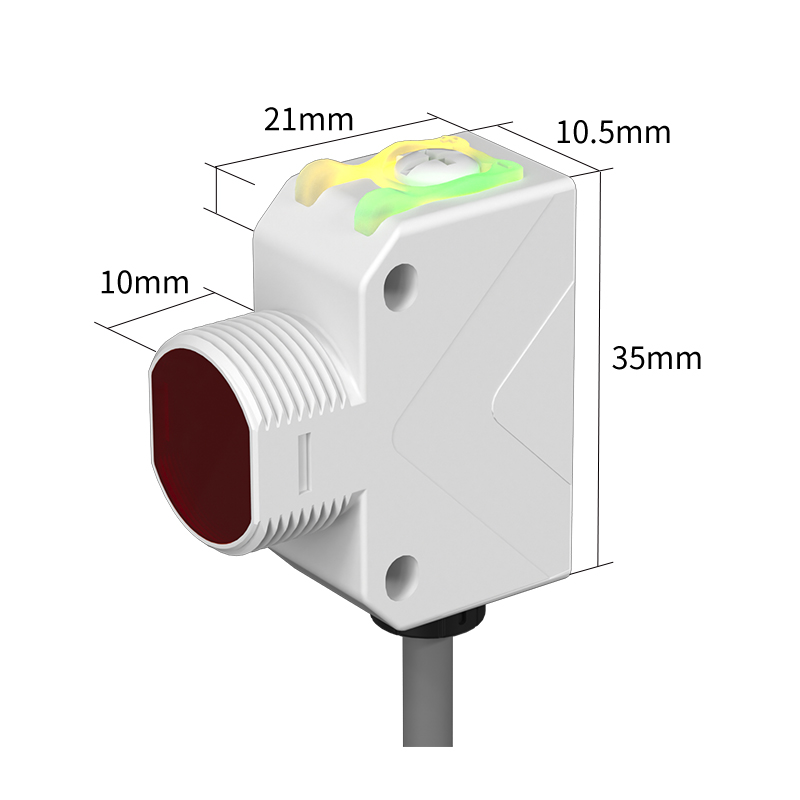

Size |
31x35x15mm |
|
|
Protection Circuit |
Short circuit protection/polarity protection
overload protection/Zener protection |
|
|
Supply Voltage |
10~30VDC |
|
|
Resistance to Ambient Light |
Anti environmental lightinterference 10000lux;
Incandescent lightinterference 3000lux |
|
|
OutputIndication |
Green light:Power indicator,stable indicator
(brightness decreases,signalweakens) |
|
|
Ambient Temperature |
-15℃~60°℃ |
|
|
AmbientHumidity |
35%~95%RH(without condensation) |
|
|
Impulse Withstand Voltage |
1000V/AC50/60Hz60s |
|
|
Insuation Impedance |
≥50m0500VDC |
|
|
Vibration Resistance |
Complex amplitude0.5mm 10~50Hz
(2 hours inx,y,and zdirections) |
|
|
Protection Grade |
IP67 |
|
|
Material |
ShellABS;Filter optical grade PMMA |
|
|

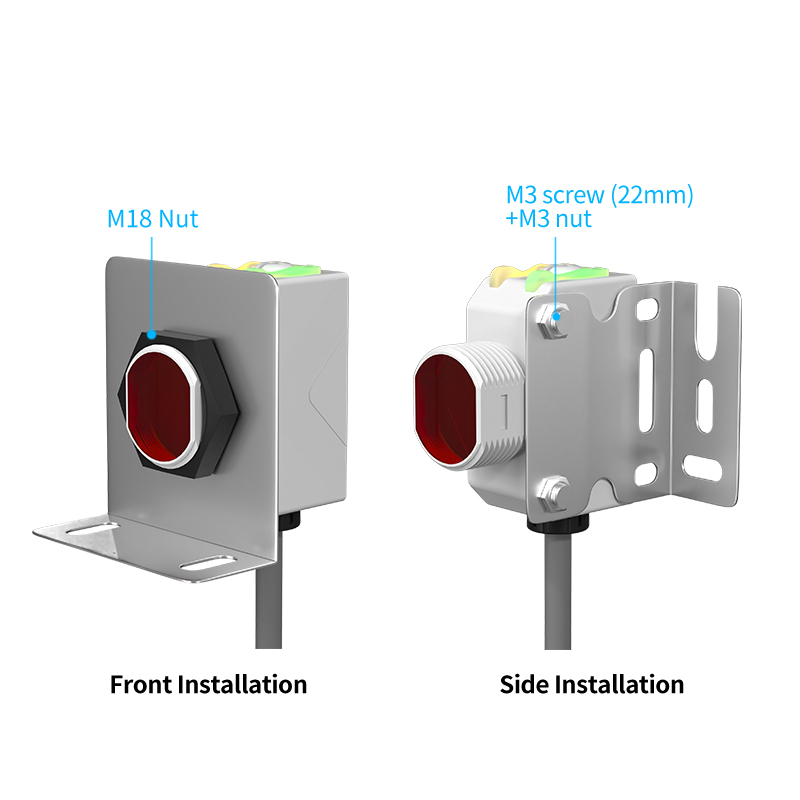

Installation Method |
Compositeinstallation |
|
|
Weight |
52g |
|
|
Connection |
2m PVC cable |
|
