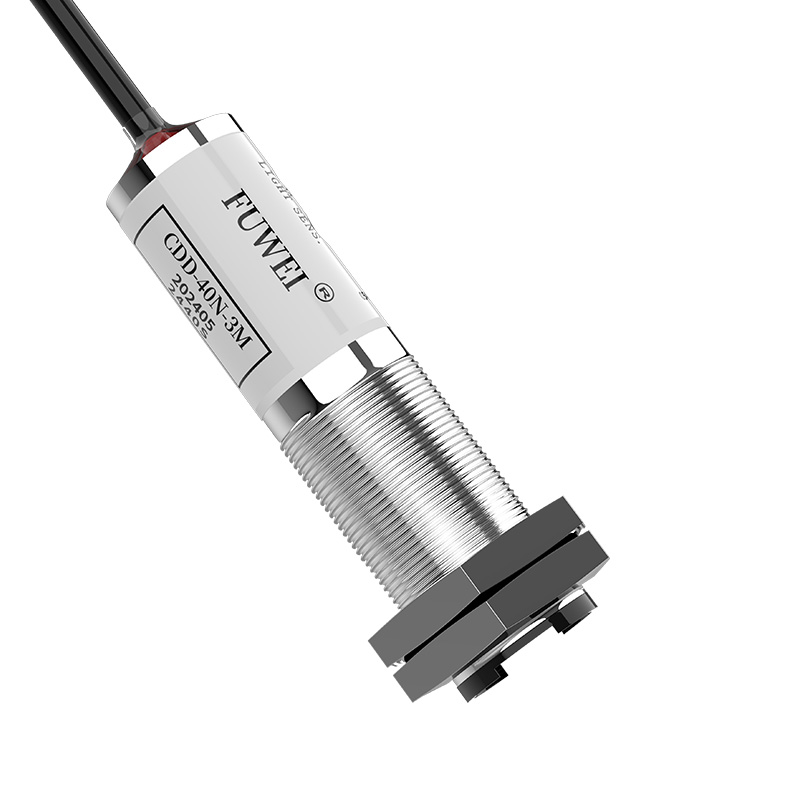

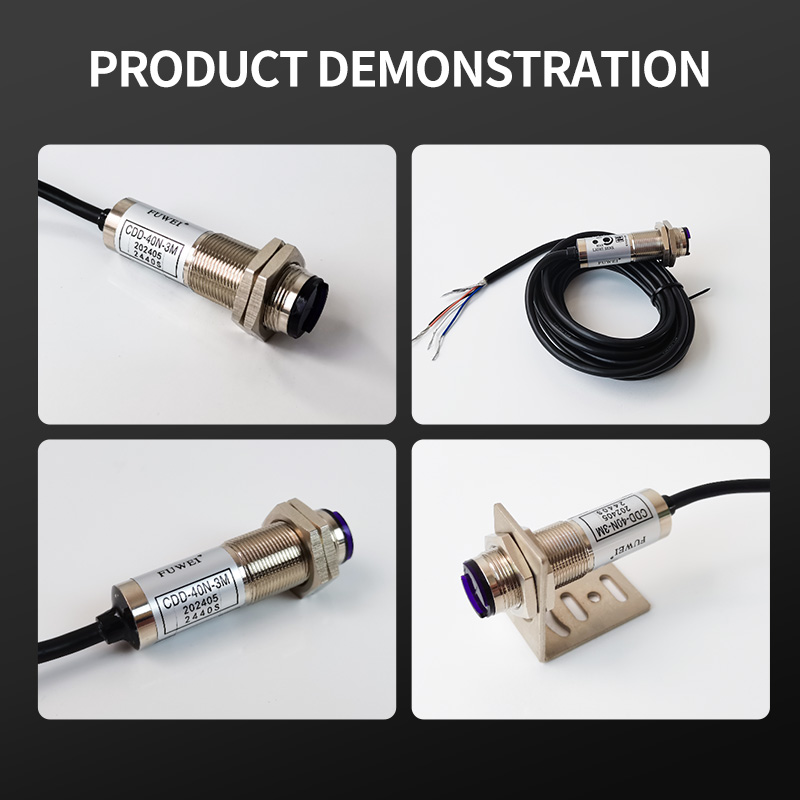

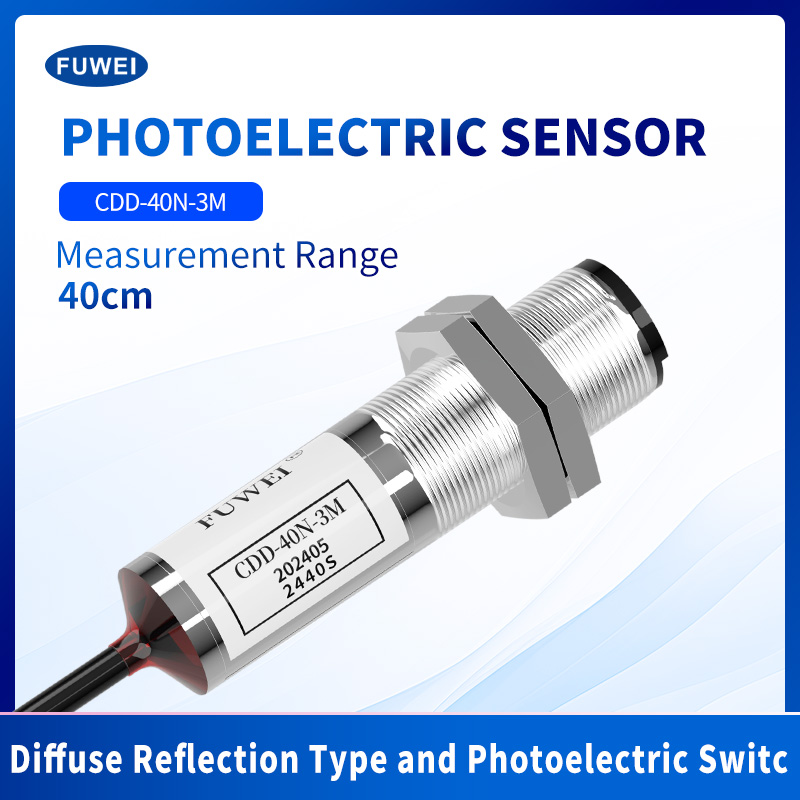

Photoelectric sensor CDD-40N-3M
Protection class IP66, suitable for harsh environment;
With overload, short circuit, reverse polarity and other multiple protection, stable performance
Metal shell, oil resistant, corrosion resistant, pressure resistant and impact resistant.
|
Product Parameters |
||
|
Type |
Diffuse Reflection(long-distance model) |
|
|
Type of Red Light Source |
CDD-40N-3M |
CDD-40P-3M |
|
Output Mode |
N=NPN.NO/NC |
P=PNP.NO/NC |
|
Detection Distance |
0~40cm |
|
|
Light Source |
Infrared LED(invisible light) |
|
|
Power Supply Voltage |
DC10～24V±10% |
|
|
Consumption Current |
max 30mA |
|
|
Response Time |
max 1.5ms |
|
|
Switch Output |
NPN/PNP Open-Collector Output max100mA/DC 30Vmax (residual
voltage max1.8V) |
|
|
Normally Open/Normally Closed Function |
Selectable Modes of Normally Open(Activated by Light)/Normally Closed
(Deactivated by Shade)(Controlled by Wiring Configuration) |
|
|

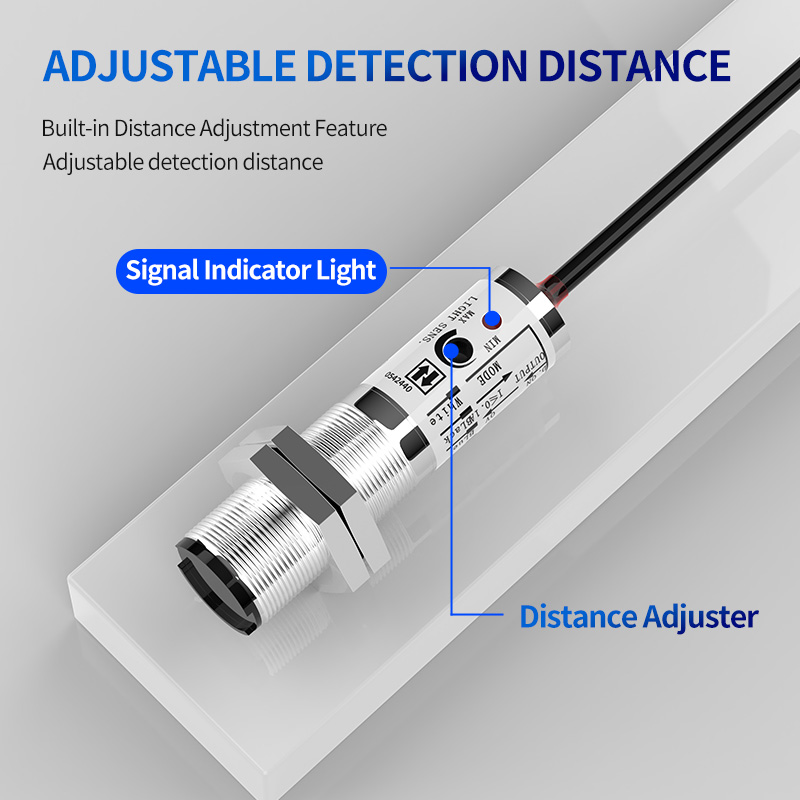

Sensitivity Adjustment |
1-turn potentiometer adjustment |
|
|
Indicator Light |
Output Indicator Light (Red LED) |
|
|
Shock Resistance |
10～100 Hz;amplitude 1.5mm,max 150m/s2,8 hours in each of the X,Y,
and Zdirections |
|
|
Impact Resistance |
About50G,3 hours in each of the XY,and Zdirections |
|
|
Operating Temperature/Humidity |
25～55℃/35~85%RH |
|
|
Storage Temperature/Humidity |
30～70℃/35~95%RH |
|
|
Protection Level/Material |
IP66/Housing:Nickel-plated Brass,lens:PMMA |
|
|

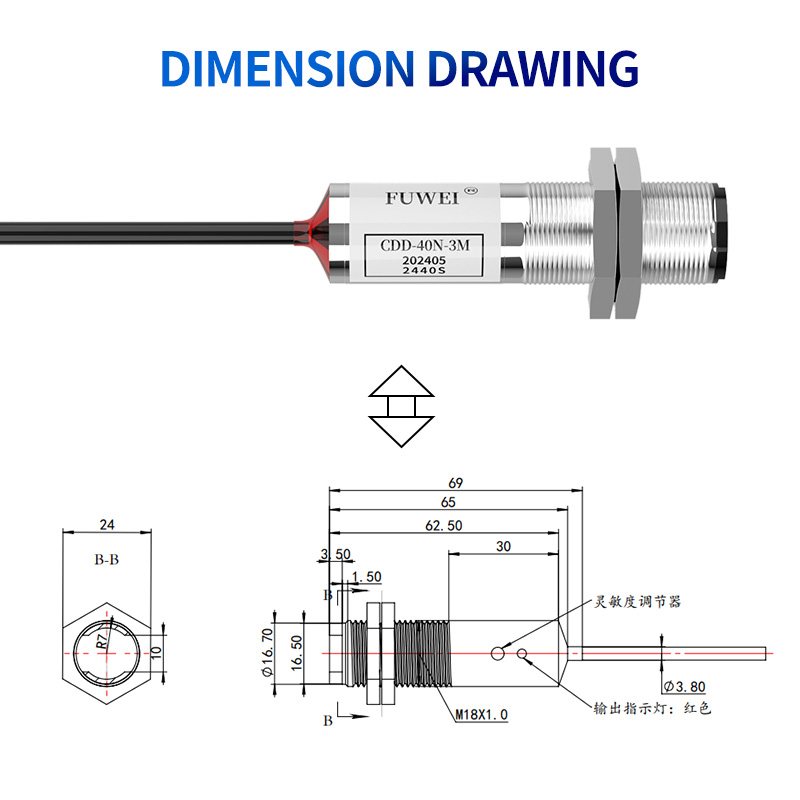

Dimensions |
screw threadM18*length:69mm |
|
|
Cable Length |
3m(Customizable cable length) |
|
|
Wiring Method |
Brown:positive power terminal,Blue:Negative terminal of power supply,
Black:Signalline;White +Blue parallel wiring:Normally closed switching |
|
