Performance Characteristics:
Ultra-thin housing effectively reduces installation space.
A variety of output methods can be selected.
Installation and wiring are simple and easy to understand.
SMD chip design, imported high-end components.
Short response time, high reliability. The products are insured by China Dadi Insurance.
TECHNICAL PARAMETERS
|
Product type |
FGM-CBD series |
|
Power supply |
DC10-30V |
|
Capacity |
<5W |
|
Beam space |
10mm/20mm/40mm |
|

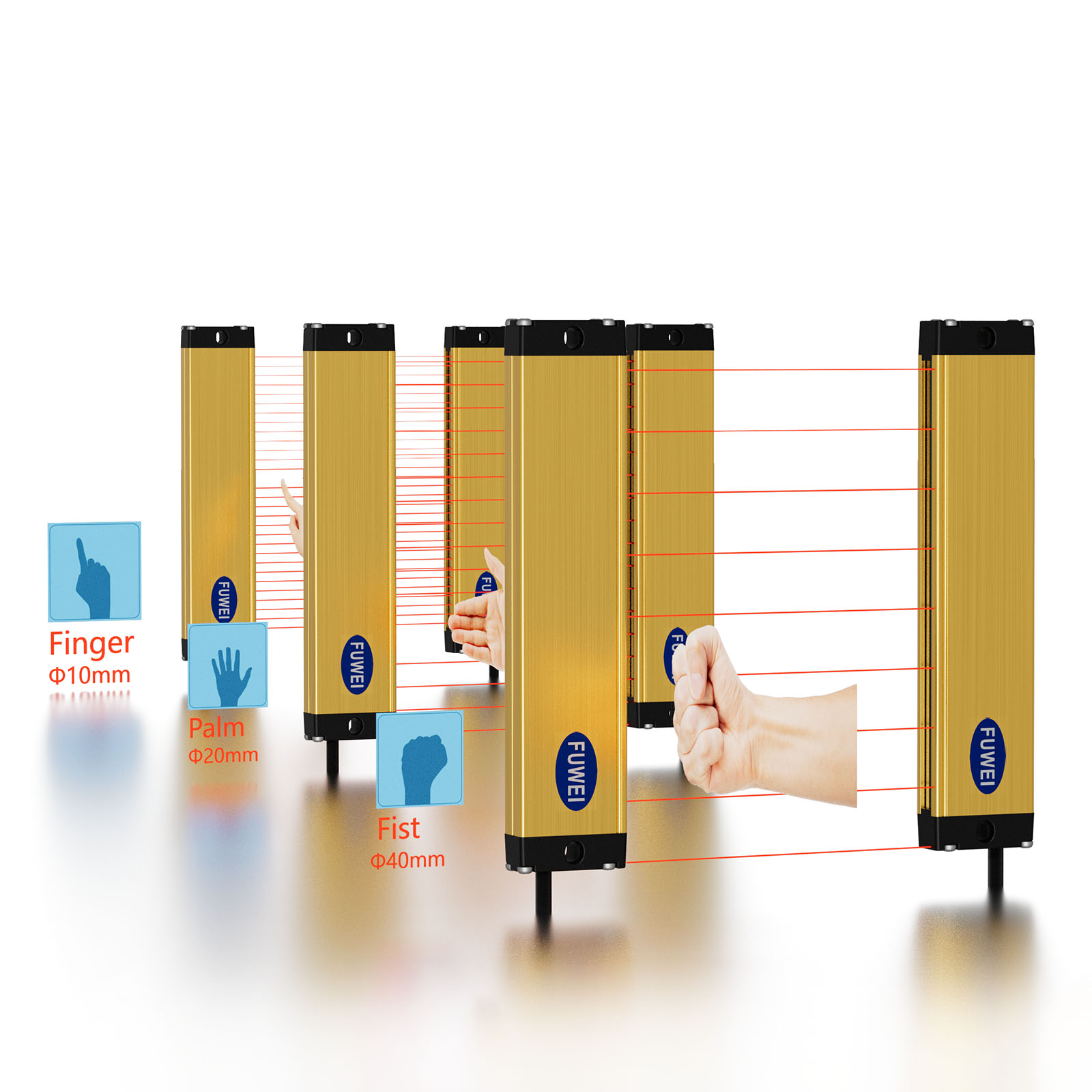

Resolutin |
15mm/25mm/45mm |
|
Beams |
10mm Beam gap:8、12、16....128 20mm Beam gap:4、6、8…86 40mm Beam gap:4、6、8....32 |
|

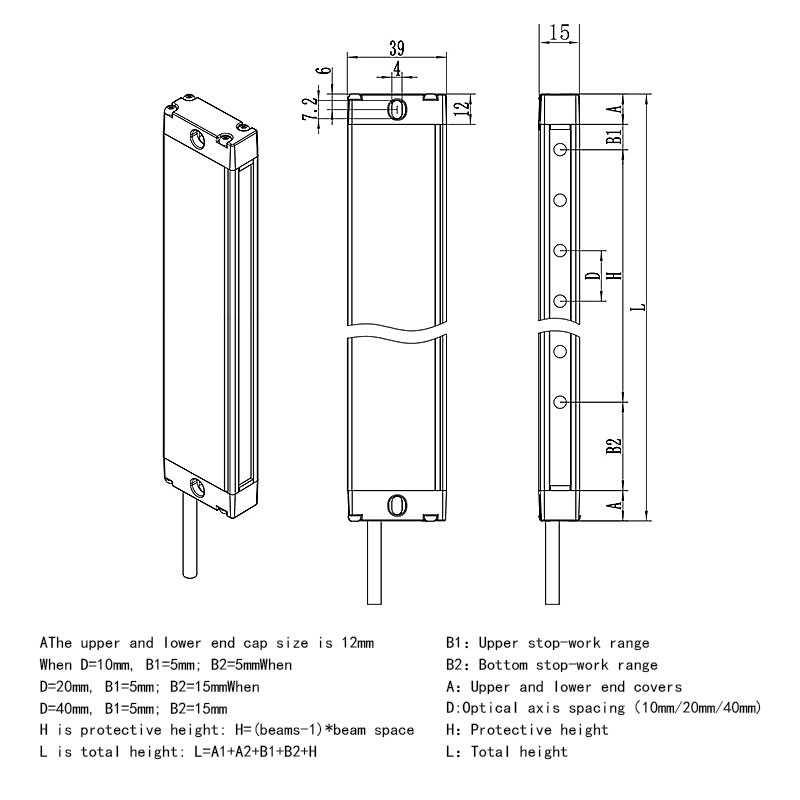

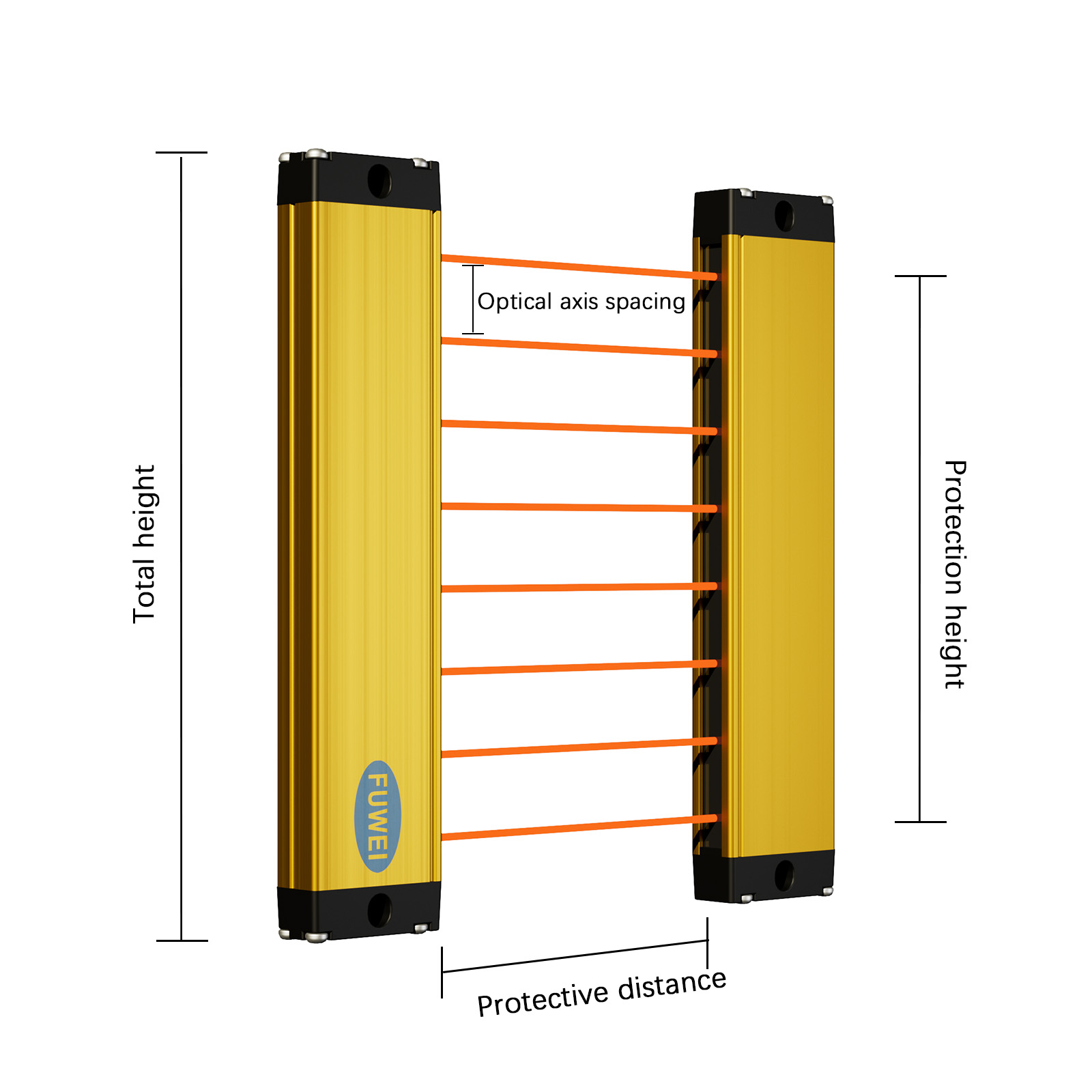

Protective height |
Protective height=(N-1)beamgap.N is beam quantity. |
|
Wave length |
940nm |
|
Response time |
Response time = N*0.1ms + 0.4ms (N is beam quantity) |
|
Output Type |
NPN/PNP semiconductors,current <200mA residual voltage:1V max(Ãxcept voltage influenced by lengthen wire) leakage current:lmA max. |
|
Protective circuit |
Overload voltage protection, power supply reverse polarity protection.over current protection |
|
Sensing destance |
0.1-0.5m.0.1-2m,0.1-4m (remark: if have light reflection. please let us know) |
|
Anti-optical interference |
10000 Lux(angle>5°) |
|
Sensing method |
Through-beam type |
|
Synchonization |
wire synchronization |
|
Enclosure meterial |
Aluminum alloy |
|
Enclosure rating |
IP65 |
|
Housing cross-section |
28-13mm |
|
Ambient operationg temperature |
-10°C-55C(with no freezing) |
|
Storagetemperature |
30°C-70*C(with nofreezing) |
|
Ambient operating humidity |
when temperature is 20°C,humidity max 85% |
