Performance Features:

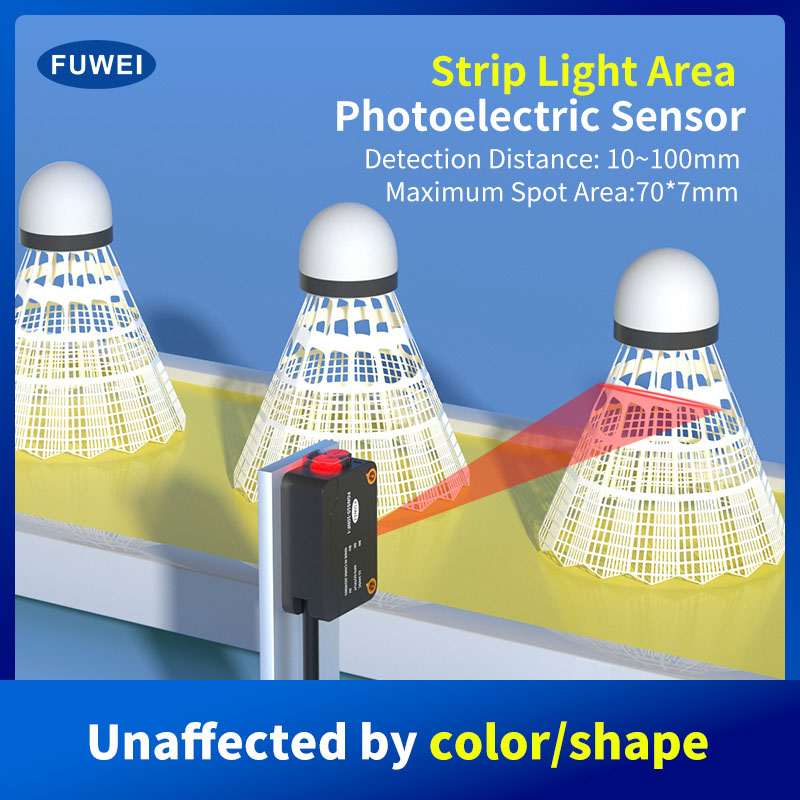

Special optical lens design, linear light spot, suitable for hollow or concave-convex surface product inspection;
Equipped with adjusting button sensing sensitivity, can set the distance accurately;

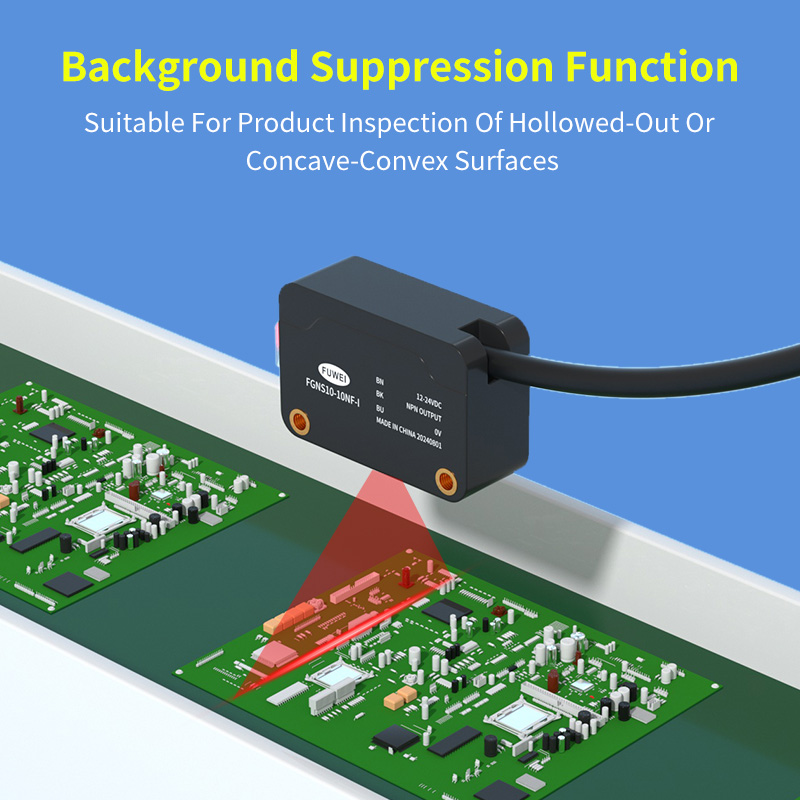

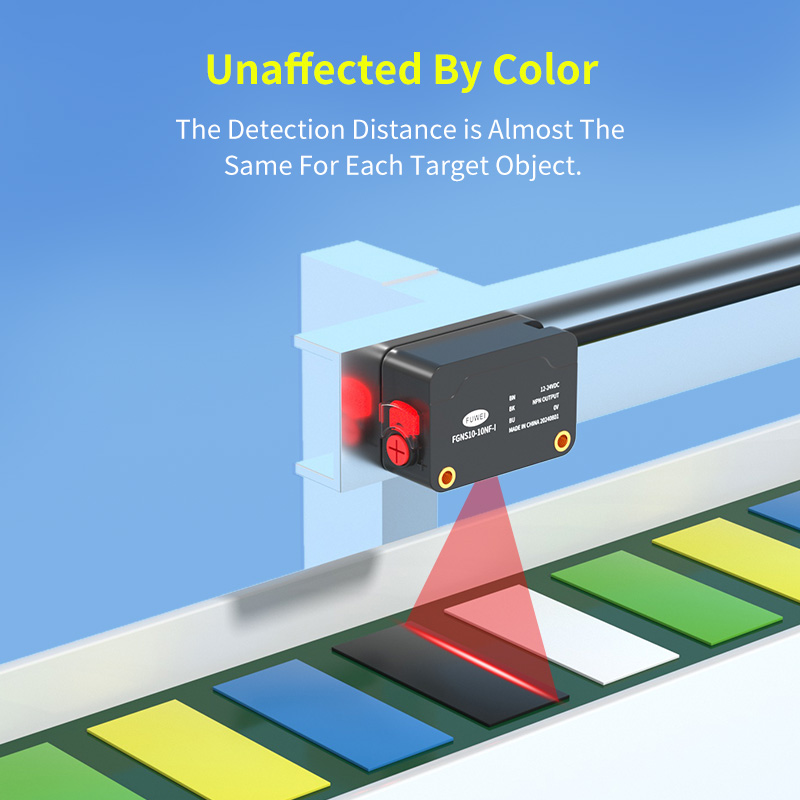

Background suppression function, not easily affected by the color.
Specification
|
Detection Method |
Background Suppression Type |
|
|
Model |
NPN Output |
FGNS10-10NF-I |
|
PNP Output |
FGNS10-10PF-I |
|
|
Detection Distance |
10-100mm(Blind Zone of0-15mm) |
|
|
Set Distance Range |
10-100mm |
|
|
Maximum Spot Area |
70*7mm |
|
|
Light Source |
Red Led (EmittingWavelength Of 660nm) |
|
|
Black-White Error |
<10mm:3%; >10mm:<5% |
|
|
Power Supply Voltage |
12-24VCD |
|
|
Consumption Current |
<10mA |
|
|
Output
Control |
Output Form |
NPN Open CollectorOutputMaximum Load Current : 100 mAMaximum Load Voltage : 30 VDCResidual Voltage :<1VDC PNP Emitter Open OutputMaximum Load Current :100mAMaximum Load Voltage :30VDCResidual Voltage of:<1V DC |
|
Output Action |
NO/NC Switchable, Switching Method:Short Circuit Between White Wire and Blue Wire |
|
|
Indicator Light |
Green: Power Indicator Light Red: Action Indicator Light & Distance SettingIndicator Light |
|
|
Tolerance Distance |
Below 3% OfThe Rated Detection Distance |
|
|
Response Time |
1ms(Action/Reset) |
|
|

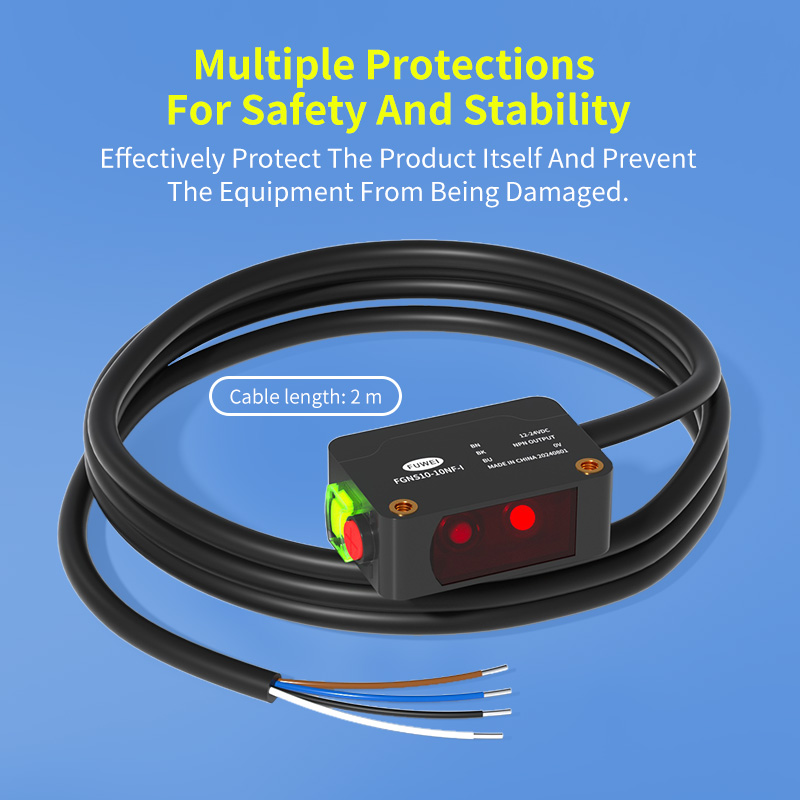

Protective Circuit |
Reverse Power Connection Protection ; Load Short Circuit Protection |
|
|
Protective Structure |
IP64 |
|
|
Environm-
entalnce Performa- |
Ambient lllumination |
llluminance on Light-receiving Surface Incandescent Lamp:<10000LX Sunlight<100000LX |
|
AmbientTemperature |
DuringOperation:-20°C°~70°C During Saving:-40°C~80°C |
|
|
Ambient Humidity |
During Working:35~85%RH During Saving:35~95%RH |
|
|
insulation Resistance |
>20MΩ(DC500VMegohmmeter) |
|
|
Material |
Shelt: ABS, Operating Part and Lens Shell: PC |
|
