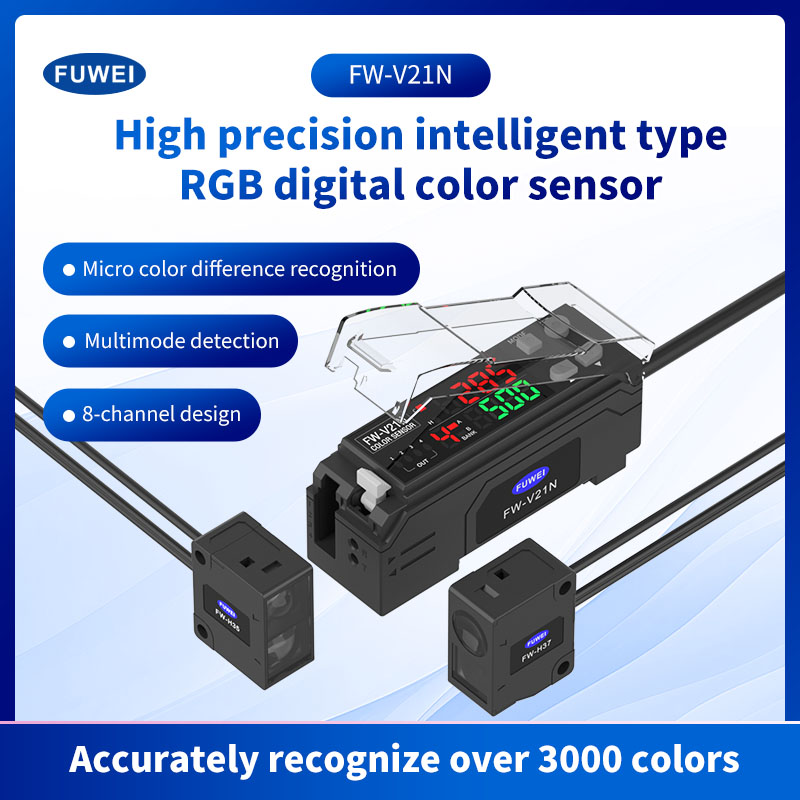

Coaxial Probe RGB Light Source Color Sensor：
FW-V21N Features:
8 channel design, can detect 4 colors at the same time, saving cost and installation space;
Matching color probe, can accurately identify more than 3000 colors;
High-resolution amplifiers that support triple 16-bit calculations, and micro-chromatic aberrations can also be recognized;
Multiple detection modes, suitable for various application scenarios;
Small Volumeand High-powerDedicated Detection Head
The detection head uses a composite structure,and thetransmitter uses optical fibers,which can generate anincredible single light point.At the same time,the volumeof thesensing head is reduced,and thelight receivingcircuit is built-in in the sensing head,thereby improvingthe detection ability and stability.
Micro Color DifferenceRecognition Function
Supportingtriple16 bitRGB calculationfor precise targetrecognition,the Super RGB color sensorcombines threeindependent color LEDs.Various color signals are convertedinto 16 bit data in the receiver for color recognition,ensuringthe accuracy of detection.(The picture shows the colorofthe detected workpiece)
|
Amplifier |
||
|
Model |
FW-V21N |
FW-V21P |
|
NPN |
PNP |
|
|
Response Sime |
200μS(HSP)/1ms(FINE)/4ms(TURBO)/8ms(SUPER) |
|
|
Control Output |
NPN(PNP)collector open circuit X4 channel,
maximum 40VDC(30VDC),1 output reaching 100mA, total of 4 outputs reaching 200mA,residual voltage,maximum 1V |
|
|
Protection Circuit |
Reverse electrode protection,
overcurrent protection, overvoltage protection |
|
|
External Calibration Input |
Input time:minimum 20ms |
|
|
Externa Calibration Input (C/C+I mode External Offset Input (Super I mode） |
Input time:minimum 20ms |
|
|
TPIDAR |
Timer OFF/OFF delay/ON delay/single shot Timer time:adjustable from 1 to 1.000ms (for each domain) |
|
|
Power Supply |
24VDC,fluctuation (P-P):maximum 10% |
|
|
Light Source |
Red LED(665nm)/Green LED (520nm)Blue LED (465nm) |
|
|
Consumption Current |
Normal mode:1.5W(maximum 62.5mA) Eco mode:1W(maximum 42.0mA) |
|
|
Ambient Temperature |
-10 to+55°C,no condensation |
|
|
Vibration Resistance |
10 to 55Hz,1.5mm dual amplitude, n X,Y,and Z directions,for 2 hours each |
|
|
Material |
Shell and cover:PC |
|
|
Weight (with 2m cable） |
About 150g |
|
|
Inductive head |
||
|
Type |
Long distance of large lightpoints |
Eliminating gloss,small beam points |
|
Model |
FW-H35 |
FW-H37 |
|
Detection Range |
28~52mm |
11~20mm |
|
Minimum Light Spot Diameter |
40mm reference distance 4.5mm diameter |
16mm reference distance 1mm diameter |
|
Minimum Bending Radius of Fibers |
25mm |
15mm |
|
Environmental Luminosity |
ncandescent lamp:maximum 10000lux
daylight:maximum 20000lux |
|
|
Environmental Luminosity |
-10~+55°C,no condensation |
|
|
Vibration Resistance |
10~55Hz,1.5mm dual amplitude, inX,Y,and Z directions,for 2 hours each |
|
|
Protection Grade |
IP40 |
|
|
Materia Casing |
PC |
|
|
Lens Cap |
PAR |
PC and 304 type stainless steel |
|
Weight (with 2m cable) |
about 40g |
about 45g |
