Performance Characteristics:

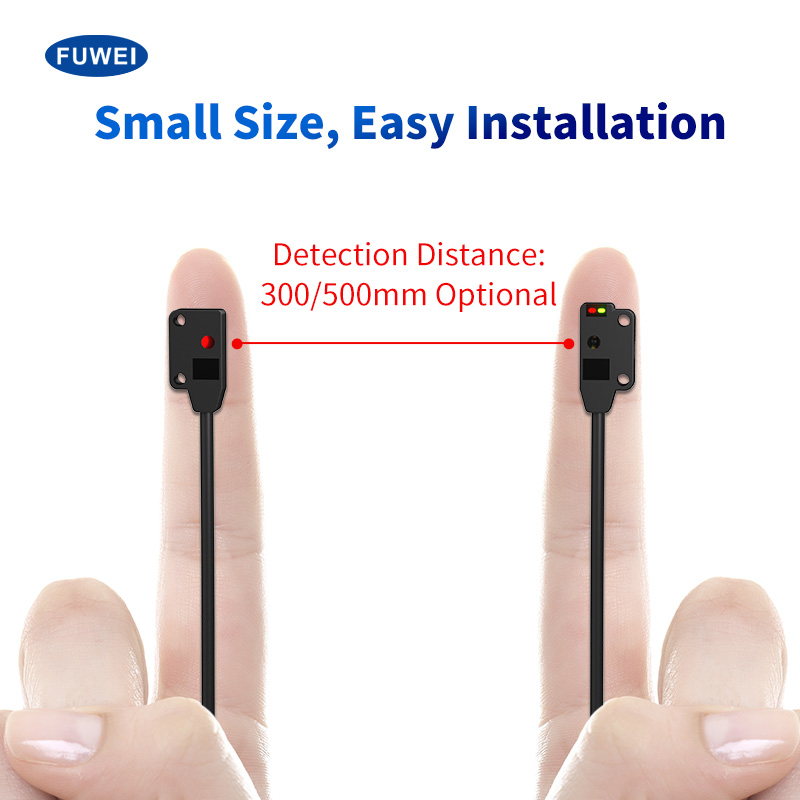

Compact size for easy installation and use
Bright, easy-to-see two-color indicator light
Good resistance to light interference and high product stability
Red light source design for easy alignment
Specification
<1ms(Action/Reset)
Brand
FUWEI
Product Name

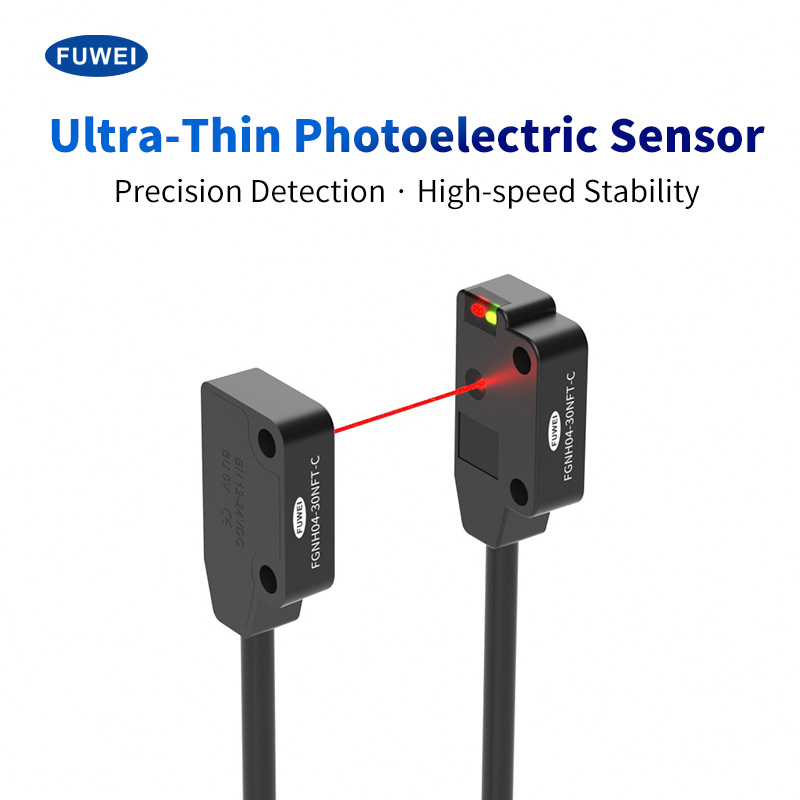

Ultra-Thin Photoelectric Sensor
Product Model
FGNH04 Series
Output Mode
NPN.NO+NC/PNP.NO+NC
Detection Distance
Diffuse Reflection:30mm Through-Beam:300/500mm
Detected Object
Ф2mm Opaque Object
Response Time
Power Supply Voltage
12~24VDC +10%
Current Consumption
<25mA
Indicator Light
Green: Power Indicator Light Red: Output indicator Light
Protection Circuit
Reverse Connection Protection, Short Circuit Protection
Protective Structure
IP65
Ambient lllumination
Incandescent Lamp:<3000lx、Sunlight:<10000lx
Ambient Temperature
-25~+55°C
Ambient Humidity
35~85%RH
Vibration Resistance
Frequency 10~500HZ Double amplitude 3mm(MAX:20G)2 hours in each ofX, Y, and Z directions
Shock Resistance
acceleration 500m/s (About 50G)X,Y, and Z directions, each 3 times
Connection Method
Lead-out type(2m)
Housing
Housing:ABS
