Performance Characteristics:
Compact size for easy installation and use
Bright, easy-to-see two-color indicator light
Good resistance to light interference and high product stability
Red light source design for easy alignment
Specification
|
Brand |
FUWEI |
|
Product Name |
Ultra-Thin Photoelectric Sensor |
|
Product Model |
Ultra-Thin Photoelectric Sensor |
|
Output Mode |
Output Mode |
|
Detection Distance |

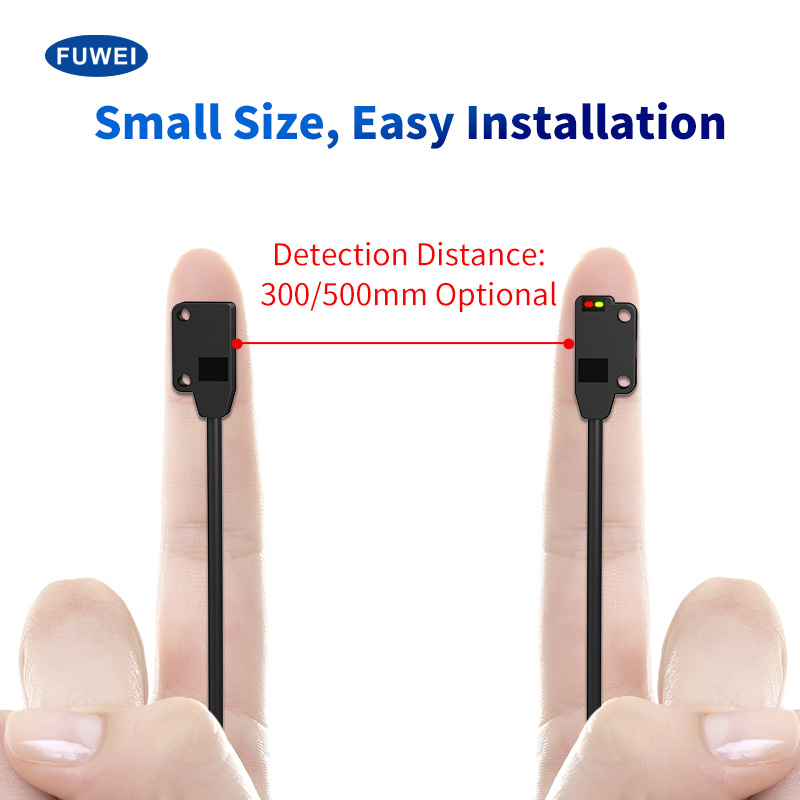

Diffuse Reflection:30mm Through-Beam:300/500mm |
|
Detected Object |
ф2mm Opaque Object |
|
Response Time |
<1ms(Action/Reset) |
|
Power Supply Voltage |
12~24VDC :10% |
|
Current Consumption |
<25mA |
|
Indicator Light |
Green: Powerindicator Light Red: Output indicator Light |
|
Protection Circuit |
Reverse Connection Protection, Short Circuit Protection |
|
Protective Structure |
IP65 |
|
Ambient lllumination |
Incandescent Lamp:<3000lx、Sunlight:<10000lx |
|
Ambient Temperature |
-25~+55°C |
|
Ambient Humidity |
35~85%RH |
|
Vibration Resistance |
Frequency10~500HZ Double amplitude 3mm(MAX:20G)2 hours in each ofX,Y,andZ directions |
|
Shock Resistance |
acceleration 500m/s (About 50G)X,Y,andZ directions, each 3 times |
|
Connection Method |
Lead-out type(2m) |
|
Housing |
Housing:ABS |
