Performance Characteristics:
Background suppression type, less affected by the color of the detector

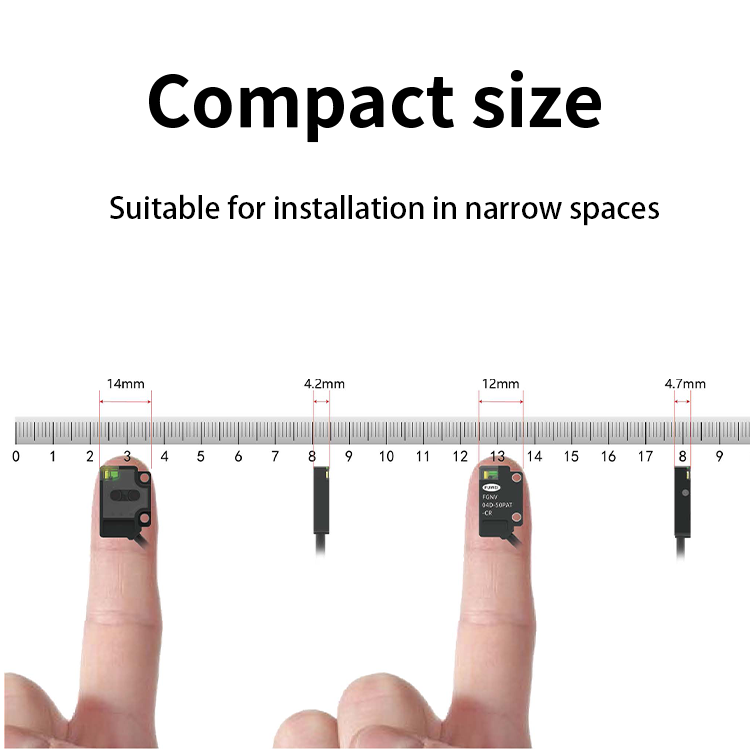

Compact size for easy installation and use
Bright LED status indicator with 360° visibility
Good resistance to light interference and high product stability
Red light source design for easy alignment
Specification
|
Model Specification |
|||
|
NPN NO |
FGNV04-30N-B |
PNP NO |
FGNV04-30P-B |
|
NPN NC |
FGNV04-30NA-B |
PNP NC |
FGNV04-30PA-B |
| Detection Distance |
30mm ® |
Indicator light |
Green: power indication, stabilization indication; Yellow: output indication |
|
Blind Zone |
<4mm |
Response Time |
<1ms |
|
Standard Detector |
50*50mm white card |
Ambient Light Resistance |
Sunlight interference ≤ 10.000lux; incandescent light in the interference 3.000 lux |
|
Spot size |
2mm@30mm |
Operating Temperature |
-20..55°C |
|
Color Sensitivity |
>90% |
Storage Temperature |
-30..70°C |
|
Contrast |
<20% |
Protection class |
IP65 |
|
Supply Voltage |
10..30VDC |
Product Certificates |
CE |
|
Current consumption |
≤15mA |
Enclosure Material |
PC+PBT |
|
Negative Surge Current |
≤50mA |
lenticular |
PC |
|
Voltage drop |
< 1.5V |
Weights |
22g |
|
Light source type |
Red light (680nm) |
Accessory |
M2 screw (length 8mm) x 2, nut x 2 |
|
Protection circuit |
Short circuit protection, board protection, overload protection, Zener protection |
||
|
①Use 50*50mm white card with reflectivity greater than 90%. |
|||
