Product characteristics：
White LED+ custom light receiving element to accurately capture subtle color differences;
500,000x high-definition dynamic range, can support a variety of workpiece colors, and effectively track distance changes and tilt;
The light spot is variable, and the diameter of the light spot can be changed by the trimmer on the upper part of the main body;
Multiple detection modes, adjustable additional calibration, stable detection even when state changes or color fluctuations.

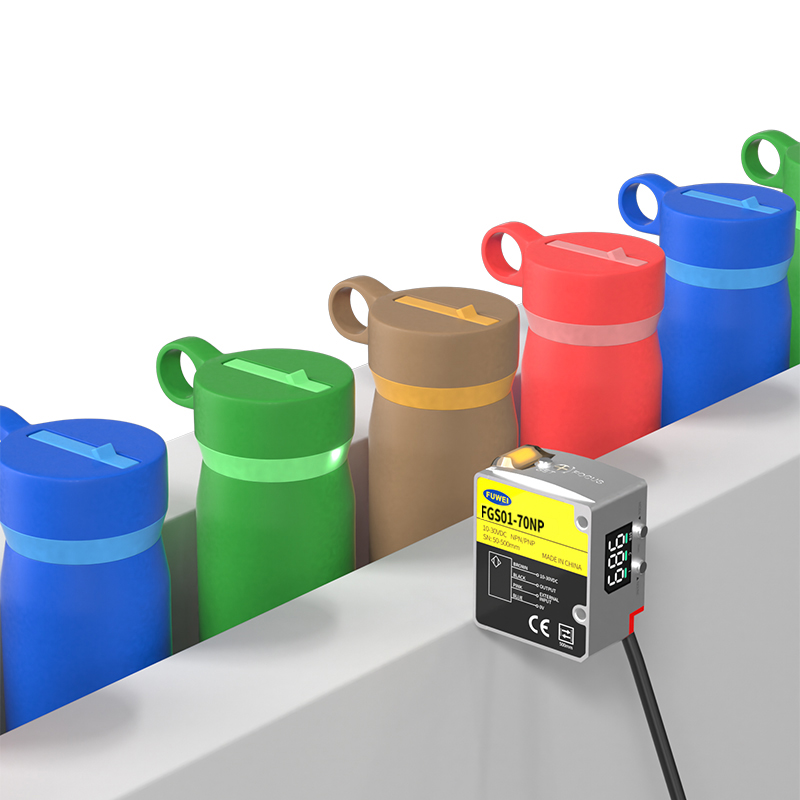

"White dots"can stablydetect differences inappearance (color)

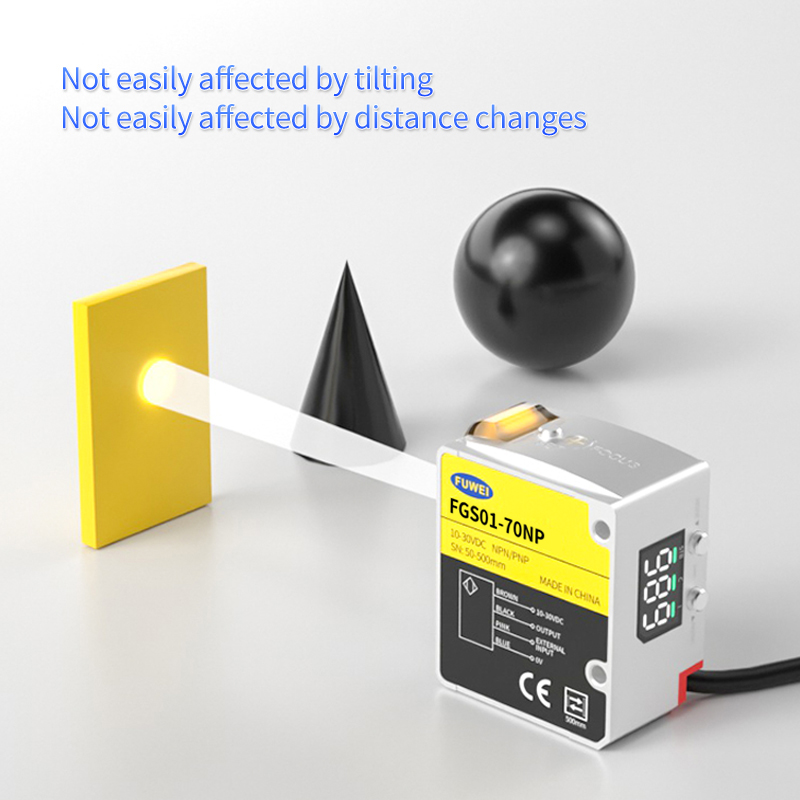

Not easily affected bytiltingNoteasily affected by distance changes
White LED+custom lightreceiving element
(White LED light sourcesupports various wavelengths ofvisible light，Red LED projectionwavelength range
，White LED projectionwavelength range)
Thetraditionalred LED photoelectric sensoris limitedby the red wavelength range,So it canonly solve thedifference in light intensity;
Workpieces with low lightintensity can alsobestably detected with highpower
Controlling the luminouspower of workpieces witheasily saturated lightintensity
Using a zinc castingshell,no protective cover is required.
The digital display can clearly confirmthe detection status ataglance.
The installation part also has the samedurability as a sturdy body.Even ifexcessively tightened during installation,The sensor will not be damaged.
Large indicator lights thatare easy toobserve from various angles.
The ON/OFF status of the sensor canbe clearly confirmed ataglance.
Specification parameters:
| MODEL:NPN/PNP |
FGS01-70NP |
FGS01-500NP |
|

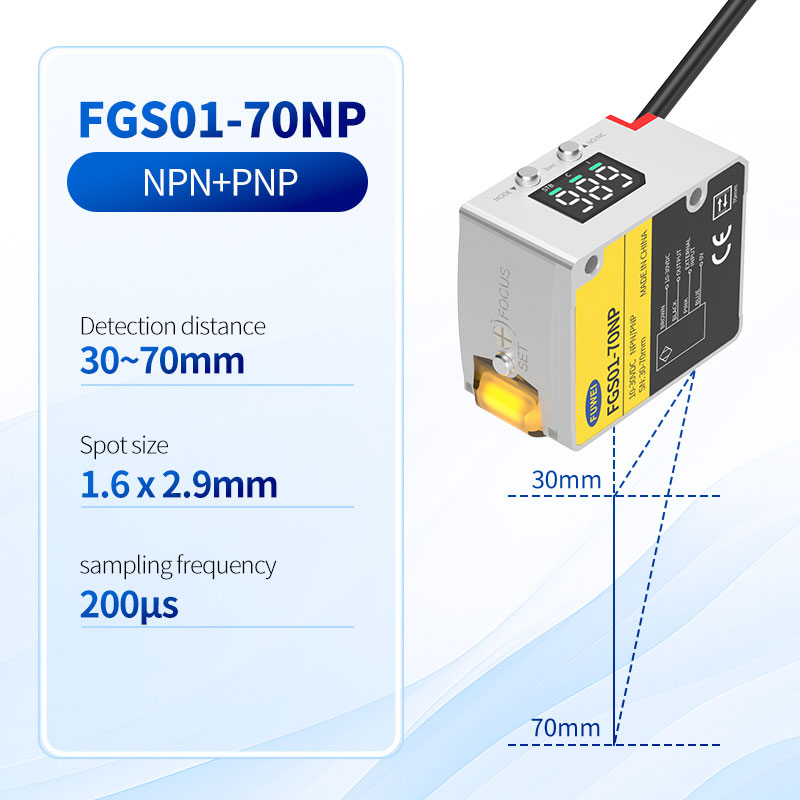

Detection distance |
30~70mm |
50~500mm |
|
Minimum light spotdiameter |
At50mm,approximately 1.6x2.9mm |
At 100mm,approximatelyφ3.5mm At250mm,approximatelyφ9mm At500mm,approximatelyφ 20mm |
|
Response time |
200μs,1ms,10ms,100ms,500ms |
|
|
light source |
White LED |
|
|

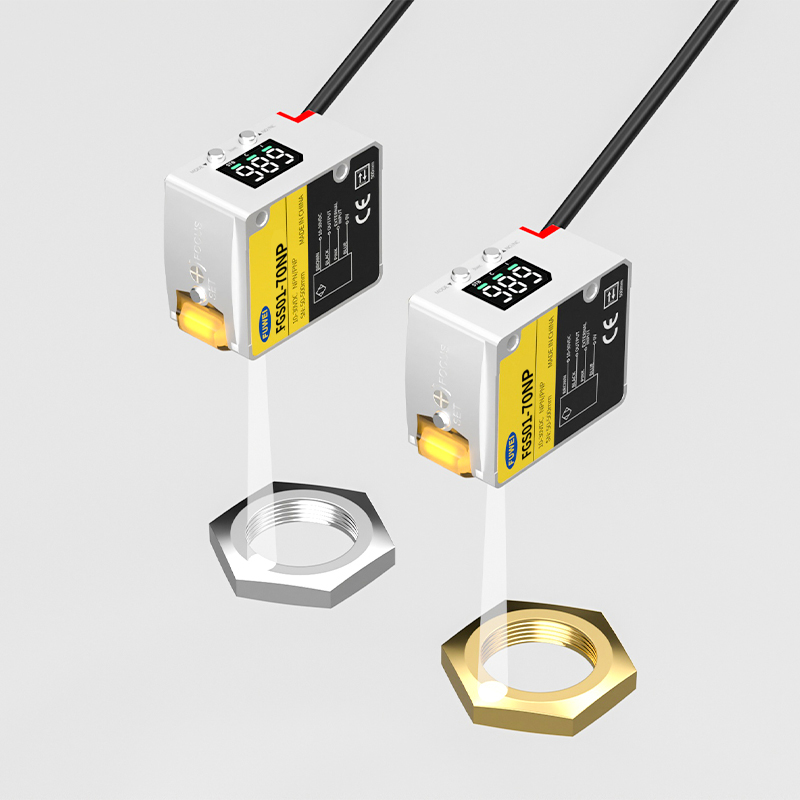

Prevent mutual interference |
Set different frequencies,up to 2 units |
|
|
Consumption current |
Under50mAat 24VDC At 12VDC,below 110mA |
At24V,below 50mA At 12V,below 100mA |
|
Supply voltage |
10to 30VDC with ripple(P-P)10%,Class2or LPS |
|
|
Timer |
OFF/On delay/Off delay/Single time |
|
|

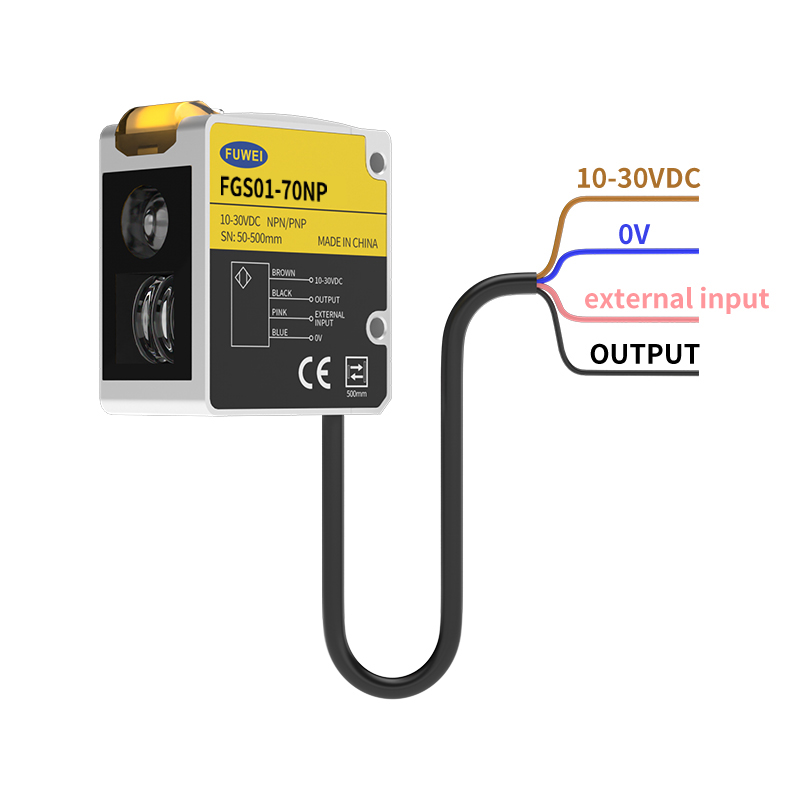

Control output |
NPN open collector/PNP open collectorswitching type
Below 30V,below 100mA,residual voltage below 2V NO/NC switching type |
|
|
External input |
Tune/stop emission switching type |
|
|
Environmental ighting |
Power reverse protection,power surge protection,
output overcurrent protection,output surge protection |
|
|
Vibration |
ncandescent lamp:below 10000lx,sunlight:below 20000lx |
|
|
Impact resistance |
1000m/s²,X.6times in each direction ofY and Z |
|
|
Vibration resistance |
10to55Hz,dual amplitude 1.5mm,2 hours in X,Y,and Z directions |
|
|
Protection level |
IP65 |
|
|
Materia |
Shell:zinc casting (chrome plated),
ndicatorlight cover:PPSU,button:stainless steel |
|
|
Weight |
128g |
|
