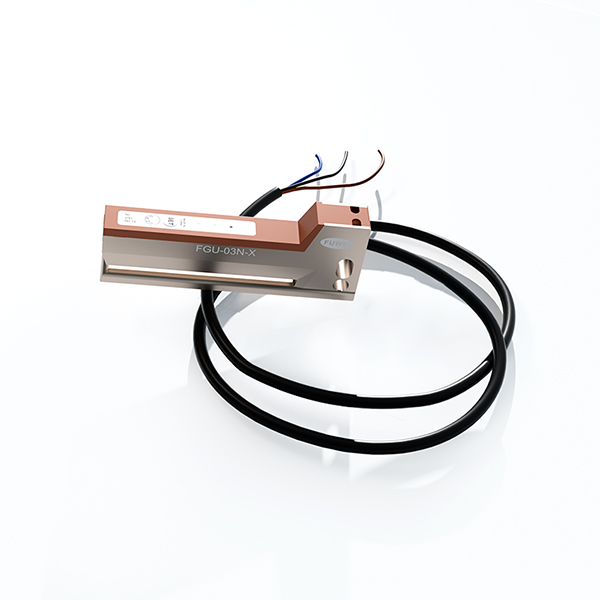

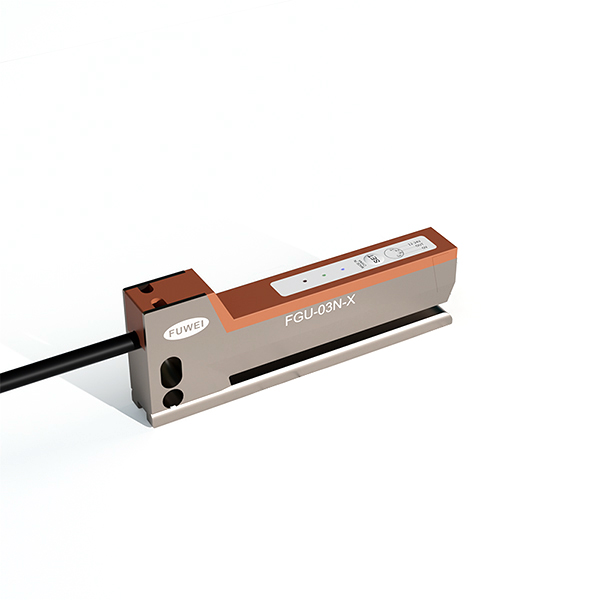

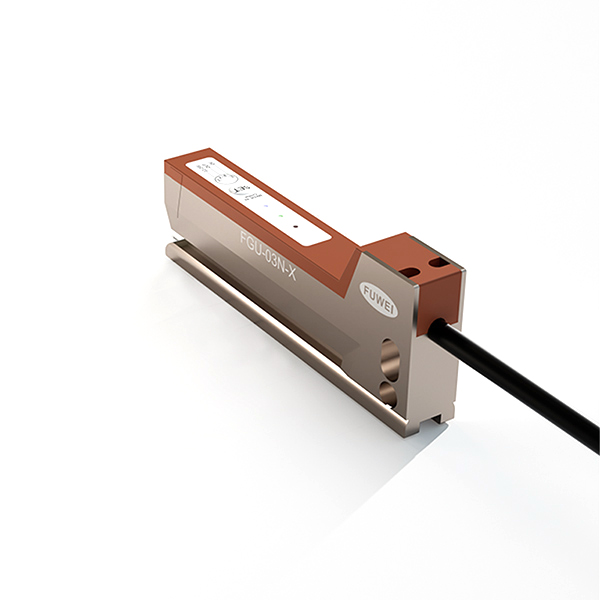

FGU-03N-X

The Fuwei FGU-03N-X Photoelectric Label Sensor, crafted in China by our reputable manufacturer, epitomizes innovation and reliability. As a trusted supplier, we offer competitive pricing without compromising on the premium quality and precision of our sensors, ensuring superior performance and durability in various labeling and detection applications.

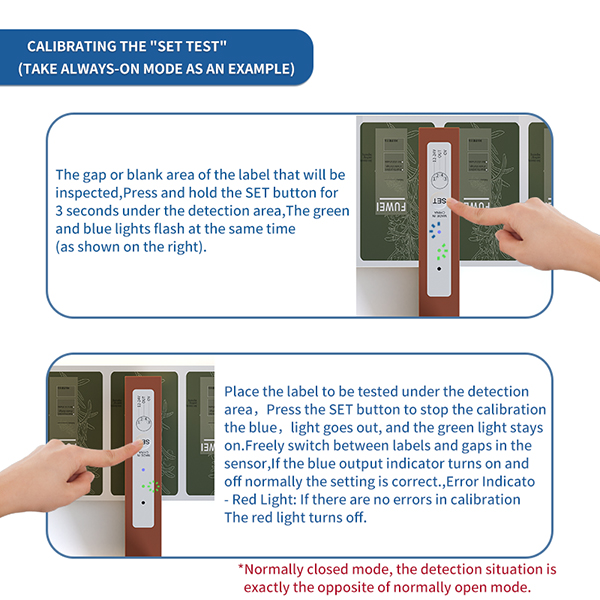

Calibration Operation FGU-03N-X Photoelectric Label Sensor:

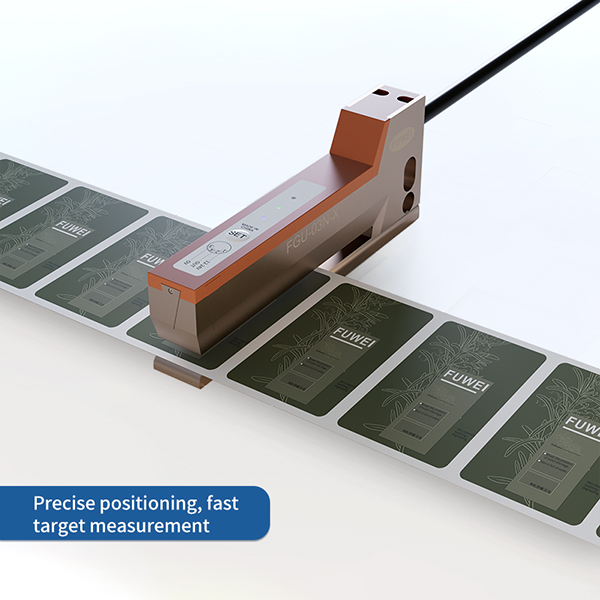

For a wide range oftags, the tag sensor FGU-03N-X has the ability to detect correctly at high speed, with standard sensitivity applied to most tags

Dynamic calibration preparation:

Embed the label conveyor into the sensor.

Static calibration preparation:

Move the label out of the sensor substrate and push the blank area into the sensor.
Press and hold the calibration button for 3 seconds until the green and blue lights flash simultaneously.
Release the calibration button.

Dynamic demonstration:

Pusha label conveyor with a maximum speed of 20m/min into and through the sensor, with at least 3-7 labels passing through the sensor.
Then briefly press the next calibration button to end this calibration operation and the sensor enters standard mode.

Static demonstration:

The blank area remains in the sensor's detection area.
Press the next calibration button briefly to end this calibration operation and the sensor enters standard mode.

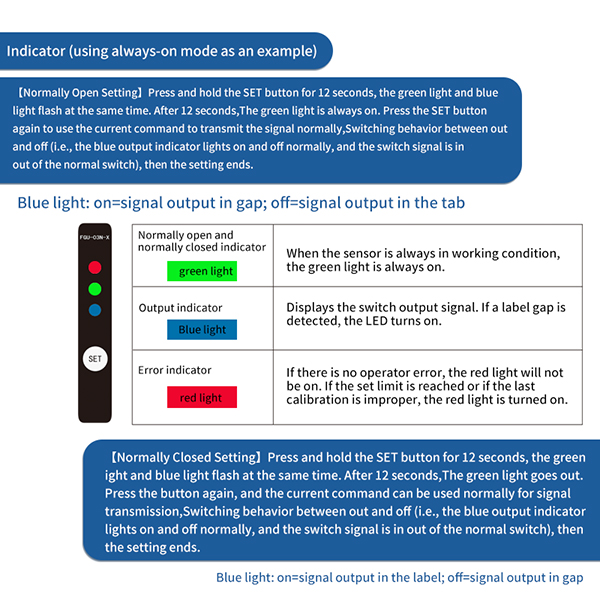

If the calibration operation is incorrect (e.g, the label being detected is a transparent material or the material is not uniform), the red light tums on, the green and blue lights flash rapidly, and an error output signal is generated.
When an incorrect operation occurs,the calibration operation must be recalibrated.
After recalibration, if the error cannot be corrected, then this type oflabel is not applicable to the FGU-03N-X

FGU-03N-X Photoelectric Label Sensor Features

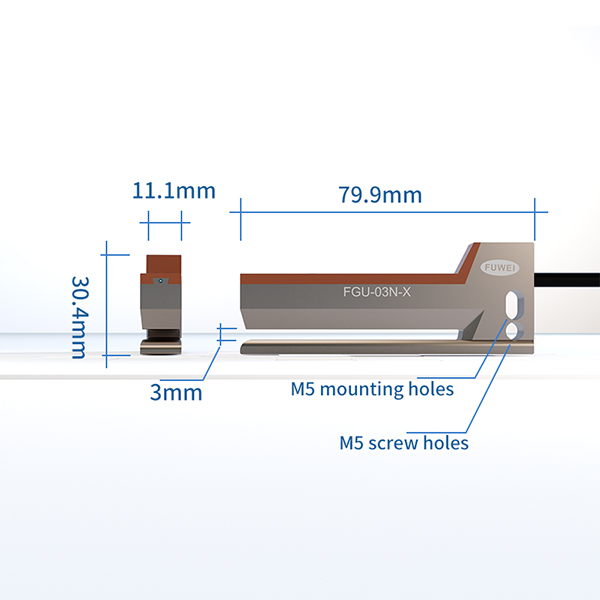

1. Photoelectric sensor with 3mm detection slot width and 60mm detection slot depth for optical detection, capable of accurate (unit: mm) label detection on the machine

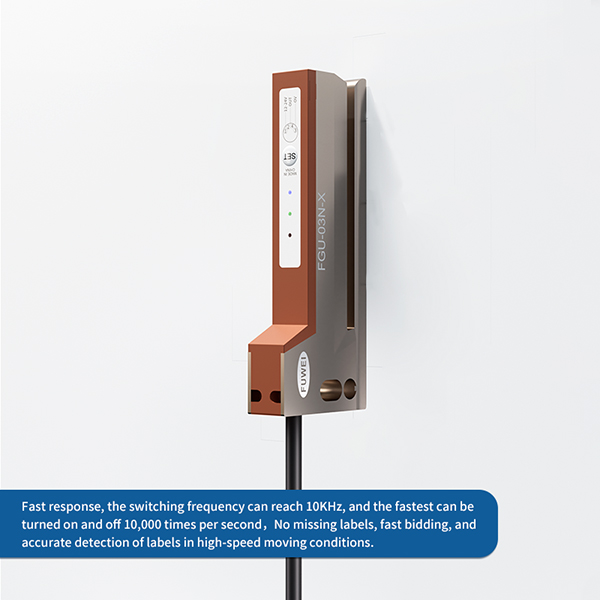

2.High speed switching frequency and very short response speed to ensure good repeatability
3. Long slot design, easy to place labels directly on the edge of the operating slot for detection
4. Adaptive logic circuit function (automatic level control):through the autonomous optimization of the switching threshold achieve its best performance

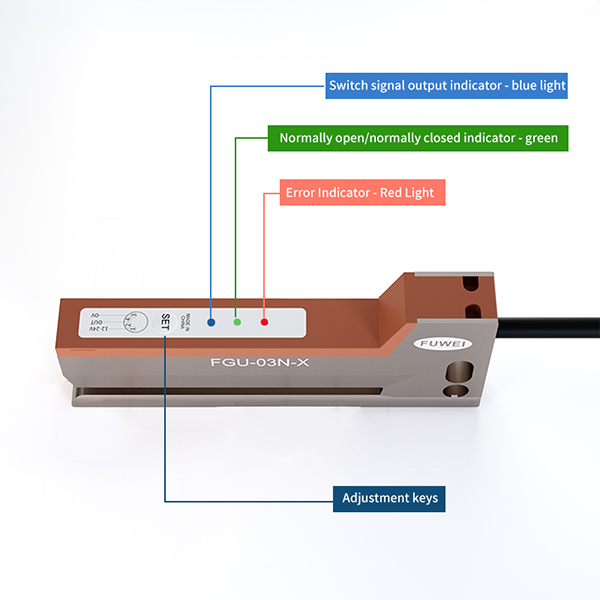

5.Waring output for calibration value display and function operation errors
6. Easy adjustment by closed calibration buttons or calibration outputs
