Performance Characteristics:
Optoelectronic principle, not easily affected by the measured medium, key self-learning light-sensitive environment, simple and convenient operation, no mechanical moving parts, high reliability; small size, can be arbitrarily installed; in line with the safety regulations, ROHS standards require requirements
Specification
|
Detection Principle |
Non contact photoelectric detection |
|
|
Model |

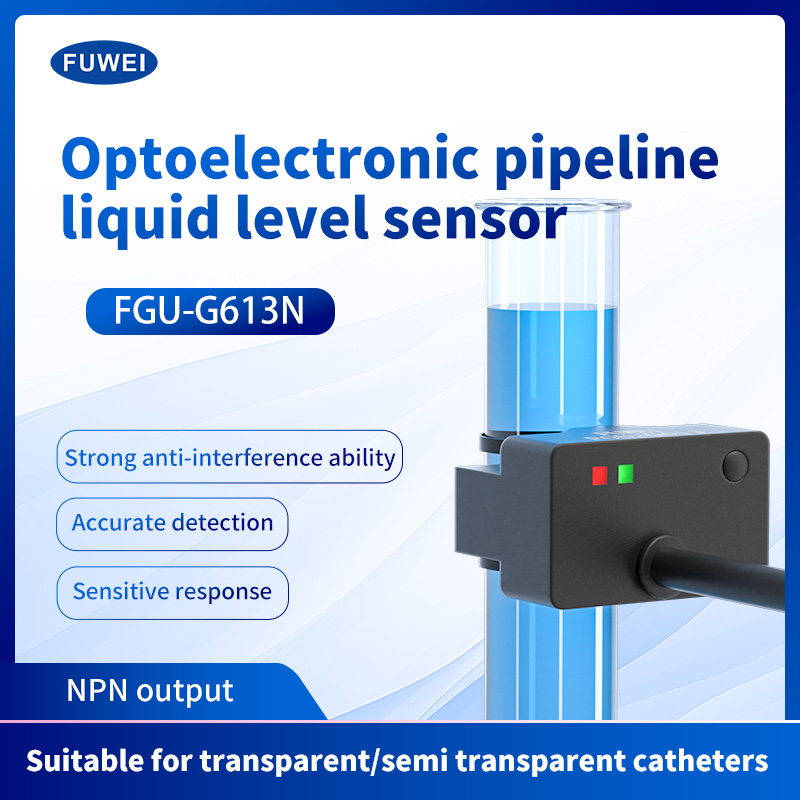

FGU-G613N |
FGU-G613P |
|
Output |
NPN collector open circuit output type |
PNP collector open circuit output type |
|
Detected Object |

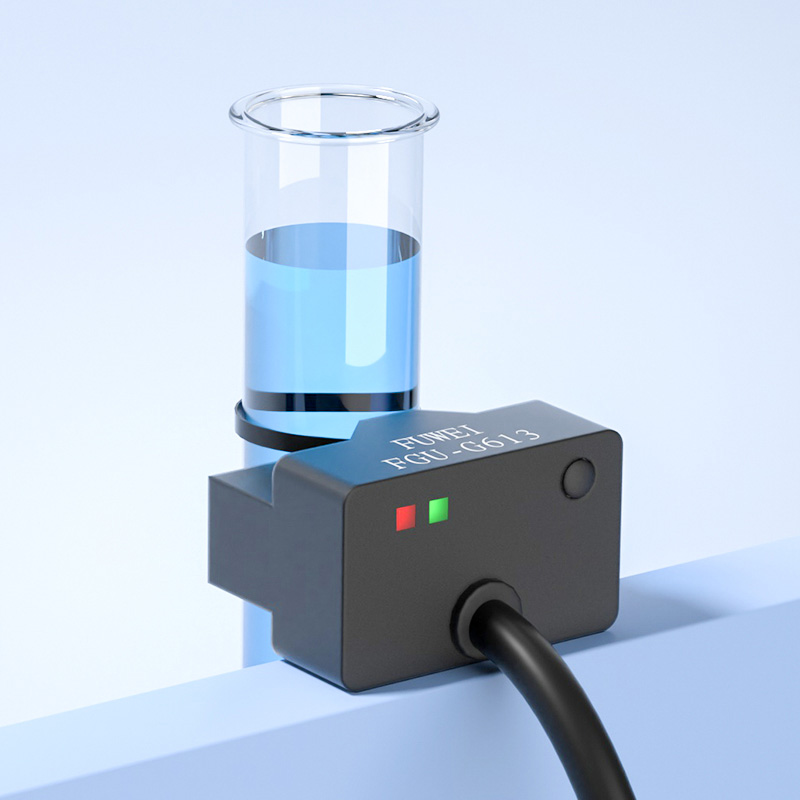

Liquid inside the catheter |
|
|
ApplicableConduit Materia |
Transparent/semi transparent catheters |
|
|
Applicable Catheter
Outer Diameter |
external diameter Φ 6-13mm |
|
|
Applicable Conduit
Wall Thickness |
<lmm |
|
|
supply Voltage |
DC12-24V |
|
|
Operating Mode |
ON/OFF switch for shading and lighting |
|
|
Operating Mode |

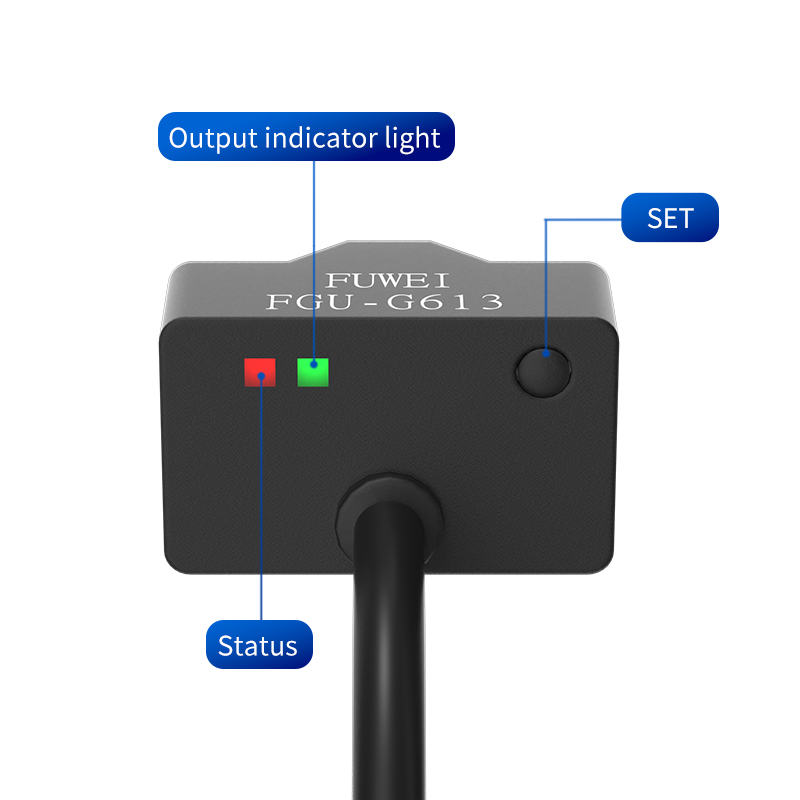

Red status indicator light;, Green output indicator light |
|
|
Consumption
Current |
Average value below 30mA, maximum value below 80mA |
|
|
Light Source |
GaAs infrared light-emitting diode (940nm) |
|
|
Ambient llluminance |
Incandescent lamp-sunlight: below 3000Lux each |
|
|
Ambient Temperature |
During operation:-10~+55C;When stored: -25~+65 °C (frozen, dewy) |
|
|
Ambient Humidity |
During operation:5-85%RH; When saving: 5~95%RH (condensation) |
|
|
Vibration Durability |
10~500Hz single amplitude 1.0mm |
|
|
Impact Durability |
3 times in X、Yand Z directions |
|
|
Protective Structure |
lEC specification lP50 |
|
|
Control output |
Load powersupplyvoltage DC12-24V, load current below 100mATurn off power supply below 0.5mA:residual voltage below 0.8V (when the load current is 100mA)Residual voltage below 0.4V (when the load current is 40mA) |
|
|
Shell Material |
polycarbonate |
|
|

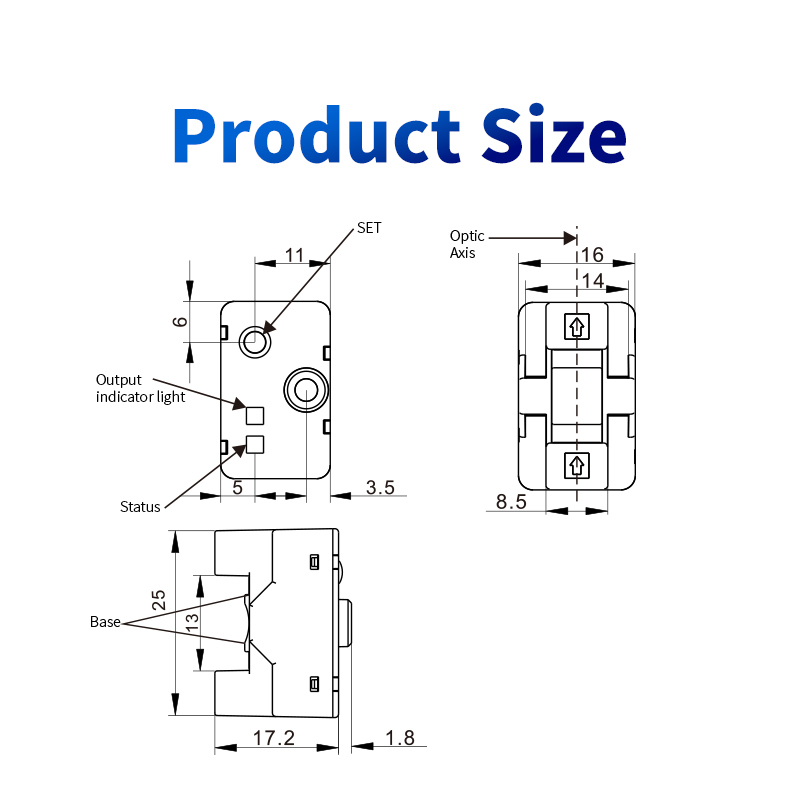

Size |
25mm x16mm x17.2mm |
|
|

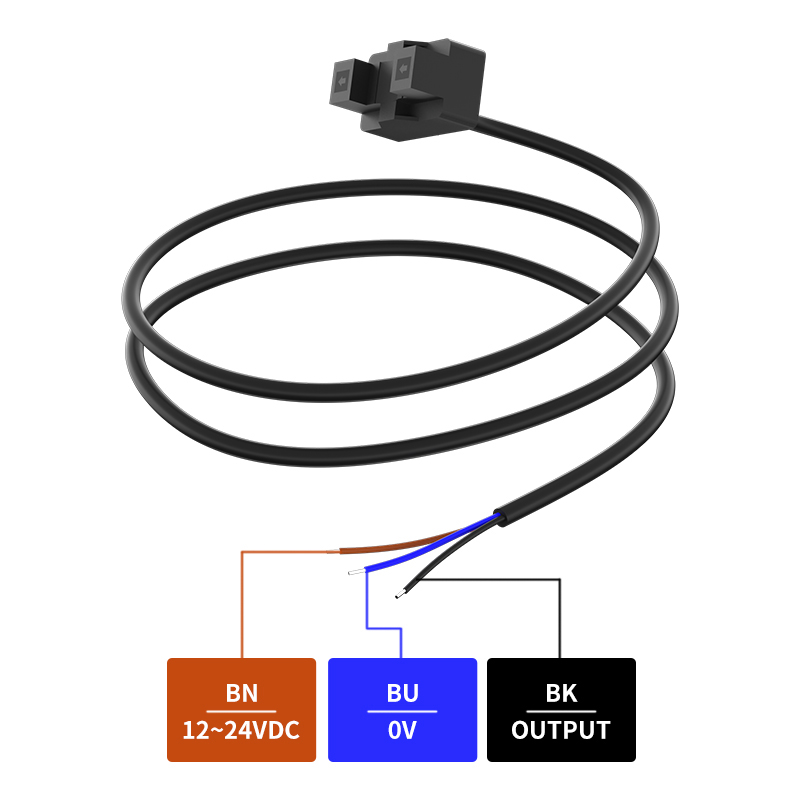

Connection Method |
Wire travel (standard wire length of 2m) |
|
