Performance Characteristics:
Capacitive principle, not easily affected by pipe material
Two way output:NPN+PNP;

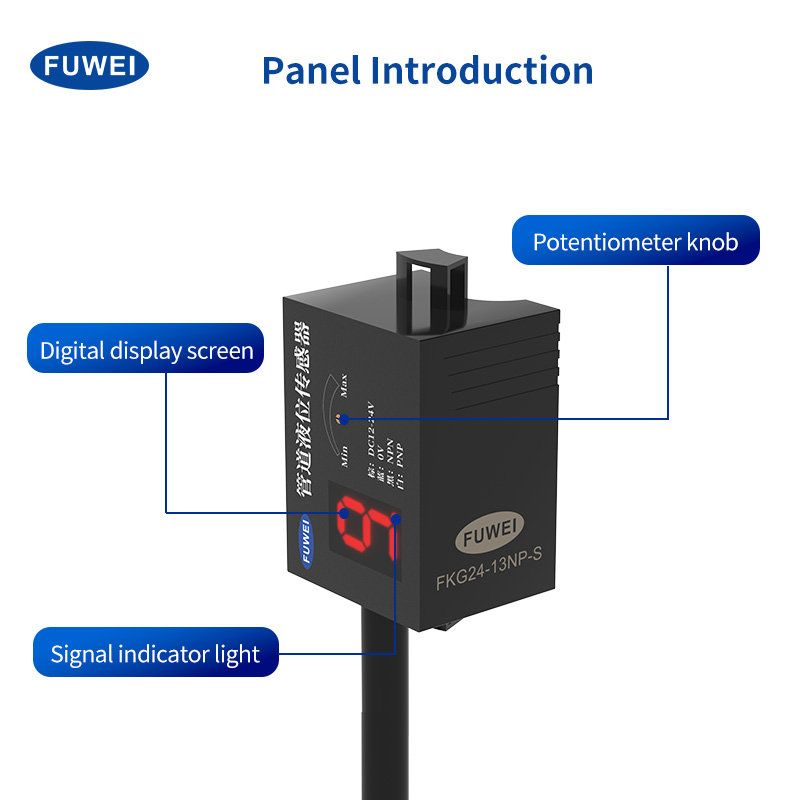

Sensitivity potentiometer can be adjusted, simple operation;
High accuracy of liquid level control, repeatability less than 5% ;
No mechanical moving parts, high reliability;
Specification:
Applicable
Conduit Material
Applicable Conduit
Wall Thickness
Modulation
Accuracy
Temperature
Detection Principle
Non contact capacitive detection
Model

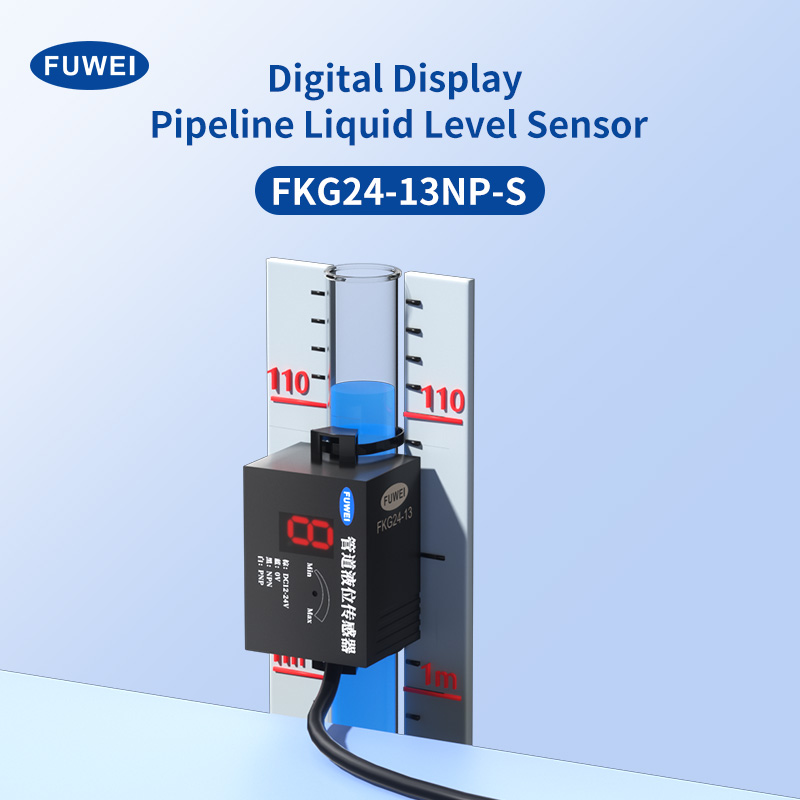

FKG24-13NP-S
FKG24-26NP-S
Output
NPN+PNP

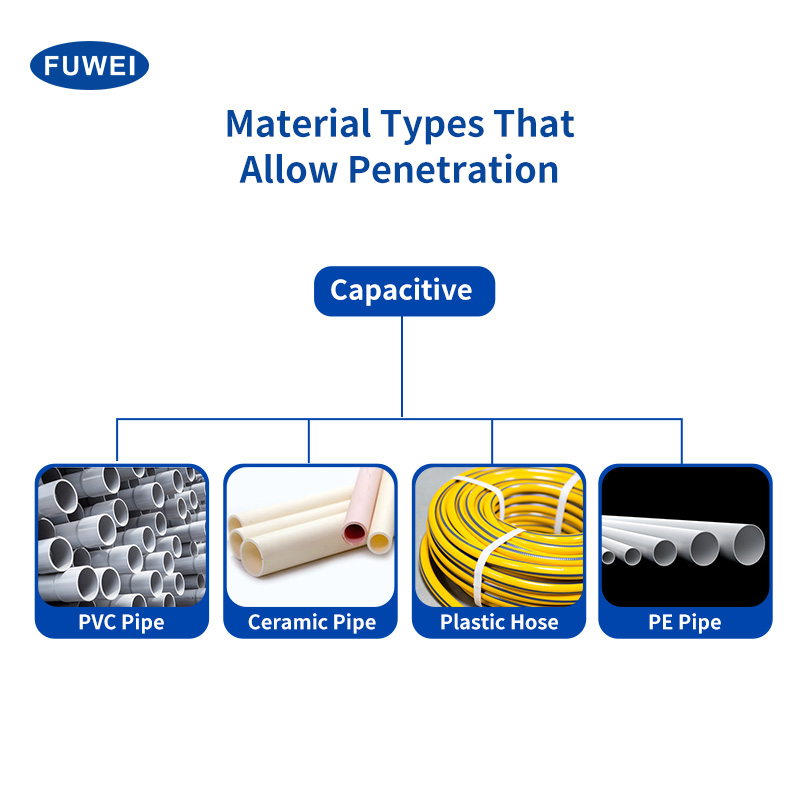

Glass tube; Pvc pipes; Ceramic tube; Acrylic tube;Rubber hose, Non metallic materials such as PE pipes

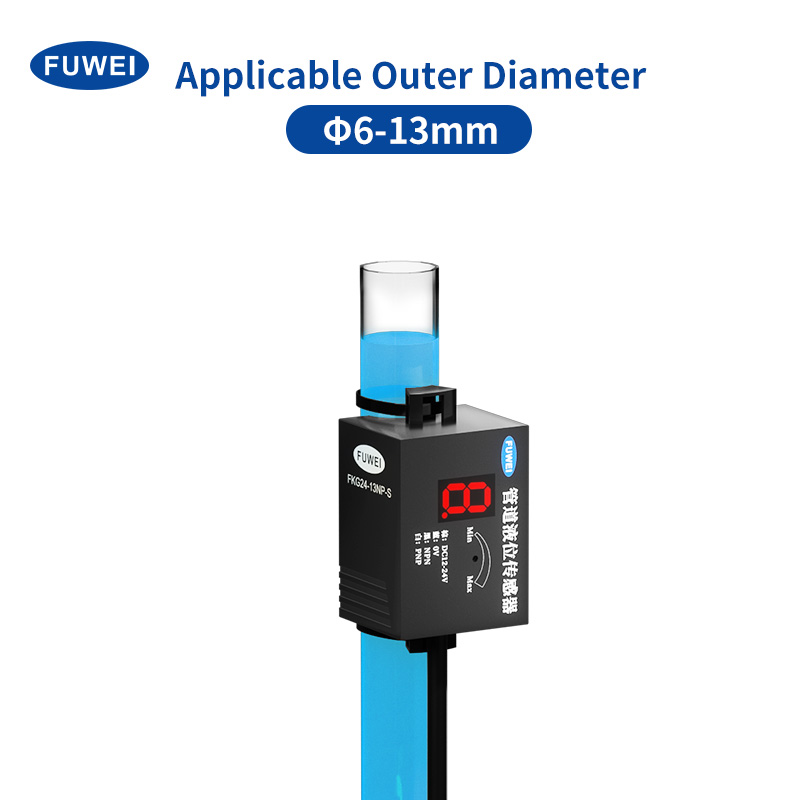

Applicable CatheterOuter Diameter
external diameterФ 6-13mm
external diameter Ф 12-26mm
<2mm
<3mm
Supply Voltage
DC12-24V
Sensitivity
Multi turn adjustable
Reaction Time
1ms
Load Current
100mA
Residual Coltage
<1.5VDC (load current of 100mA, when the wire is 2 meters)
Repetitive
<5% detection distance
Protect
Power reverse protection and output short circuit protection
Voltage Withstand
1000VAC 50-60HZ 1min
Shell Material
ABS
Ambient
-25°C~+70°C
Protection Level
IP66

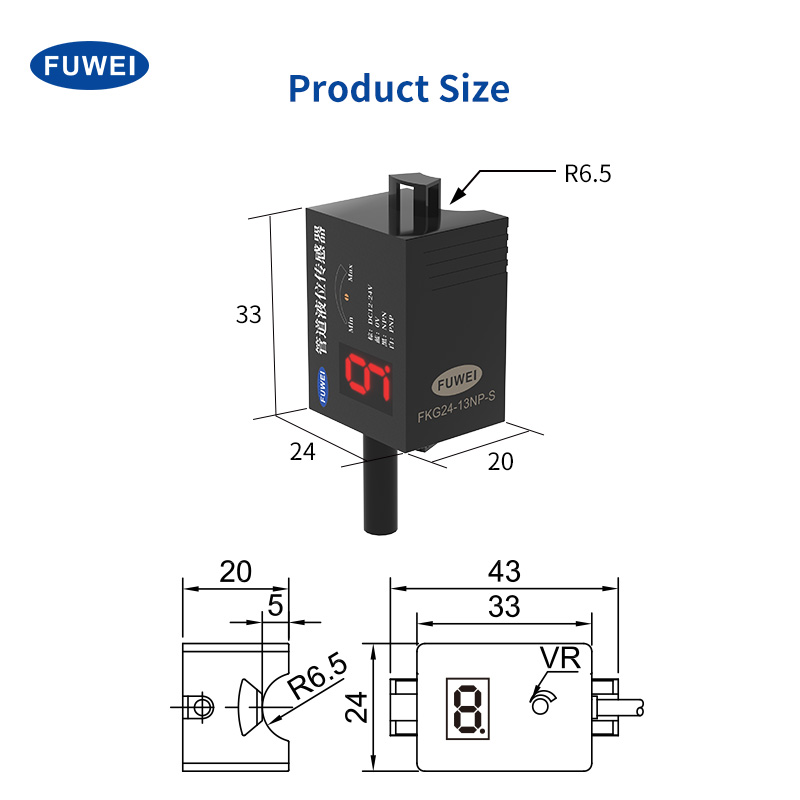

Size
43mmx24mm x20mm
33mm x 34mm x 20mm
Connection Method

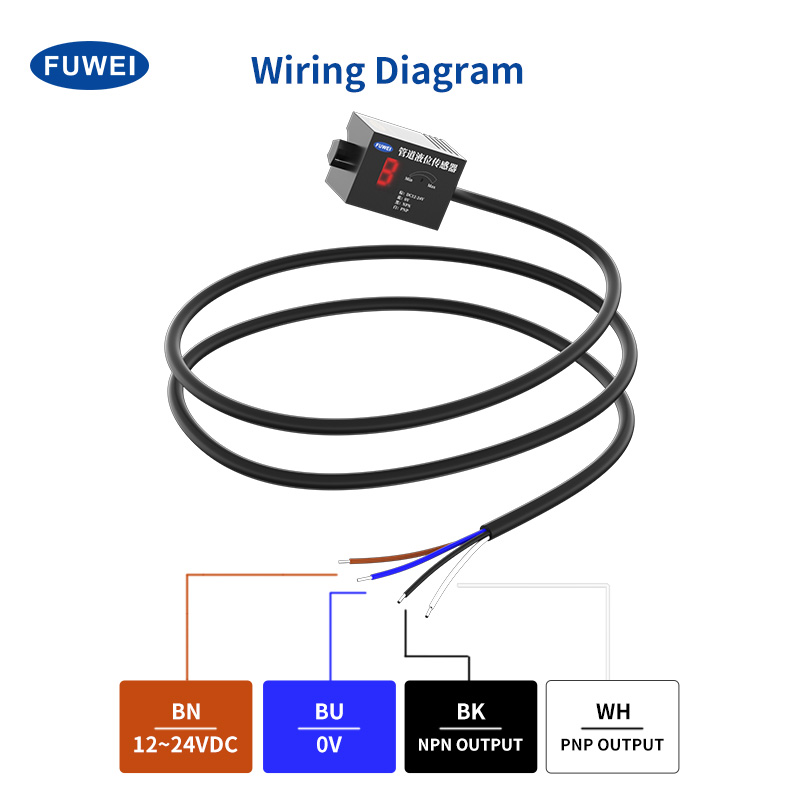

4-core 2m PVC lead wire
