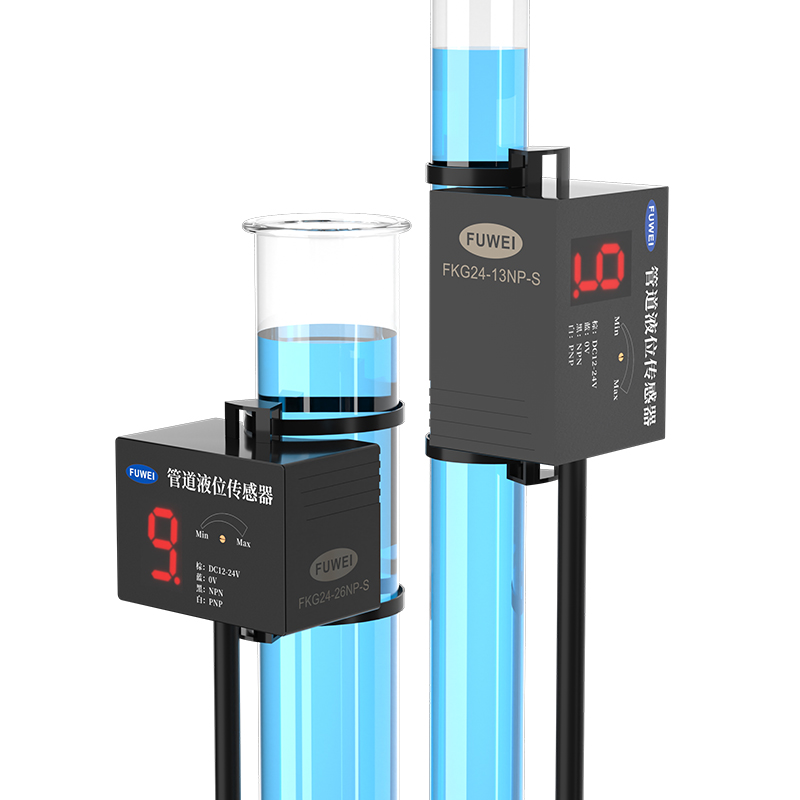

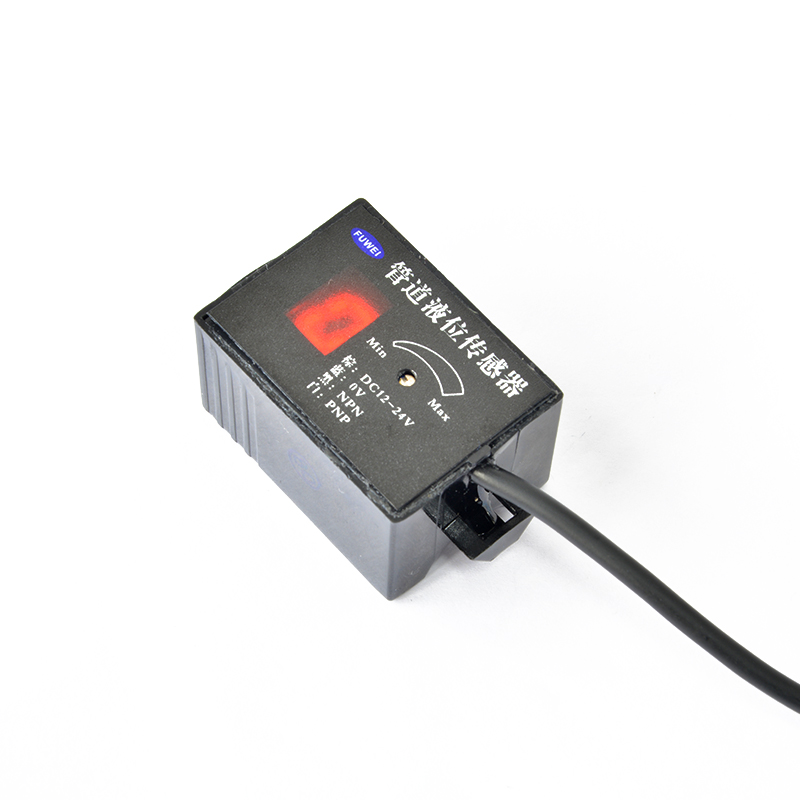

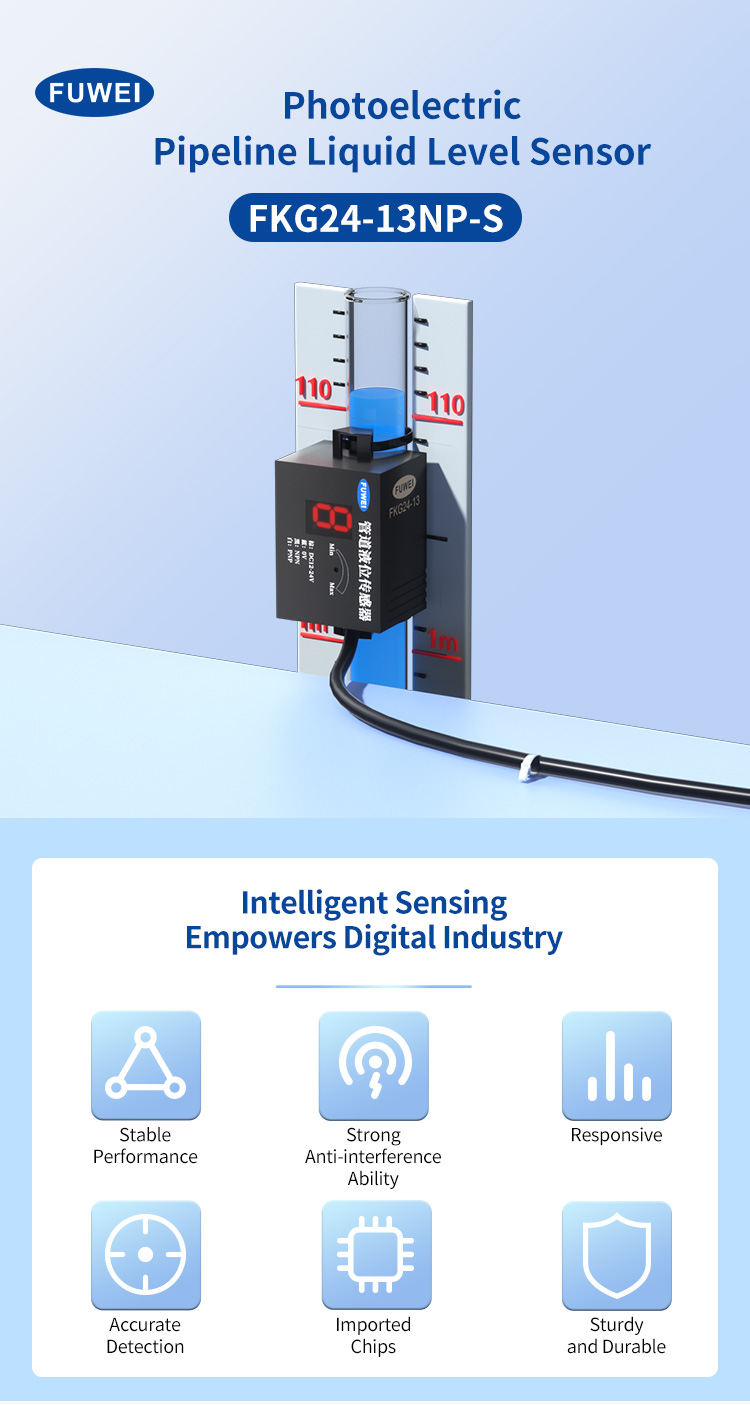

FKG24-13NP-S low level detection Capacitor tube level sensor

Model:FKG24-13NP-S

Capacitive principle, not easily affected by pipe material Two way output:NPN+PNP; Sensitivity potentiometer can be adjusted, simple operation; High accuracy of liquid level control, repeatability less than 5% ; No mechanical moving parts, high reliability;​

Performance Characteristics:

Capacitive principle, not easily affected by pipe material

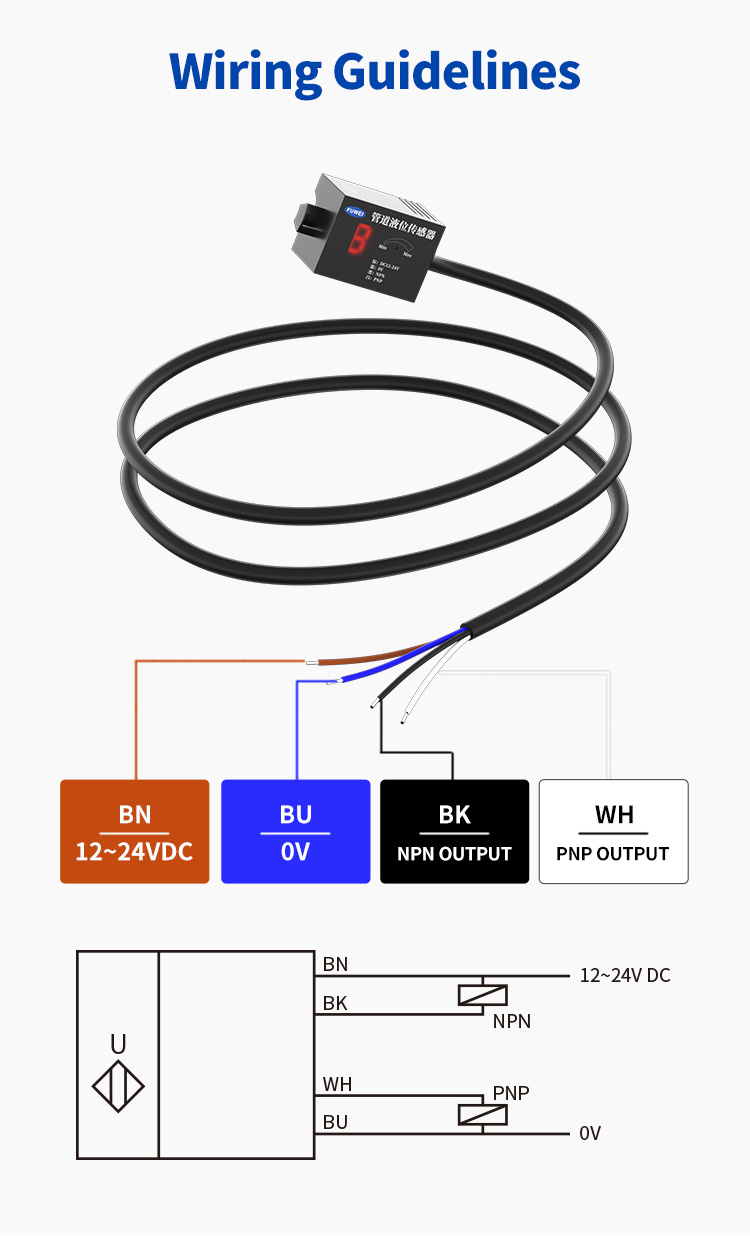

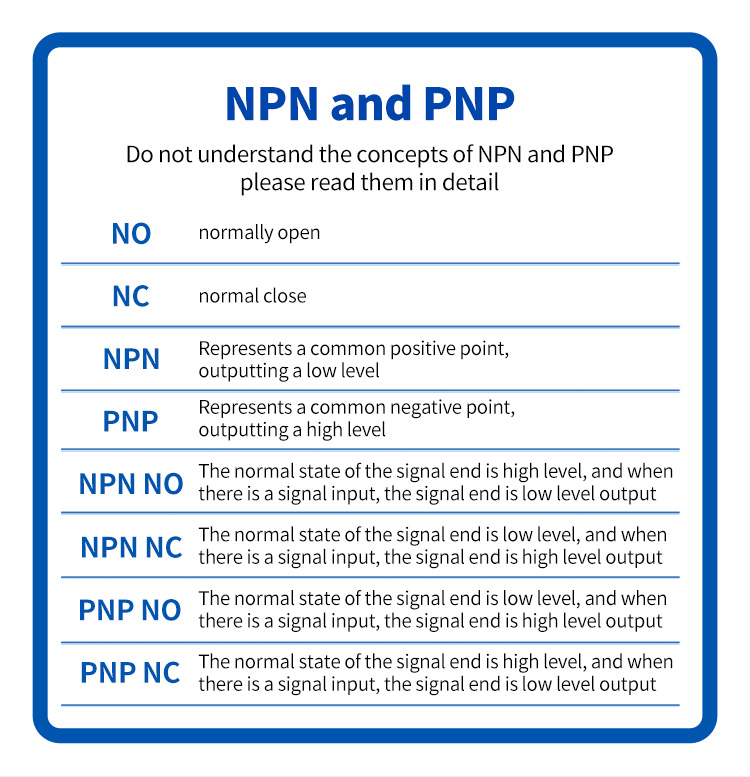

Two way output:NPN+PNP;

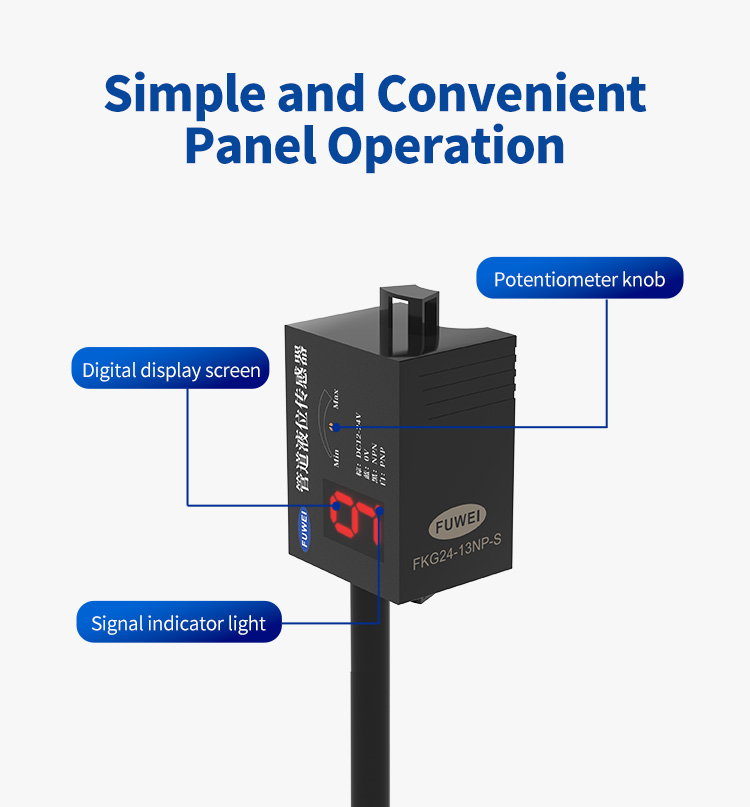

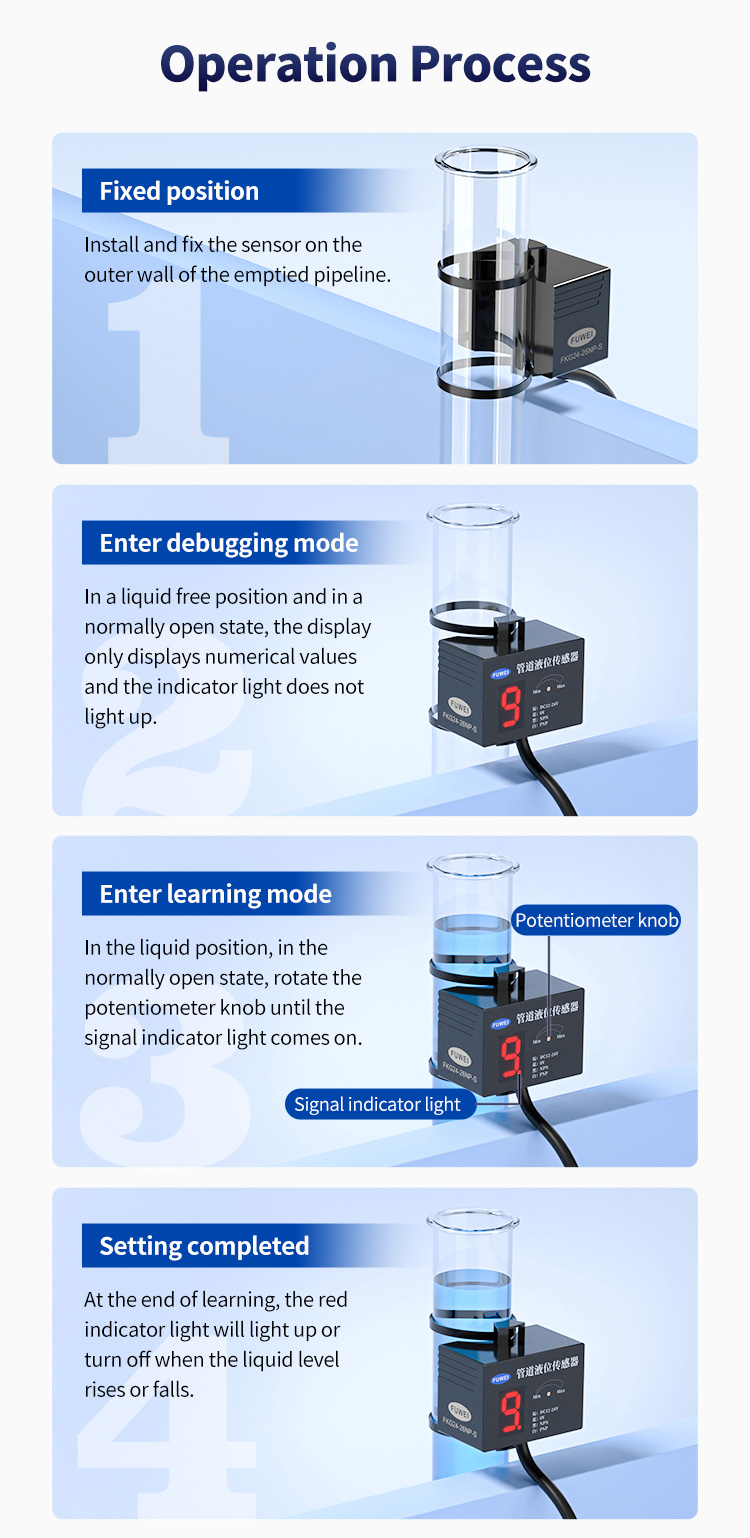

Sensitivity potentiometer can be adjusted, simple operation;

High accuracy of liquid level control, repeatability less than 5% ;

No mechanical moving parts, high reliability;

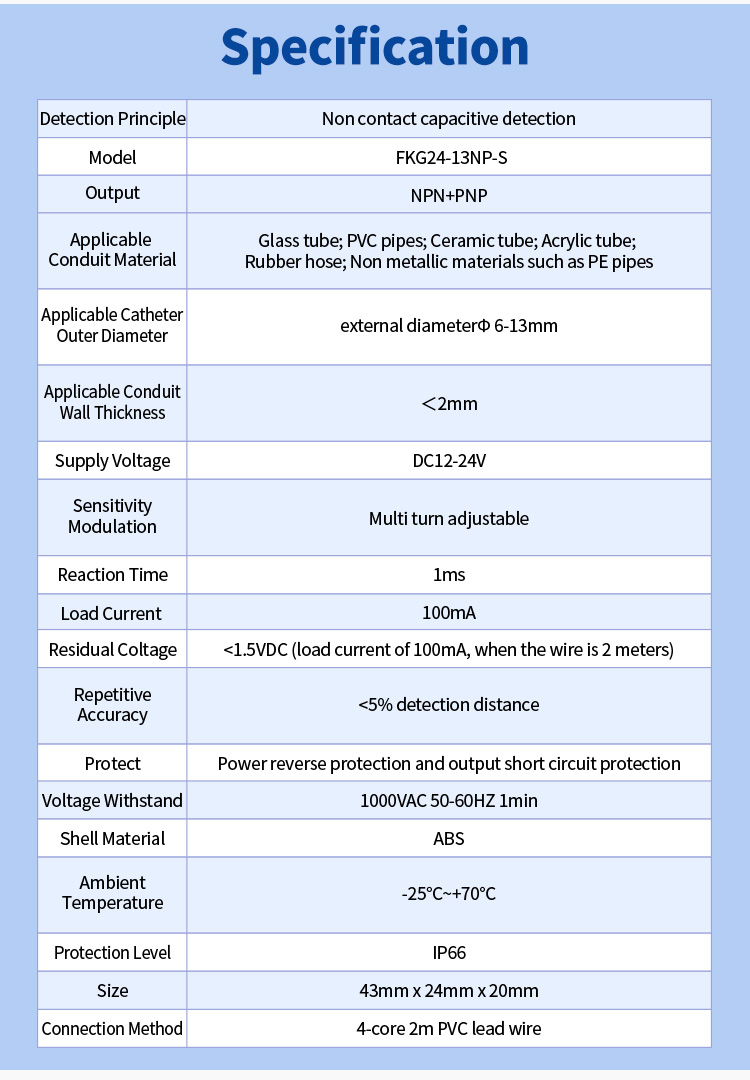

Specification:

Detection Principle
Non contact capacitive detection

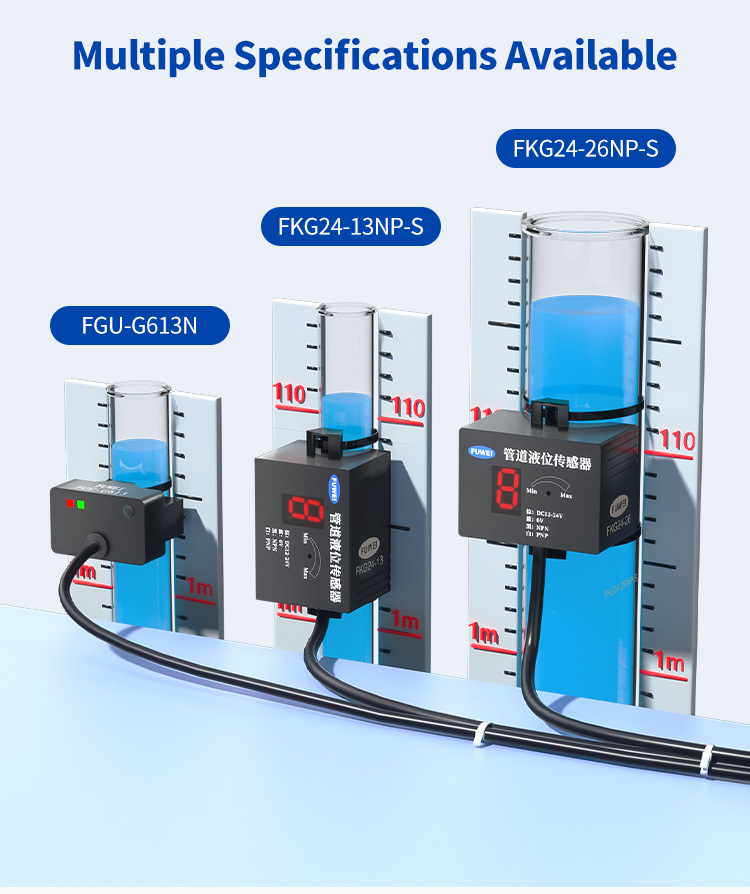

Model
FKG24-13NP-S
FKG24-26NP-S
Output
NPN+PNP

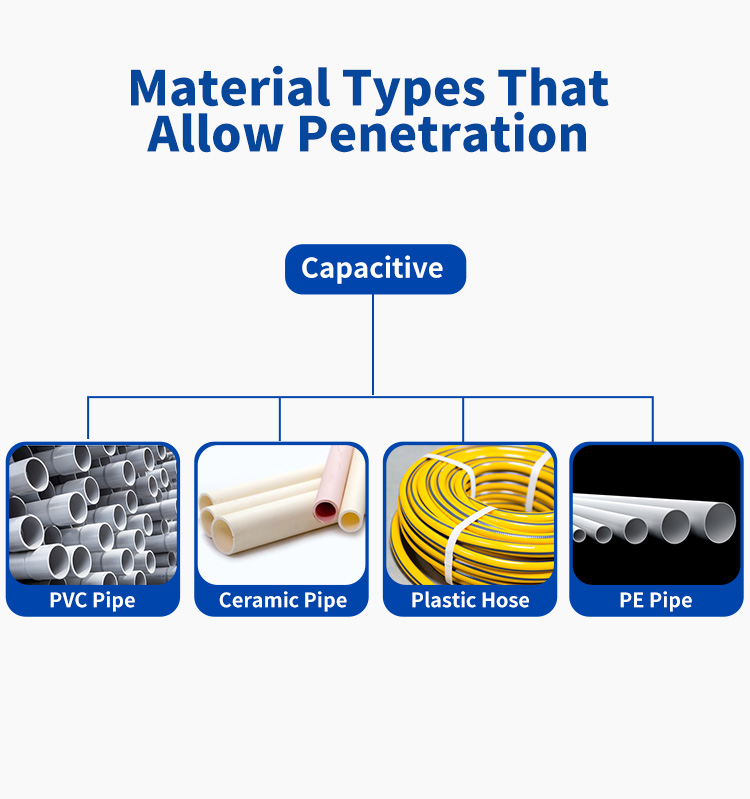

Applicable

Conduit Material

Glass tube; Pvc pipes; Ceramic tube; Acrylic tube;Rubber hose, Non metallic materials such as PE pipes
Applicable CatheterOuter Diameter
external diameterФ 6-13mm
external diameter Ф 12-26mm

Applicable Conduit

Wall Thickness

<2mm
<3mm
Supply Voltage
DC12-24V
Sensitivity

Modulation

Multi turn adjustable
Reaction Time
1ms
Load Current
100mA
Residual Coltage
<1.5VDC (load current of 100mA, when the wire is 2 meters)
Repetitive

Accuracy

<5% detection distance
Protect
Power reverse protection and output short circuit protection
Voltage Withstand
1000VAC 50-60HZ 1min
Shell Material
ABS
Ambient

Temperature

-25°C~+70°C
Protection Level
IP66

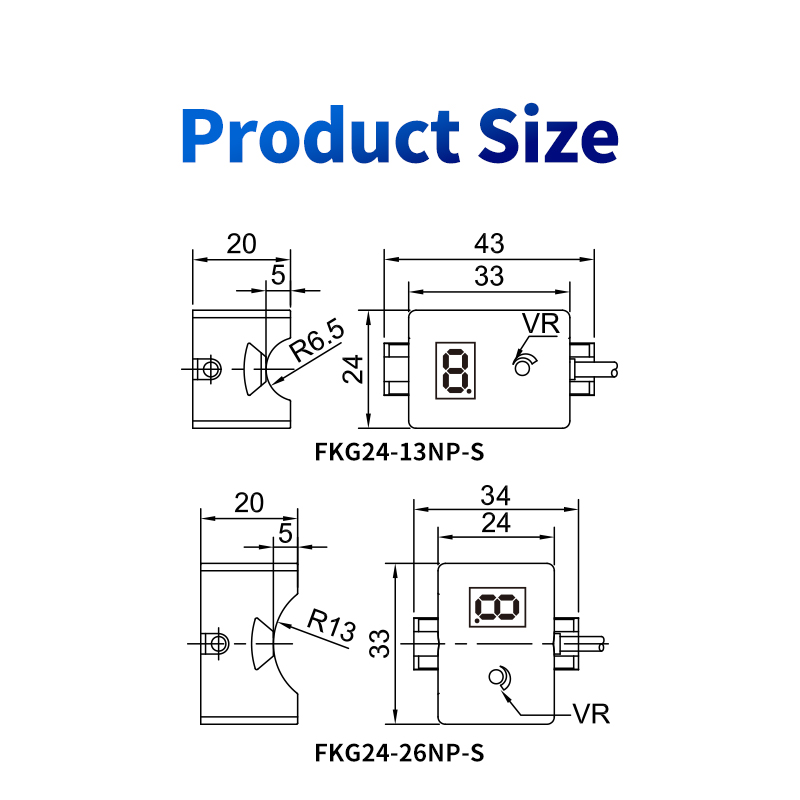

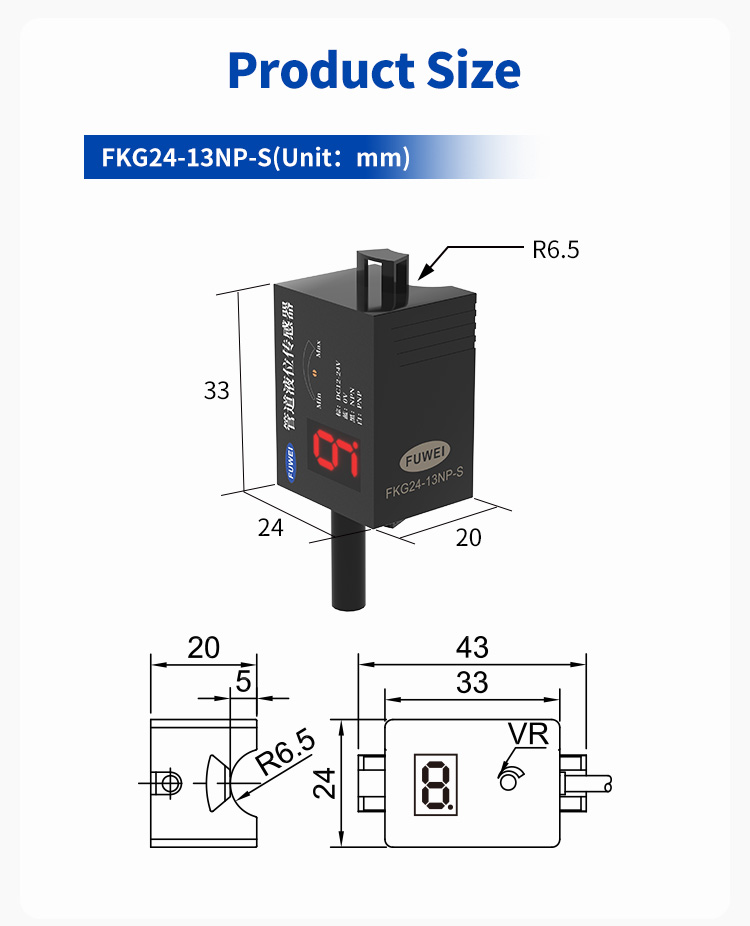

Size
43mmx24mm x20mm
33mm x 34mm x 20mm

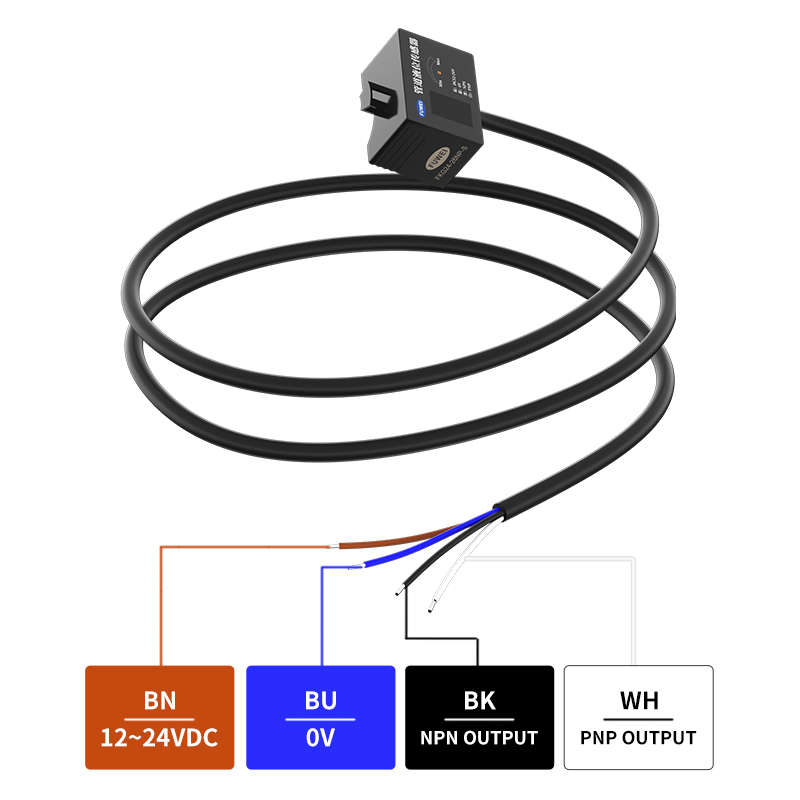

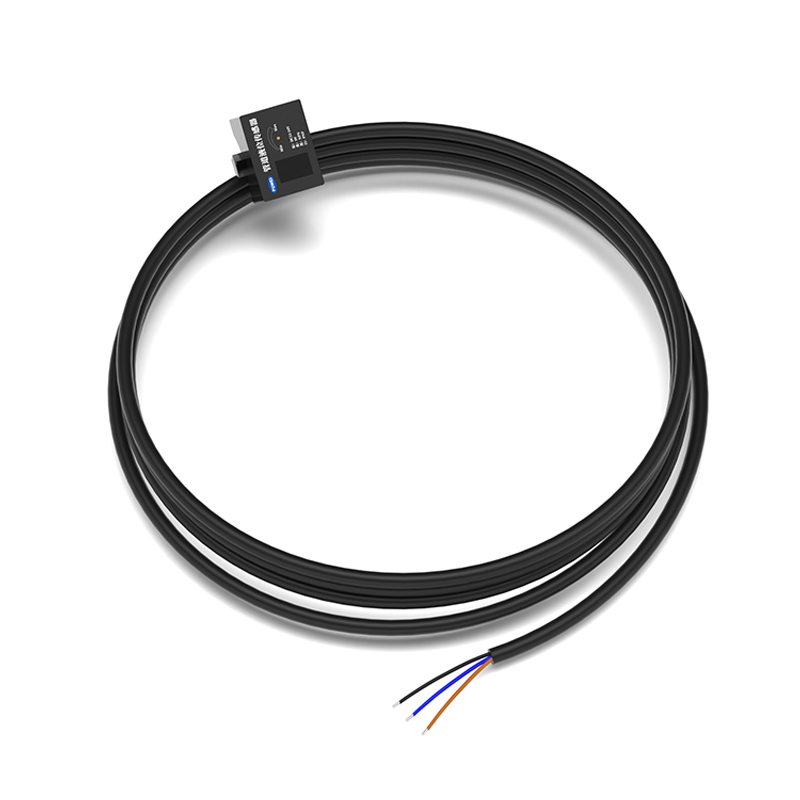

Connection Method

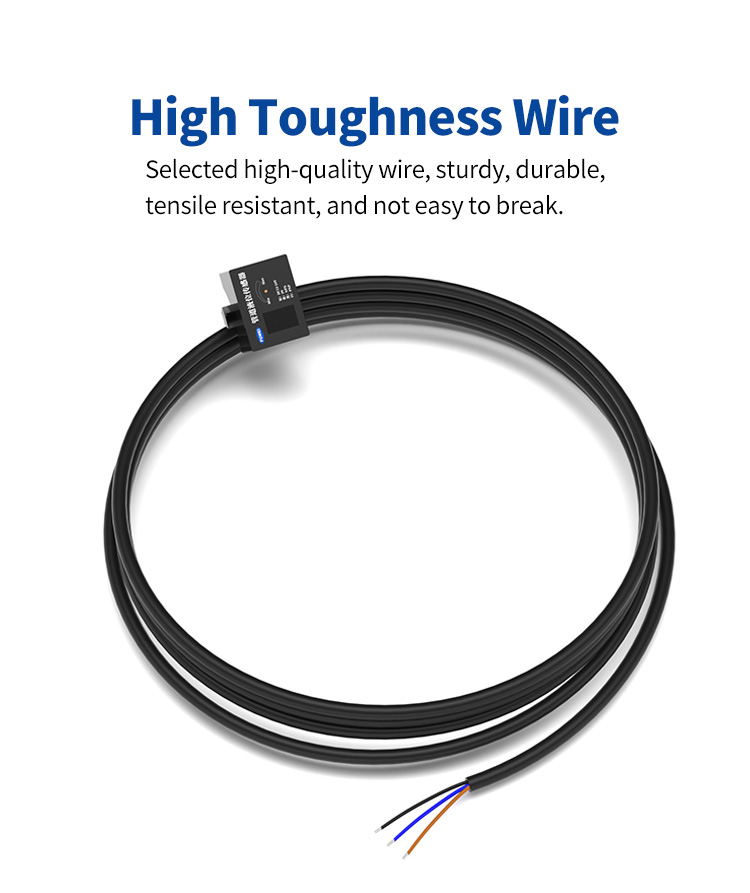

4-core 2m PVC lead wire
