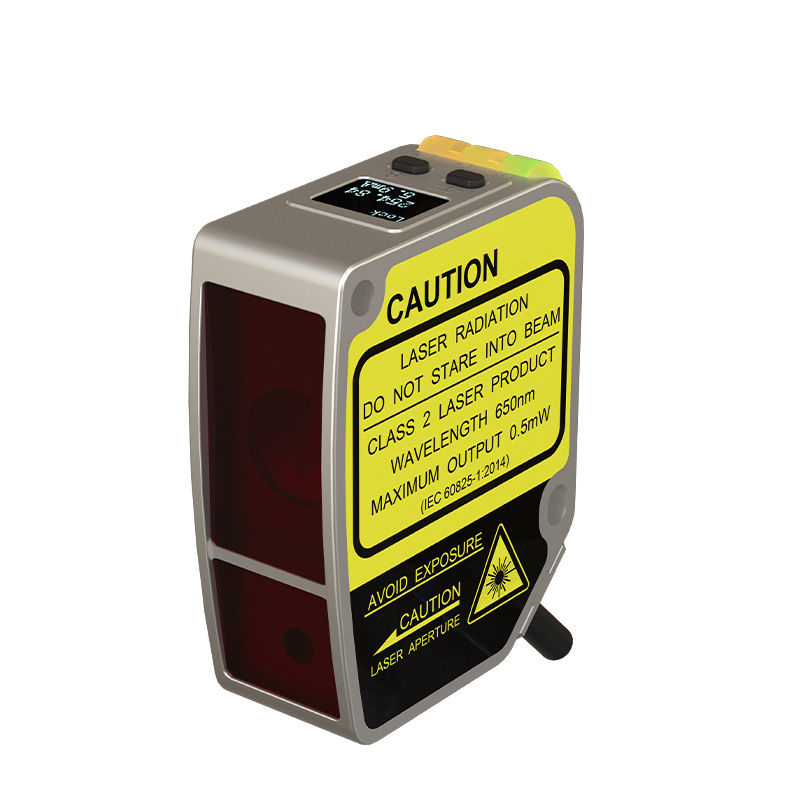

Product Characteristics：
Measuring range: 60-110mm
Output mode: with switch quantity and RS485 communication (support ModBus protocol)
Linearity accuracy: standard: ±0.3% F.S (60-110mm)
Repeatability: 60um
Resolution: 30um
Spot size: Φ0.5mm at 85mm
Accurate MeasurementCapability
High precision CMOS sensors and unique algorithms,with ultra-high linear accuracy, achieve non-contactand wear free measurement.

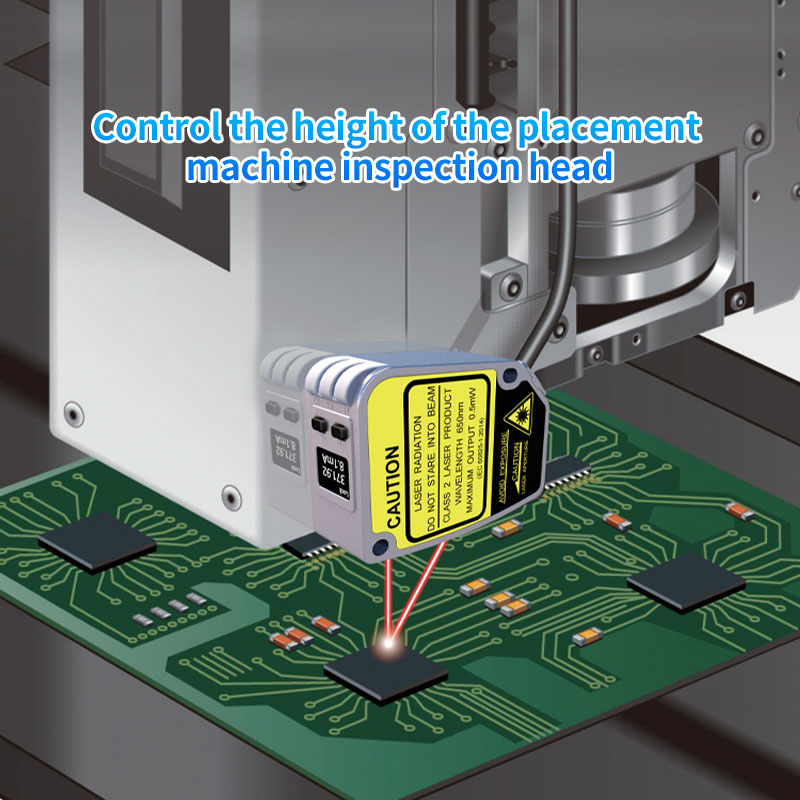

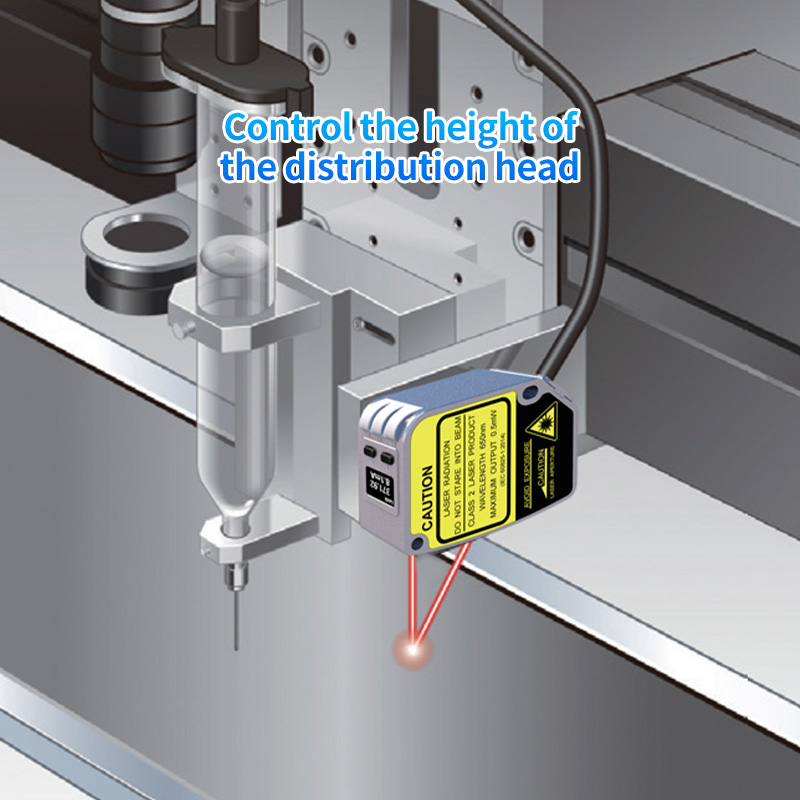

Detection Content:
Can Communicate Datawith Upper Level DevicesSuch as PLC
Using the RS-485 interface, up to 32 sensors can be connected(each sensor has a different address set separately), sendingrequest messages from the PLC and returning measurementvalues.
Tiny Laser Spot
Good black and white color difference, with a spot size ofonly0.5mm, can accurately detect small objects.
Powerful Operational Functions
Powerful operating functions: rich range and precisionoptions with different modes and filtering settings, combinedwith zero point setting, single point, window teaching,simulation mapping setting and other functions. Ensure stableand flexible process control and detection.
Flexible output Methods
Flexible output mode:built-in switch output (NPN/PNP/PULL-PUSH)+analog outputof 4.20mA or RS-485,and supports MODBUS protocol,without the need to connect to the controller, workingindependently,whetherit is a PLC or an industrial computer,it can be easily connected directly.
Digital Display
It is easy to set while confirmingthe displacement amount.
IP67
IP67 protection structure can be usedeven in environments with high levelsof moisture and dust. A metal liningtube is inserted into the installationhole and can be securely secured witha torque of0.8N ·m.
Convenient Installation
The functions of the controller areall integrated into the sensor,eliminating the need for additionalcontrollers to save space.
supports NPN/PNP polarity
By changing the wiring method,a product can be compatible withboth NPN/PNP polarities, therebyreducing the need for modelregistration for maintenance andupkeep.
Operation Paneland Functions

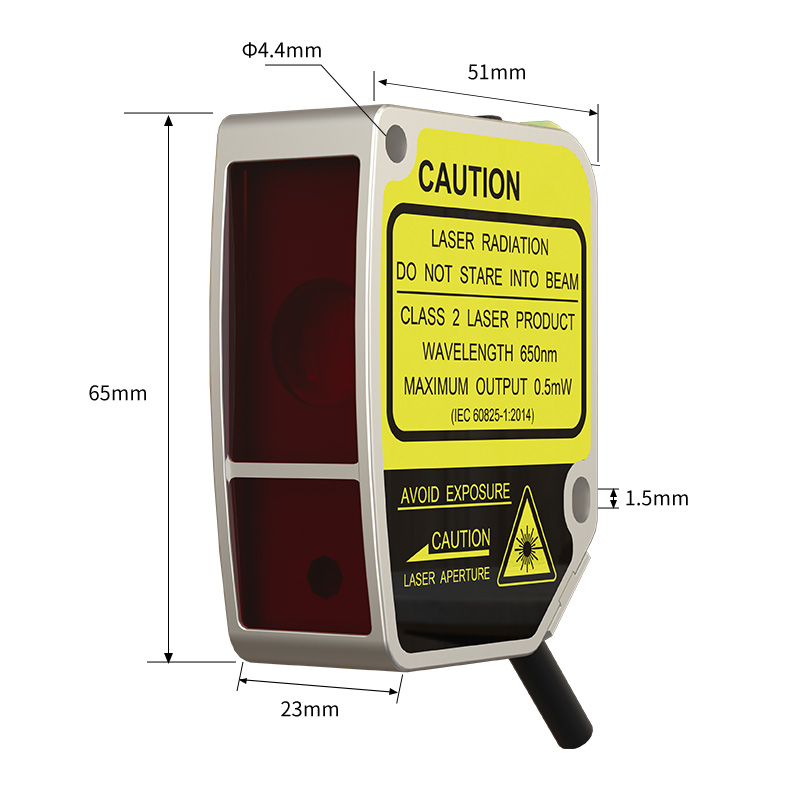

Product Size:
Wiring Guidelines:
Specification:
Part Number
RS-485 output
Power indicator:Green LED; Motion indicator:Yellow LED;
Alarm indicator:Yellow LED

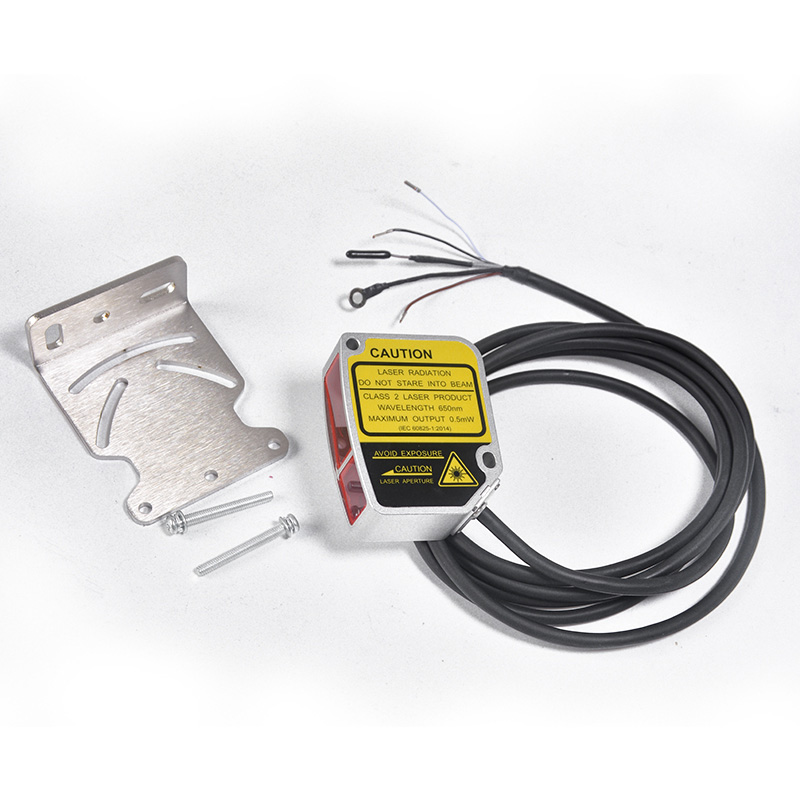

Screw(M4X35mm)X2、NutX2、Washer X 2、Mounting brackets 、
Operation manual
①Test conditions:Staiidard data at 23 ± 5 °C;Supply voltage 24VDC;30 minutes' warmup before test;
Sampling period 2ms;Average sampling times 100; Standard sensing object 90% white card
Digital Display Laser Displacement Sensor
FSD11-30-RS485-M
FSD11-50-RS485-M
FSD11-85-RS485
Measuring center distance
30mm
50mm
30mm
Measuring range
±5mm
±15mm
±25mm
Full range(F.S.)
10mm
30mm
50mm
Light spot size
Φ0.5mm@30mm
Φ0.5mm@50mm
Φ0.5mm@85mm
Resolution
2.5um@30mm
10um@50mm
30um@85mm
Repeated stabilily①②③
5um
20um
60um
Temperature drift
±0.08%F.S./°C
±0.02%F.S./°C
±0.04%F.S./°C
Linear accuracy①②
Please refer to the specification of specific models
Supply voltage
RS-485:10...30VDC;4...20mA:12...24VDC
Load current
200mA
Voltage drop
<2.5V
Light source type
Red laser(650nm); Laser level:Class 2
Dimension
65*51*23mm
Output 1
Digital value:RS-4S5(Support ModBus protocol);Analog:4...20mA(Load resistance<390Ω)
Output 2
Switch value:PUSH-PULL/NPN/PNP NO/NC Settable
Distance setting
RS-485:keypress/RS-485 setting;4... 20mA:keypress setting
Response time
2ms、16ms、 40ms Settable
Indicator
Display
OLED Display(Size: 14*10.7mm)
Built-in function④
•Slave address&Port rate setting •Zero set •Product self-check •Output setting •Parameter query •Average setting •Analog map settings •Single point teach •window teach •Factory default
Protection circuit⑤
Short circuit,reverse polarity,overload protection
Service environment
Operating temperature:-10.. .+50®C; Storage temperature :-20.. .+70°C Environment humidity:35...85%RH(No condensation)
Anti ambient light
Incandescent light:<3,000 lux
Protection degree
IP67
Material
Housmg:Aluminium;Lens cover:PMMA Display panel: PC
Vibration resistant
10...55Hz Double amplitude 1mm, 2hrs each for X,XZ direction
Impulse withsand
2m 5pin/4pin PVC cable (5pin: RS-485 output;4pin:Analog output)
Connection way
Remark:
②The statistical data follows the 3
③Repeat accuracy:23 ± 5 °C environment^。％ reflectivity white card, 100 test data results
④Slave address,baud rate setting only for RS-485 series
⑤ Protecion circuit only for switch output
