Performance Features:
Revolutionary ultra-small size adapts to a variety of installation environments;
Built-in controller with 4-digit display；
High performance comparable to the high end；
Repeatability: 1μm；
Industry's smallest and lightest weight; and
Easiest mounting/dismounting on equipment; and
Lightweight die-cast aluminum housing.
Effectively suppresses measurement errors due to mounting offset and temperature.
Specifications
|
Model |
Cable -based |
RS-485correspondence |
|
|
|
FSD23-150-RS485 |
|
M12 Plugga- ble |
Analog currentoutput |
FSD23-15-AA |
FSD23-35-AA |
FSD23-100-AA |
FSD23-150-AA |
|
|
Analog voltage output |
FSD23-15-AV |
FSD23-35-AV |
FSD23-100-AV |
FSD23-150-AV |
||
|
RS-485 correspondence |

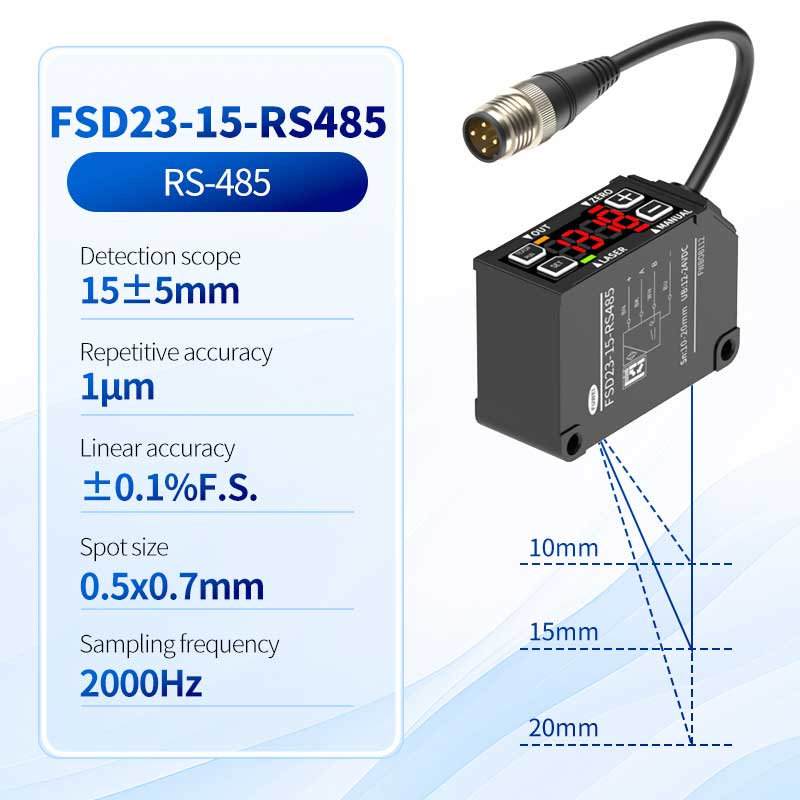

FSD23-15-RS485 |
FSD23-35-RS485 |
FSD23-100-RS485 |
- | ||
|
Detection distance (center position) |
15mm | 35mm | 100mm | 150mm | ||
|
Detection range |
±5mm |
±15mm |
±50mm |
±100mm |
||
|
Full Scale (F.S.) |
10mm |
30mm |
100mm |
200mm |
||
|
light source |
medium*wavelength |
Red diode laser |
wavelength:655mm |
|||
|
Maximum output power |
390μW |
lmW |
||||
| Laser class |
ICE/JIS |
Class 1 |
Class 2 |
|||
|
FDA |
Class l |
Class ll |
||||
|
Spot size※2 |
0.5*0.7mm |
0.45*0.8mm |
0.6*0.7mm |
0.50*0.55mm |
||
|
Linear accuracy |
士0.1%F.S. |
|||||
|
Repeatability※3 |
1μm |
6μm |
20μm |
60μm |
||
|
Adoption cycle |
500μS/1000μS/4000μS/AUTO |
|||||
|
Temperature DriftCharacteristics (Reference Value) |
±0.02%F.S./°C |
士0.05%F.S./C |
士0.08%F.S./°C |
|||
|
light |
Laserworking indicator (green) /zero setting indicator (red)/switching output indicator(orange)/Mode indicator (red) |
|||||
|
External input function |
RS485 models such as laser off, remote teaching, sample hold, single pulse trigger and zero reset do not have external input functions |
|||||
|
Analog output |
Analog current type |
The output is 4~20mA, and the allowable load resistance is 3000 or less |
||||
|
Analog voltage type |
The output is 0~10V, and the output impedance is 100Ω |
|||||
|
Switching output※5 |
Open collector output (NPN/PNP switchable) Max 100mA/DC30vResidual voltagel.8V |
|||||
|
Supply voltage |
Analog current/-485 communication type:DC12-24V+10%;Analogvoltage type: DC18-24V±10% |
|||||
|
Current consumption※4 |
700mA or less |
|||||
|
Pluggable connectors |
M12 5-pin connector (with 300mm cable) |
|||||
