The FUWEI FLR-2000N-UIR Digital Laser Displacement Sensor,
a product of China leading manufacturer and supplier,
offers competitive pricing while maintaining exceptional quality,
ensuring accurate and reliable measurements for various industrial applications.
There are three ranges of 20 meters, 50 meters, and 100 meters to choose from. It uses phase measurement to determine distance, and its precise optics ensure high accuracy even in outdoor and harsh environments.

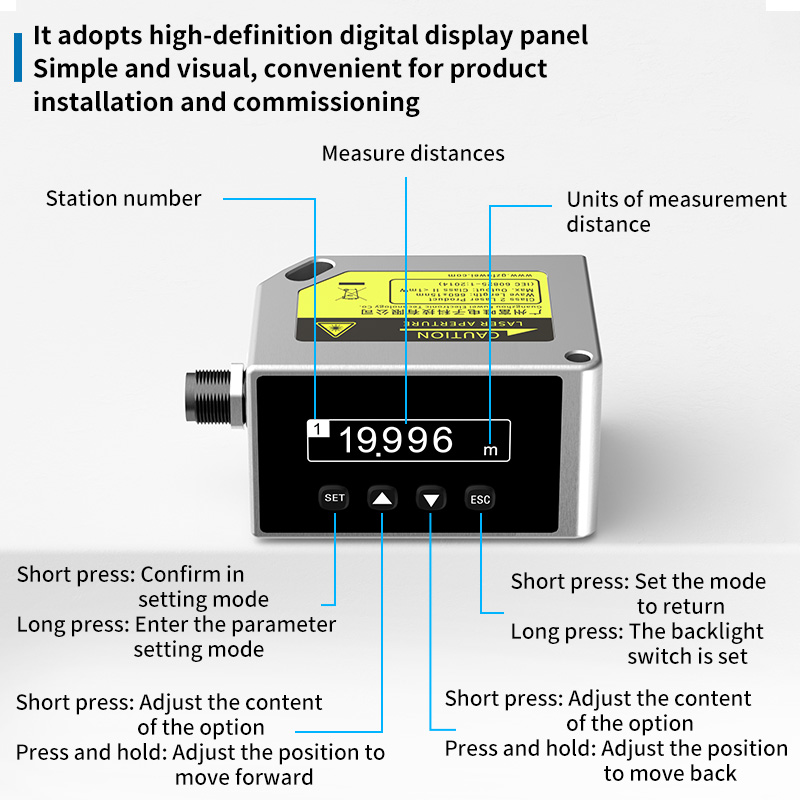

The metal die-casting housing has an IP67 safety protection level, and it comes with a keypad and display for easy setting of instrument parameters.
High accuracy: ±(2mm+d * 0.0001)
Fast speed: 1Hz-40Hz.
Output interface: Integrates RS232/RS485, 2 relay outputs, voltage/current output.
RS485 supports ModBus protocol and supports network configuration.
The laser distance sensor can detect material level/liquid level detection,
forklift anti-collision protection, distance measurement, and mobile positioning,
and is widely used in port automation, intelligent logistics, intelligent warehousing, AGV, intelligent manufacturing and other industries.
|
Specifications |
|
|
Model |
FLR-2000N-UIR |
|
Measure distances |
0.2m-20m |
|
Output |
RS485/232+analog voltage currentoutput+NPN output |
|
Voltage/current output |
0~5V/0~10V/4~20mA/0~20mA/0~24mA output can be set |
|
Voltage output error |
0.2%+0.5mV |
|
Current output error |
0.2%+0.005mA |
|
Communication interface |
RS232/RS485(switchable) |
|
Measurement frequency |
1Hz-40Hz |
|
Laser type |
Class IⅡ,660±15nm,≤1mW |
|
Measure resolution |
1mm |
|
Measurement error |
±(2mm+d*1/10,000） |
|
Indicator light |
Red laser |
|
Spot size |
@1m O6mm;@10m O8mm;@20m 012mm |
|
Display screen |
128x32 dot matrix screen |
|
Backlight off time |
30 minutes (can be set to normally open) |
|
Mode of operation |
Closed measurement,continuous measurement |
|
Transistorswitching output |
2 channels(not more than DC36V0.5A) |
|
Power supply |
DC15~30V |
|
Power consumption |
<3.0W |
|
Ingress protection |
IP67 |
|
Housing material |
Die-cast zinc alloy |
|
Operating temperature |
10℃~50℃ |
|
Store at temperature and humidity |
-20℃~60℃,20%~85%RH |
|
Overheatprotection |
Thefuselage temperature is above 70℃to close the measurement and below 70℃to recover |
|
Fuselage size |
86.45x40x58mm (with connector) |
