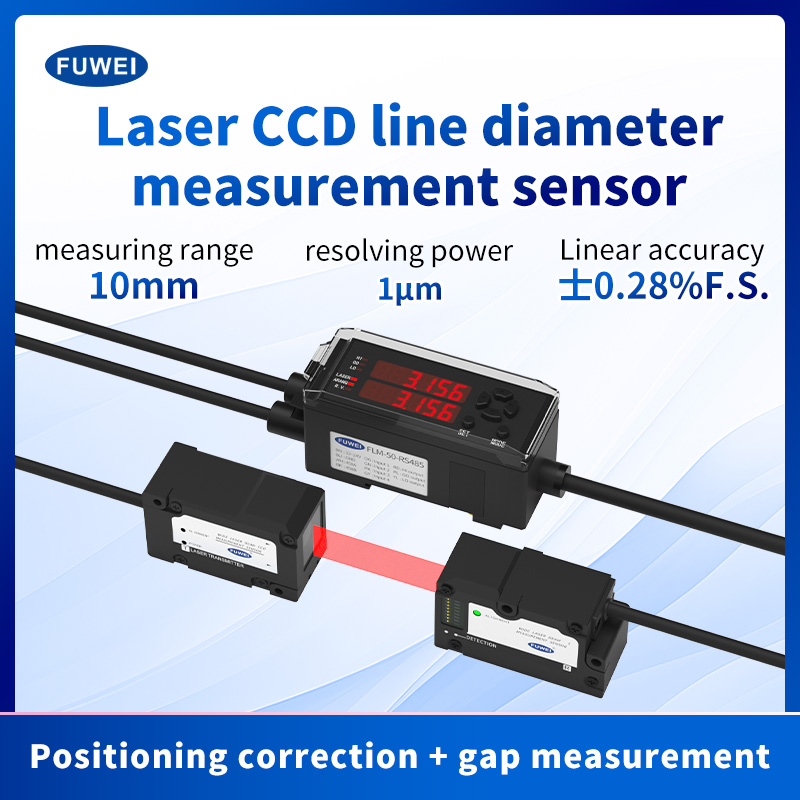

The FUWEI FLM-50-RS485 Digital Laser Displacement Sensor, a product of China's leading manufacturer and supplier, offers competitive pricing while maintaining exceptional quality, ensuring accurate and reliable measurements for various industrial applications.
|
Specification |
|
|
FLM-50-RS485 Controller |
|
|
Supply Voltage |
12~24VDC |
|
Consumption Vurrent |
≤900mA(includingtransmitter and receiver) |
|
Display Resolution |
lμm |
|
Display Range |
-99.999~99.999 |
|

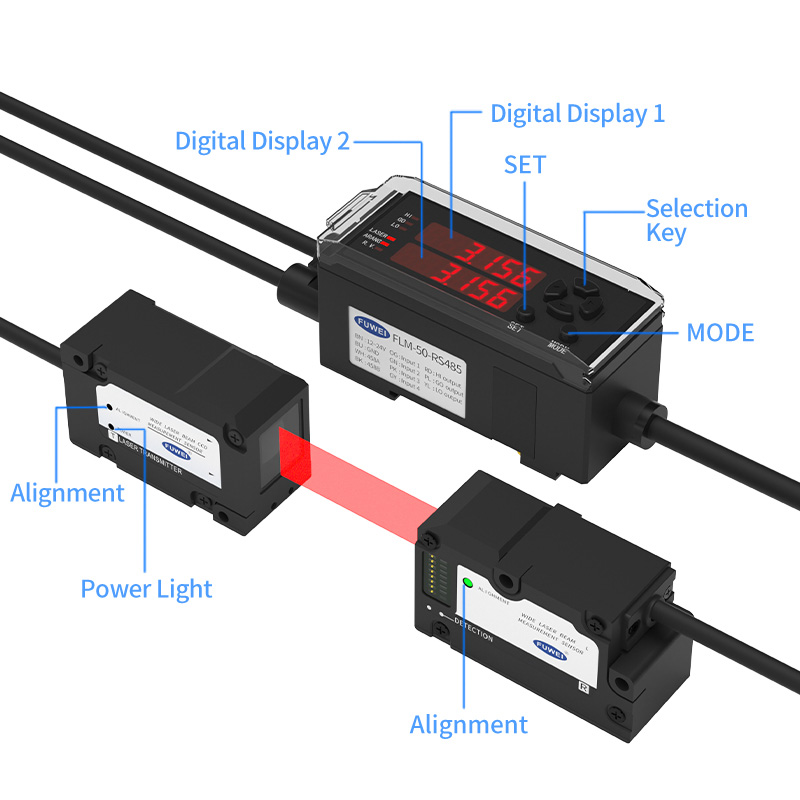

Display Method |
Dual position 8-segment display; Upper and lower levels:red,6 digits |
|
Response Time |
2ms |
|
Output1 |
NPN.NC |
|
Output 2 |

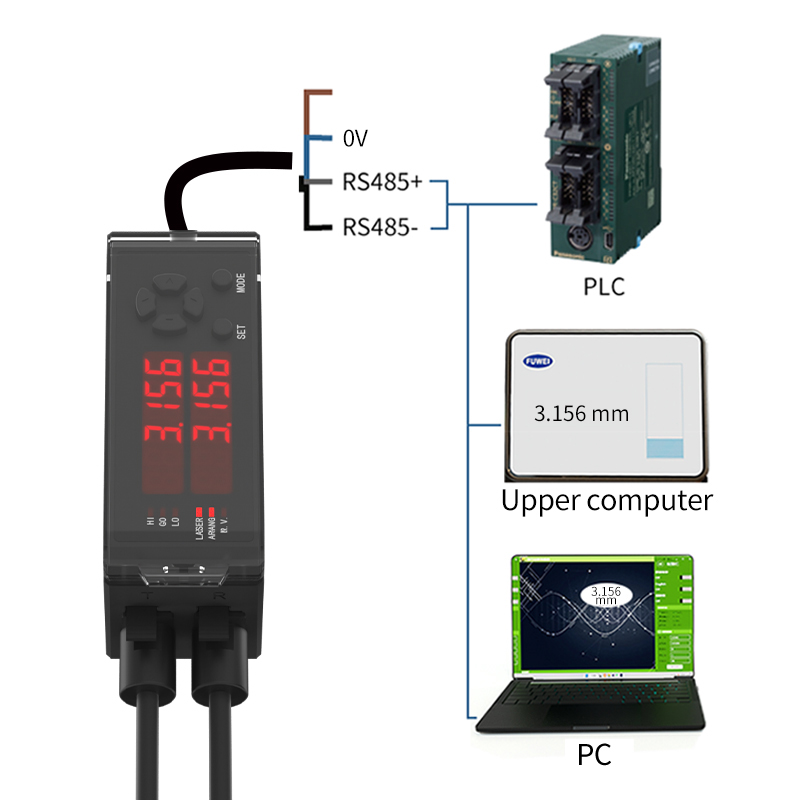

RS485 |
|
Ambient Temperature |
-10~+45℃(No freezing) |
|
Ambient Humidity |
35~85%RH (without frost) |
|
Shell Material |
plastics |
|
Installation Method |
DIN-Rail Mounting |
|

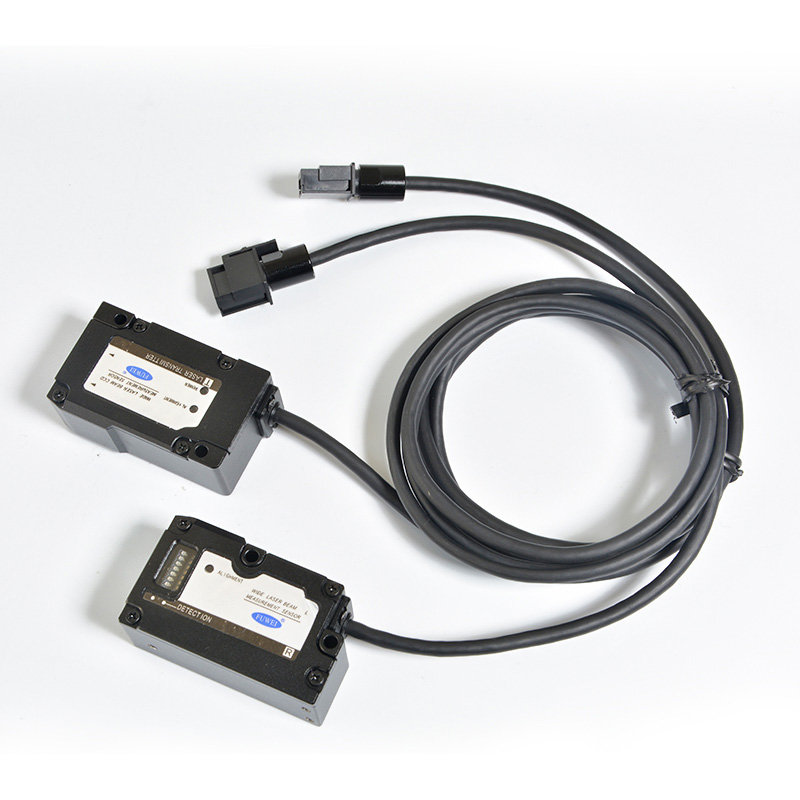

FLM-50-RS485 Receiver and Emitter |
|
|
Measuring Range |

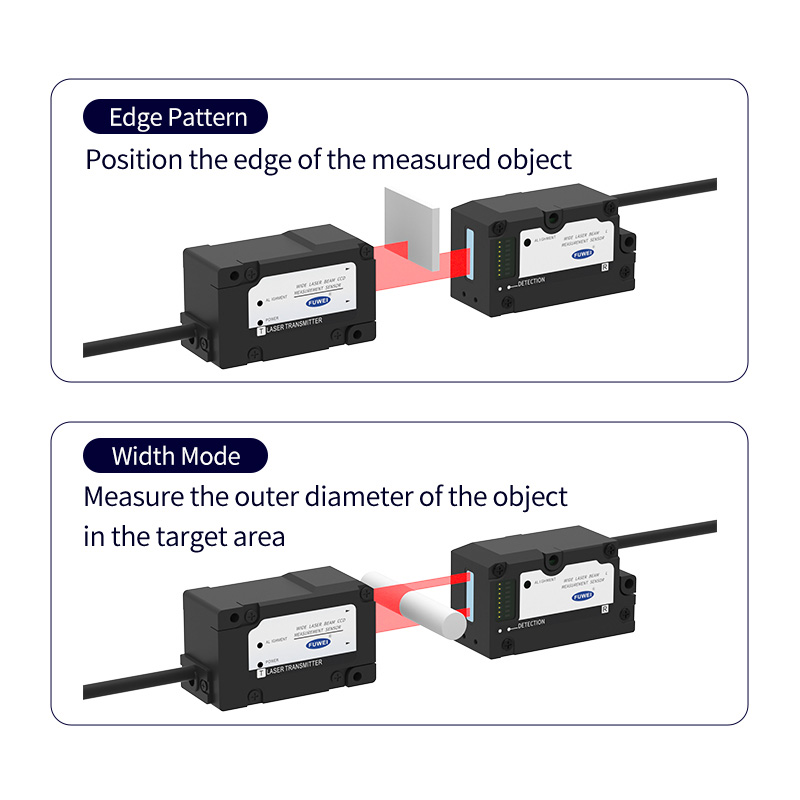

Width mode:10mm;Edge mode:±5mm |
|
Installation Spacing |
0~500mm |
|
Minimum Detection Object |
φ1mm (setdistance:500mm) |
|
Light Source |
Red semiconductor laser(laser level:Class 1) |
|
SpotSize |
14x12mm |
|
Supply Voltage |
12~24V |
|
PressureDrop |
<2.5V |
|
Linear Accuracy |
±0.28%F.S. |
|
Repeatability |
10μm(set distance:100mm);15μm (set distance:500mm) |
|
Overall Dimensions |
Emitter:55x32×23mm;Receiver:55x32x23mm |
|
Temperature Drift |
±0.08%F.S./℃(±8μm/℃) |
|
Indicator Light(Emitter) |
Optical axis calibration indicator light:green LED; Power indicator light:green LED |
|
Indicator Light(Receiver) |
Optical axis calibration indicator light:green LED; Position display:Double bar LED (yellow,green) |
|
Resistance to Ambient Light |
Incandescentlamp:less than 3,000lux |
|
Protection Grade |
IP50 |
|
AmbientTemperature |
-10~45℃(without frost) |
|
Ambient Humidity |
35~85%RH(without frost) |
|
Shell Material |
aluminium |
|

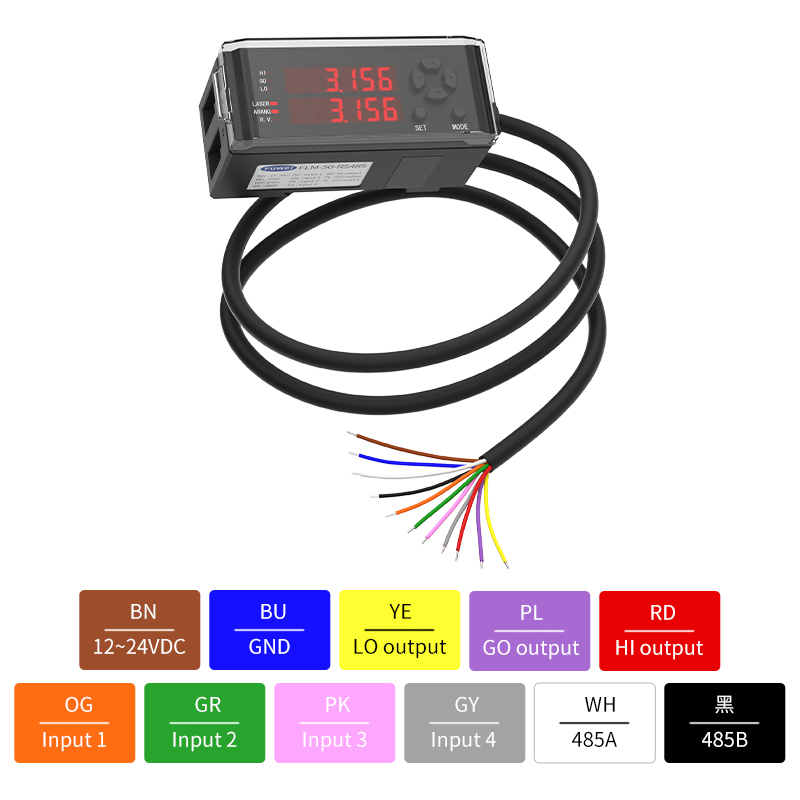

Connection Method |
PVC leads |
