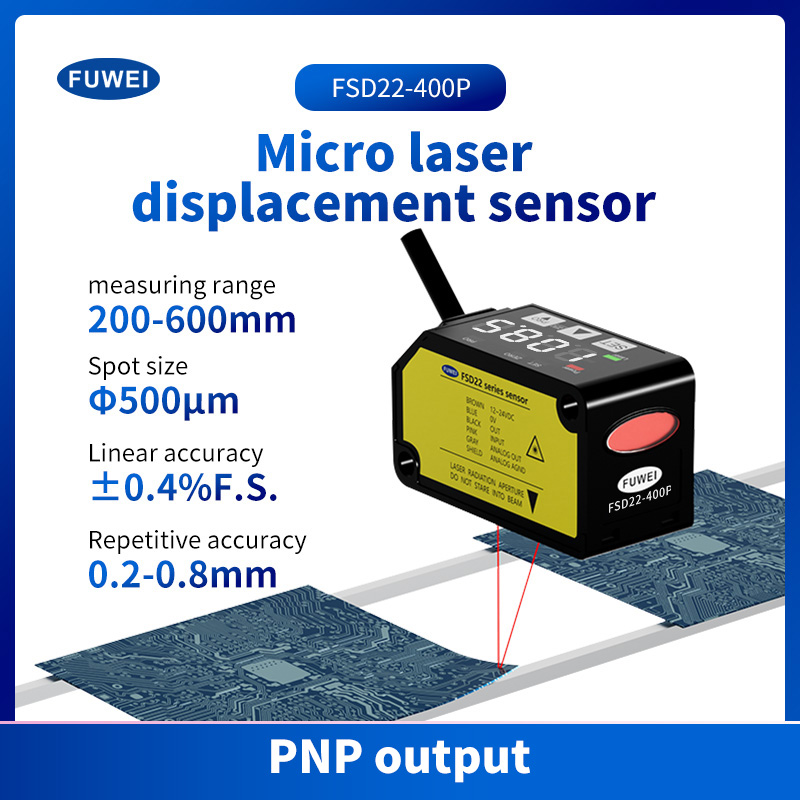

Product Characteristics：
Part number：FSD22-400P-UI
Measurement center distance：400mm
Measurement range：±200mm
Repeatability：300μm (measurement distance 200 to 400mm)
800μm (measurement distance 400 to 600mm)
Linearity：±0.3%F.S. (measurement distance 200 to 400mm)
±0.4%F.S. (measurement distance 400 to 600mm)
Beam diameter ：Approx. ø500μm
Control output：PNP
Supply voltage：12 to 24V DC ±10%, Ripple P-P 10% or less
Analog voltage output：Output range: 0 to +5V (at alarm: +5.2V)
Analog current output：Output range: 4 to 20mA (at alarm: 0mA)
Response time：Switchable between 1.5ms / 5ms / 10ms
Protection：IP67
Ambient temperature：-10 to +45°C (No dew condensation or icing allowed), Storage:-20 to +60°C
Cable:0.2mm2 5-core composite cable, 2m long

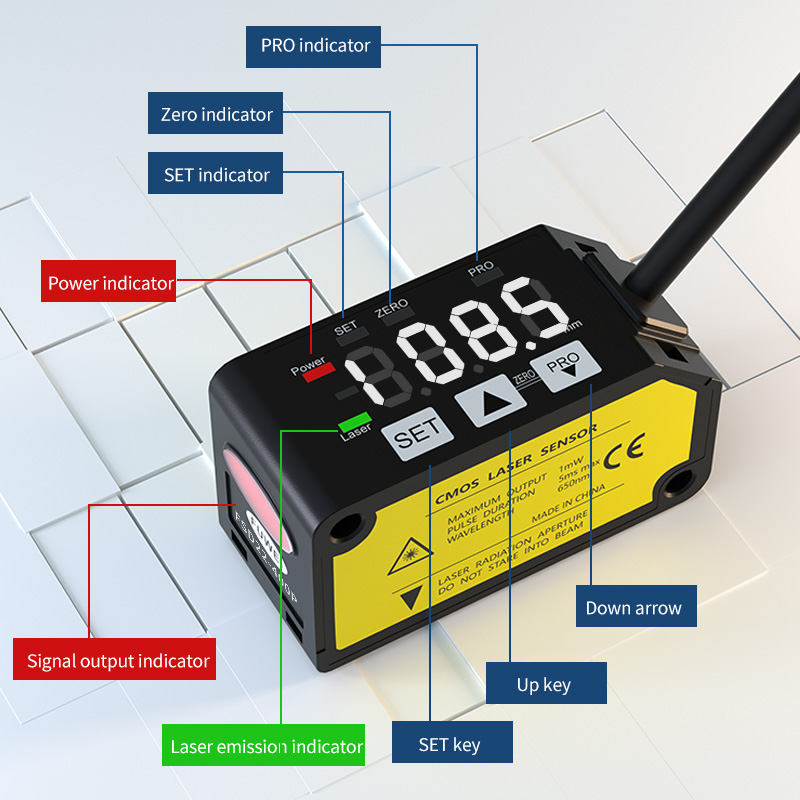

Panelintroduction：
High-precision CMos images are usedSensor's unique algorithm
A high-precision CMOS image sensor used in a displacement sensor is usedand our unique algorithm that has been used in displacement sensorsUnprecedented accuracy(1/100mm) of a distance-setting reflective sensor
Equipped with OV~+5V analog voltage outputAnalog current output of 4mA~20mA

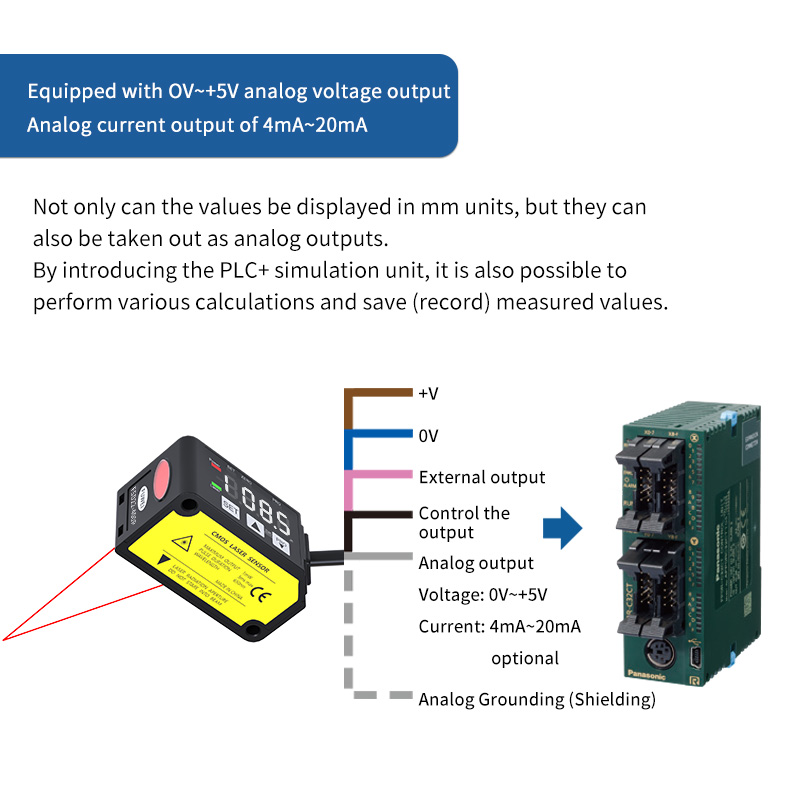

Not only can the values be displayed in mm units, but they canalso be taken out as analog outputs.Byintroducing the PLC+ simulation unit, it is also possible toperform various calculations and save (record) measured values
Zeroing function
This is a function that allows you to forcibly zero the measured value. The zeropoint can be arbitrarily determined, Set the height of the detected object to thebase value it can be used easily when measuring tolerances or when measuringsection differences.
Equipped with convenient onesSwitching setting function
When there is a detection object on the sensor side, the detectioncan be set according to the background objectBenchmark value.It is a convenient function to detect changesin the size of an object.
(When using the detected object as the base)
Set the reference value on the side of the background object based on thedetected object. Stay away from the background Body time to use.
Scene application：
Detect the warpage ofthe substrate

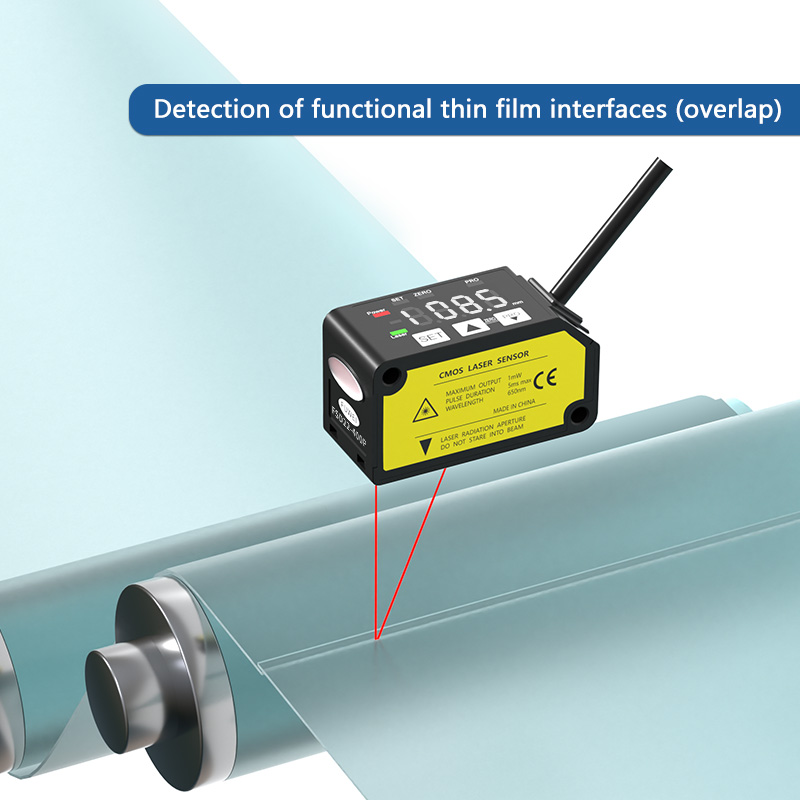

Detect overlap of lead frames
Judgment of the front and back ofthe housing of electronic components
Detect the presence orabsence of gaskets
Dimensions wiring：
Product Showcase：
Parameter specifications：
|
Type |
Measurement center 30mm type |
Measurement center 50mm type |
Measurement center 100mm type |
Measurement center 200mm type |
Measurement center 400mm type |
|
|
Analog+NPN output |
FSD22-30N-UI |
FSD22-50N-UI |
FSD22-100N-UI |
FSD22-200N-UI |
FSD22-400N-UI |
|
|
Analog+PNP output |
FSD22-30P-UI |
FSD22-50P-UI |
FSD22-100P-UI |
FSD22-200P-UI |
FSD22-400P-UI |
|
|
Measurement center distance |
30mm |
50mm |
100mm |
200mm |
400mm |
|
|
Measurement range |
±5mm |
±15mm |
±35mm |
±80mm |
±200mm |
|
|
Beam diameter (Note 3) |
Approx. ø50μm |
Approx. ø70μm |
Approx. ø120μm |
Approx. ø300μm |
Approx. ø500μm |
|
|
Repeatability |
10μm |
30μm |
100μm |
200μm |
300μm (measurement distance 200 to 400mm) 800μm (measurement distance 400 to 600mm) |
|
|
Linearity |
±0.3%F.S. |
±0.3%F.S. |
±0.3%F.S. (measurement distance 200 to 400mm) ±0.4%F.S. (measurement distance 400 to 600mm) |
|||
|
Temperature characteristic |
0.03%F.S./°C |
|||||
|
Light source |
Red semiconductor laser Class 2 [JIS / IEC / GB / FDA (Note 2)] Max. output: 1mW, Emission peak wavelength: 655nm |
|||||
|
Supply voltage |
12 to 24V DC ±10%, Ripple P-P 10% or less |
|||||
|
Power consumption |
40mA or less (at 24V DC supply voltage), 65mA or less (at 12V DC supply voltage) |
|||||
| Control output |
NPN open-collector transistor •Maximum sink current: 50mA •Applied voltage: 30V DC or less (Between control output to 0V) •Residual voltage: 1.5V or less (At 50mA sink current) •Leakage current: 0.1 mA or less |
PNP open-collector transistor •Maximum source current: 50mA •Applied voltage: 30V DC or less (Between control output to +V) •Residual voltage: 1.5V or less (At 50mA source current) •Leakage current: 0.1 mA or less |
||||
|
Switchable either Light-ON or Dark-ON |
||||||
|
Incorporated (Auto reset type) |
||||||
|
Analog output |
Analog voltage output |
•Output range: 0 to +5V (at alarm: +5.2V) •Output impedance: 100Ω |
||||
|
Analog current output |
•Output range: 4 to 20mA (at alarm: 0mA) •Load impedance: 300Ω or less |
|||||
|
Response time |
Switchable between 1.5ms / 5ms / 10ms |
|||||
|
External input |
NPN non-contact input •Input conditions Invalid: +8 to +V DC or Open Valid: 0 to +1.2V DC •Input impedance: Approx. 10kΩ |
PNP non-contact input •Input conditions Invalid: 0 to +0.6V DC or Open Valid: +4 to +V DC •Input impedance: Approx. 10kΩ |
||||
|
Protection |
IP67 (IEC) |
|||||
|
Degree of pollution |
2 |
|||||
|
Ambient temperature |
-10 to +45°C (No dew condensation or icing allowed), Storage: -20 to +60°C |
|||||
|
Ambient humidity |
35 to 85% RH, Storage: 35 to 85% RH |
|||||
|
Ambient illuminance |
Incandescent lamp: Acceptance surface illuminance 3,000ℓx or less |
|||||
|
Operating altitude |
2,000m or less |
|||||
|
Cable |
0.2mm2 5-core composite cable, 2m long |
|||||
|
Material |
Enclosure: Aluminum die-cast, Front cover: Acrylic |
|||||
|
Weight |
approx. 85g (including cable) |
|||||
|
Applicable standard |
EMC Directive Compliance, FDA Standard, UL Recognition |
|||||
|
Notes: |
|
|
|
|
|
|
|
1) Supply voltage: 24V DC, ambient temperature: +20°C, response time: 10ms, and analog output value of measurement center distance are used for unspecified measurement conditions. The subject is white ceramics. |
||||||
|
2) This is based on the FDA Standard, according to Laser Notice No. 50 of the FDA Standard. |
||||||
|
3) This is the size in the measurement center distance. These values were defined by using 1/e2 (approx. 13.5%) of the center light intensity. Due to leak light outside the specified area, the reflectance around the detecting point may be higher than at the point and this may affect the measurement value. |
||||||
