Model:FJC02 Series

High-precision scale absolute measurement mode. Multi-digit digital display of the measured value. Resolution up to 0.1um. Maximum accuracy up to 1um, no cumulative error. RS485 communication output.

QR Code

Amplifier
Type	NPN	PNP
model	FJC02-71N	FJC02-71P
Display Range	-29.999~29.999
Display Resolution	1um
Response Time	10ms,50ms,100ms，500ms，1000ms
Supply Voltage	12-30 VDC including 10% pulsation (P-P), CLass 2
Power Consumption	Maximum 2200mW (maximum 73.3mA at 30V)

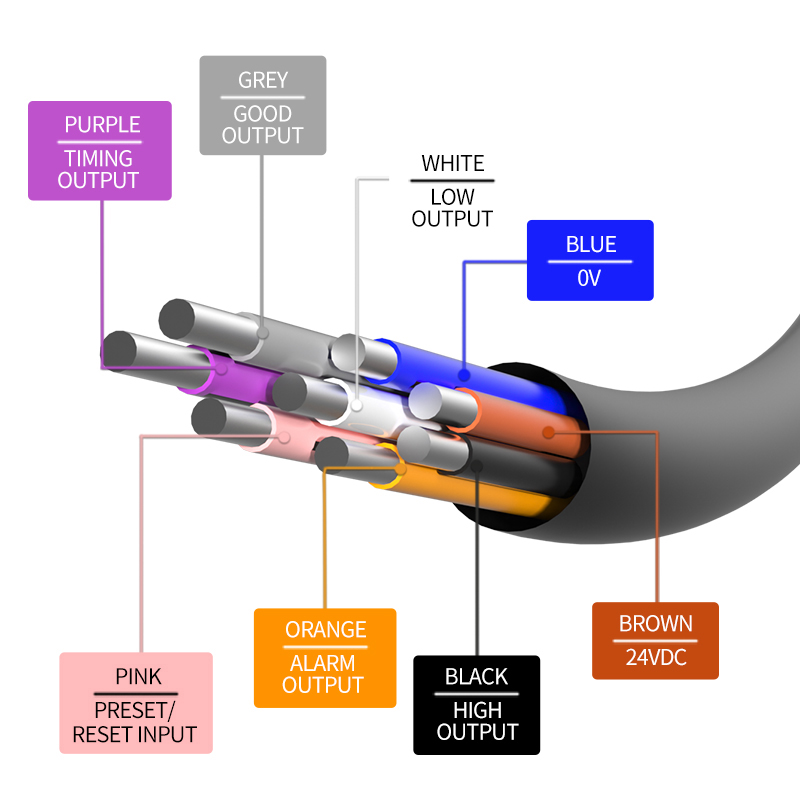

Output Control	NPN collectoropen circuit 40V Maximum 50mA Remaining voltage lV maximum	PNP collectoropen circuit 30V Maximum 50mA Remaining voltage lV maximum
Control input	Input time ofat least 10ms
Reaction Time	<1ms
Consumption Current	<20mA
Ambient Temperature	10°C~+50 °C, no freezing
Relative Humidity	35~85% RH, no condensation
shock	10~55Hz, composite amplitude 1.5mm,2 hours each in the X,Y, and Z directions
material	PC
weight	Approximately 140g(including power cord)
Sensing head
Model	FJC01-12
Measuring Range	0-12.5mm
Variable Range	0-12.5mm
Check The Accuracy	1um
Resolving Power	0.1um
supply Voltage	5V
Measuring Force	<1.5N
Elastic Force	1N
Protective Structure	Amplifier	IP40
	Sensing Head	IP65
	Mechanical Life span	Over 10 million times
	Ambient Temperature	Working hours: 0~+50°C; When saving: -10~+60°C
	Environmental Humidity	Working hours:35~85% RH, no condensation
	Vibration	10~55Hz,single amplitude 0.35mm,50 minutes each in the X, Y, and Z axis directions
	Impact	150m/s’ 6 directions, 3 times each(up and down, left and right, front and back)
Weight	about 100g
Connection Method	Connector relay type
Material	Sensing Head	Stainless steel
	Rubber Sheath	Viton
