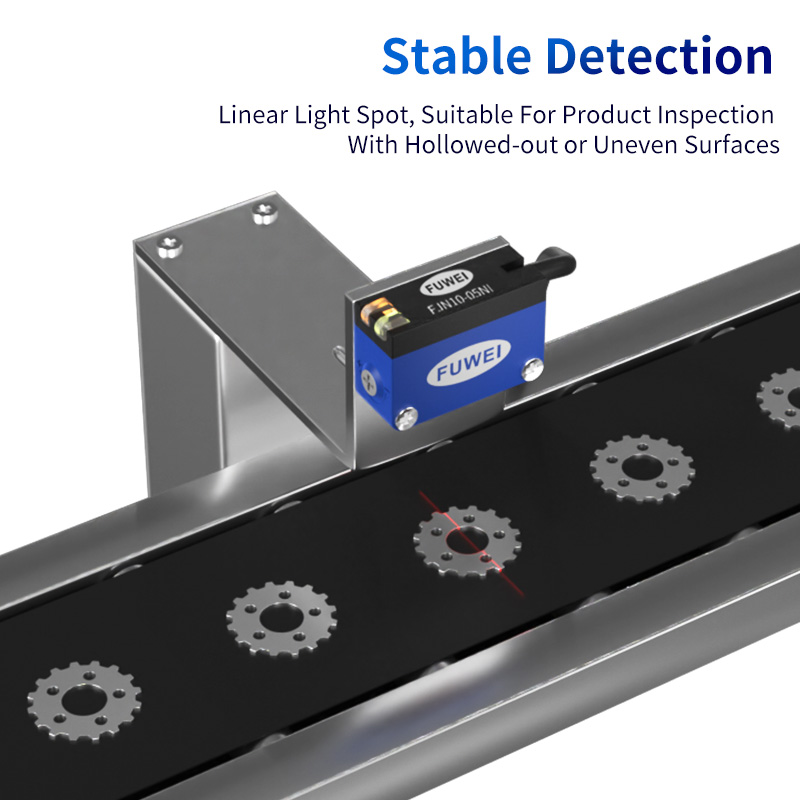

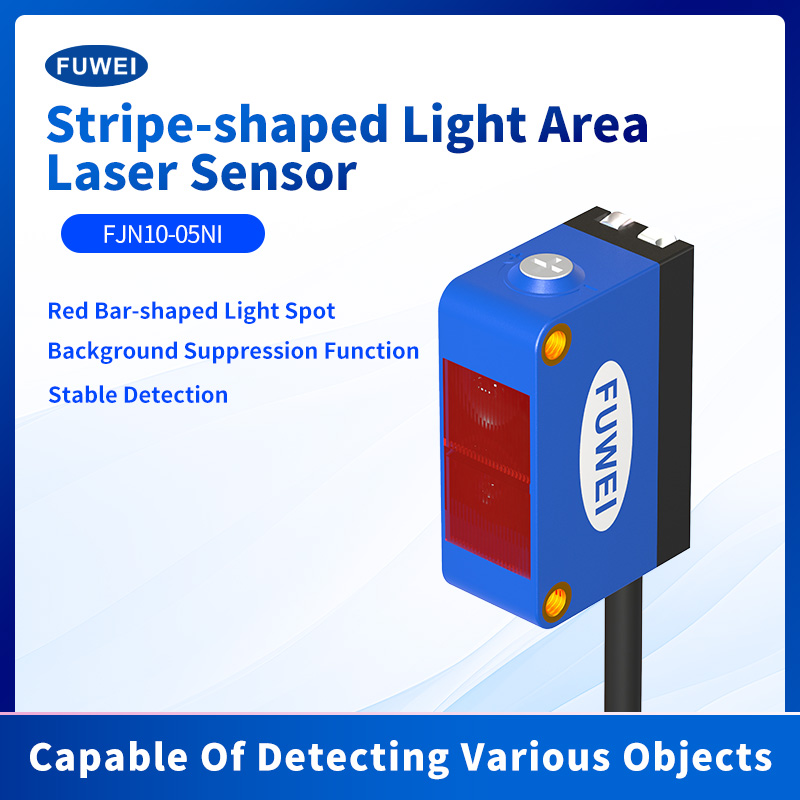

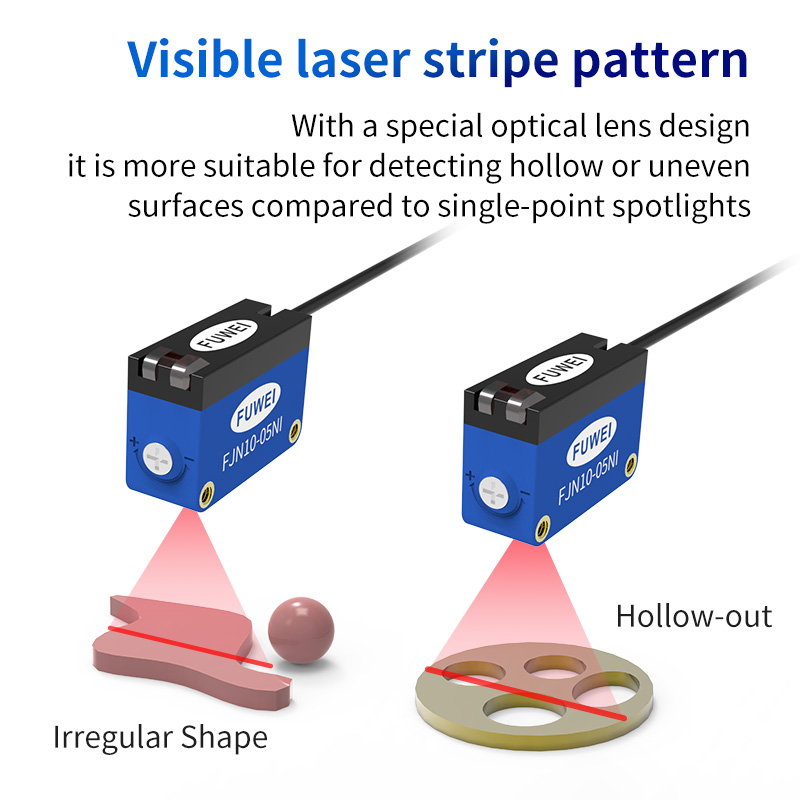

Special optical lens design, linear light spot, suitable for product inspection of hollow or convex surface;
High permeability filter, anti-light electromagnetic interference;
Equipped with multiple transition light point adjuster, the distance can be accurately set;
Imported laser head components, strong anti-interference, long life;
|
Product Parameters |
||
|
Type |
Diffuse Reflection (of Line Laser) |
|
|
Red Light Source Type |

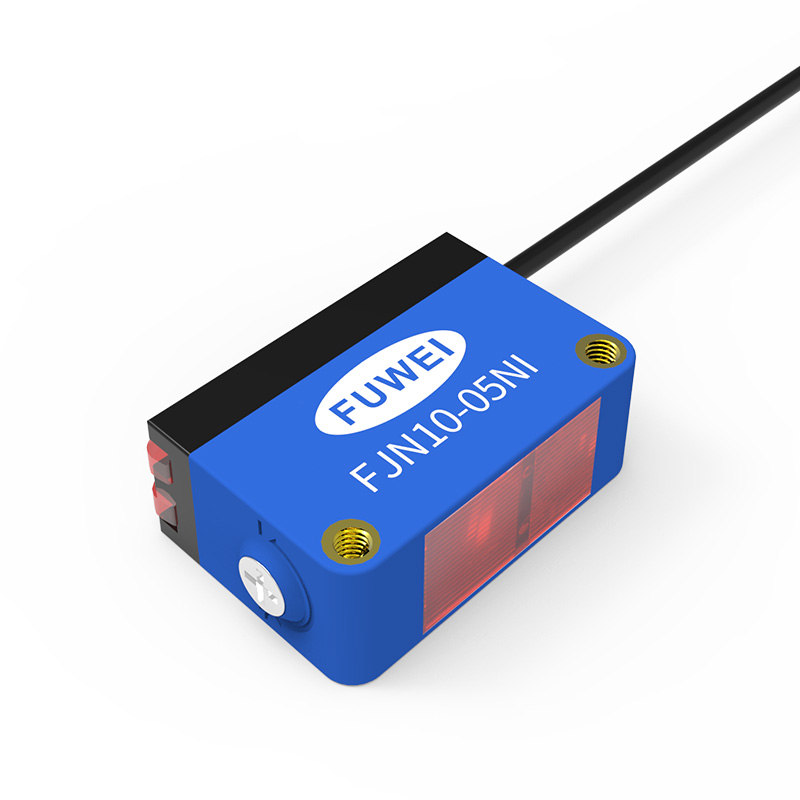

FJN10-05NI |
FJN10-05PI |
|
Output Mode |
N=NPN.NO/NC |
P=PNP.NO/NC |
|
Detection Distance |
1~30cm |
|
|
Light Source |
Visible Light Semiconductor Laser 650nm | |
|
Spot Size |
Line Width 1mm Line Length:7cm@10cm
20cm@30cm |
|
|
Power Supply Voltage |
12-24VDC |
|
|
Maximum Load |
150mA |
|
|
Response Time |
0.5 ms |
|
|
Current Consumption |
<20mA |
|
|
Sensitivity Adjustment |
5-turn potentiometer adjustable |
|
|
Control Output |
NPN/PNP Collector-Open Output |
|
|
Hysteresis |
Maximum 20%/400mm |
|
|
Operating Mode |
Light-On/Dark-On |
|
|
Operating Temperature/Humidity |
Operating temperature:-10℃ to +50℃(No
frosting or icing);Relative humidity:35%to 85% RH |
|
|
Storage Temperature/Humidity |
Operating temperature:-25℃ to +70℃/Relative
humidity:35%to 95%RH |
|
|
Orking Indicator |
Green Light:Power Indicator Light Orange Light:
Signal Output Indicator Light |
|
|
Exterior Material |
PC |
|
|
IP Protection Rating |
IP65 |
|
|
Cable Outlet Method |
2-meter straight output cable |
|
|
Size |
L32xW22.6xH12mm |
|
