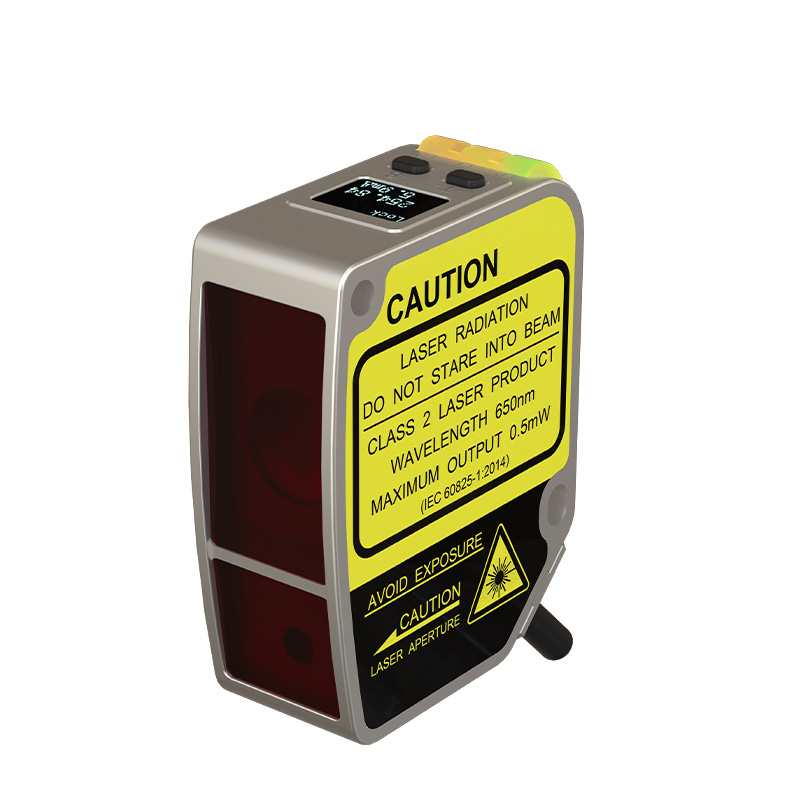

Displacement Measurement Sensor

Product Characteristics：

Measuring range: 25-35mm

Output mode: with switching, current 4-20mA

Linearity accuracy: ±0.4% F.S. (25-35mm)

Repeatability: 5um

Resolution: 2.5um

Spot size: Φ0.5mm at 30mm

Response time：2ms/16ms/40ms可以设置

Ambient light resistance: incandescent light ≥ 3,000lux

Operation panel: OLED digital display

Temperature drift: ±0.02%F.S./°C

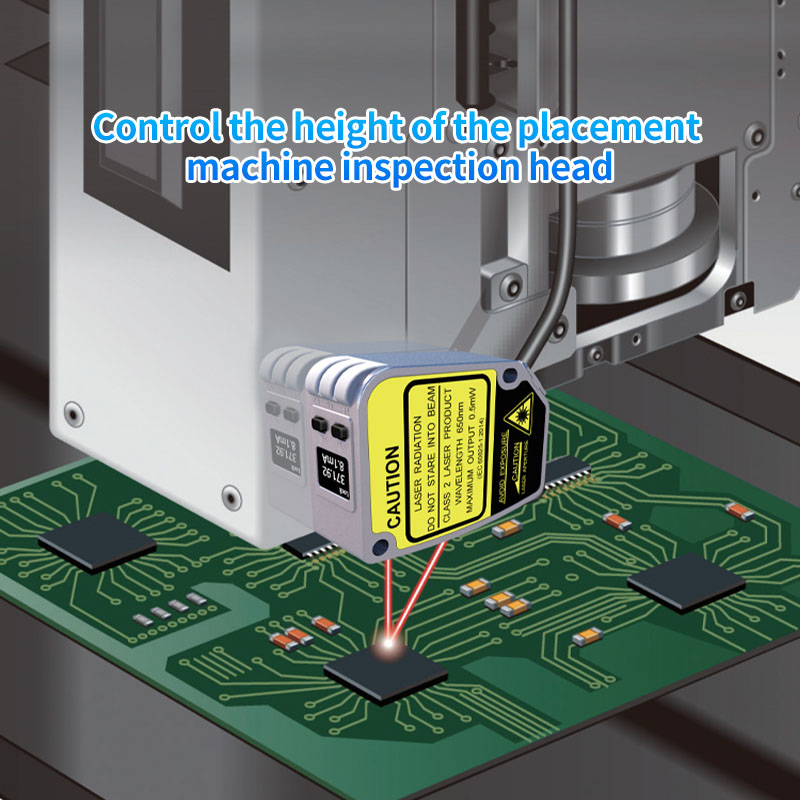

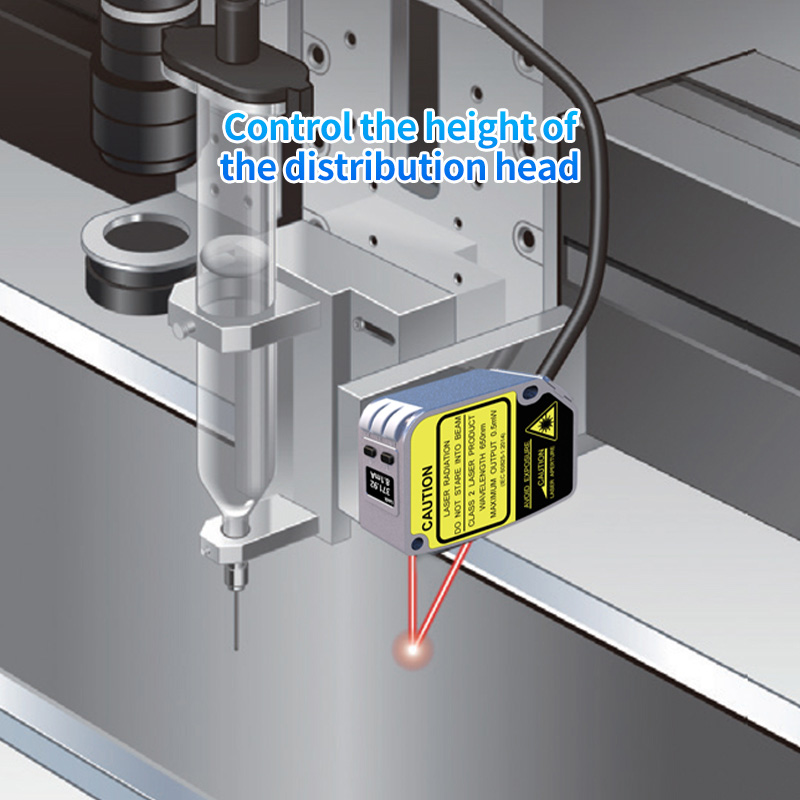

Accurate MeasurementCapability

High precision CMOS sensors and unique algorithms,with ultra-high linear accuracy,achieve non-contactand wear free measurement.

Tiny Laser Spot

Good black and white color difference, with a spot size ofonly0.5mm, can accurately detect small objects.

PowerfulOperationalFunctions

Powerful operating functions: rich range and precisionoptions with different modes and filtering settings, combinedwith zero point setting, single point, window teaching,simulation mapping setting and other functions. Ensure stableand flexible process control and detection.

Digital Display

It is easy to set while confirmingthe displacement amount.

IP67

IP67 protection structure can be usedeven in environments with high levelsof moisture and dust. A metal liningtube is inserted into the installationhole and can be securely secured witha torque of0.8N·m.

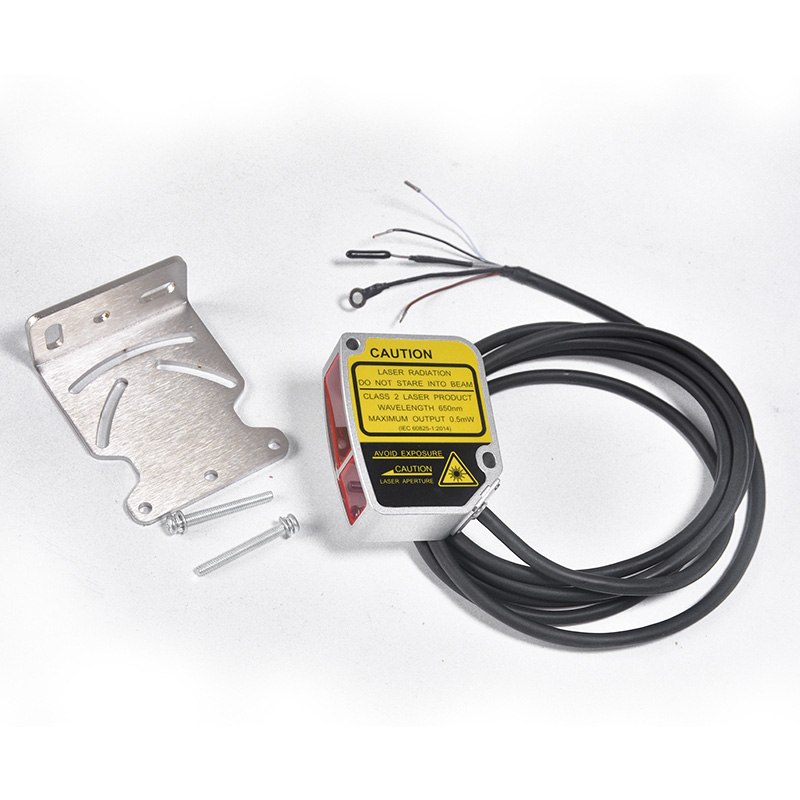

Convenient Installation

The functions of the controller areall integrated into the sensor,eliminating the need for additionalcontrollers to save space.

Supports NPN/PNP polarity

By changing the wiring method,a product can be compatible withboth NPN/PNP polarities, therebyreducing the need for modelregistration formaintenance andupkeep.

Specification

MeasureCenter Distance:30mm

Measuring Range:士5mm

FS.:10mm

Linearity:Standard type:RS485:±0.3%FS.; 4-20mA:+0.4%F.S.

                 High precision type:RS485:+0.1%F.S.: 4-20mA:+0.1%FS

supply Voltage:RS-485: 10...30VDC: 4...20mA: 12...24VDC

PowerConsumption:<700mW

LOAD:200mA

Pressure Drop:<2.5V

Light Source:Red laser(650nm); Laser level: Class 2

Spot Size:0.5mm@30nm

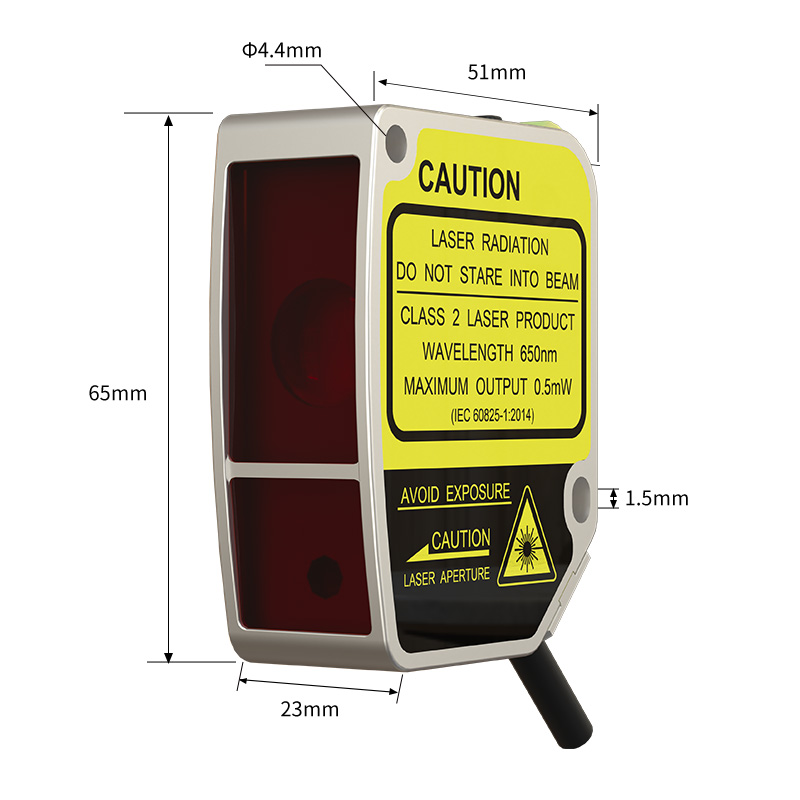

Size:65*51*23mm

Resolution:2.5um@30mm

 RatioRepeatability:5um

Output1:Digital quantity: RS-485 (supports ModBus protocol);Analog quantity: 4-20mA (load resistance < 390 Ω)

Output2:Switching quantity: PUSH-PULL/NPN/PNP and NO/NC can be set
