Performance Characteristics:
Optical glass code plate, stable signal output;
High-quality wire with shielding, stronger anti-interference ability;
High-strength heat-resistant ABS shell, higher protection performance;
Imported bearings, stable and durable, long service life;
Widely Used
Position measurement, speed monitoring, direction angle detection in factory and logistics automation, etc.The products are widely used in the food and beverage industry, in medical technology or in printing machines, textile machines and packaging machines.
Specification
|

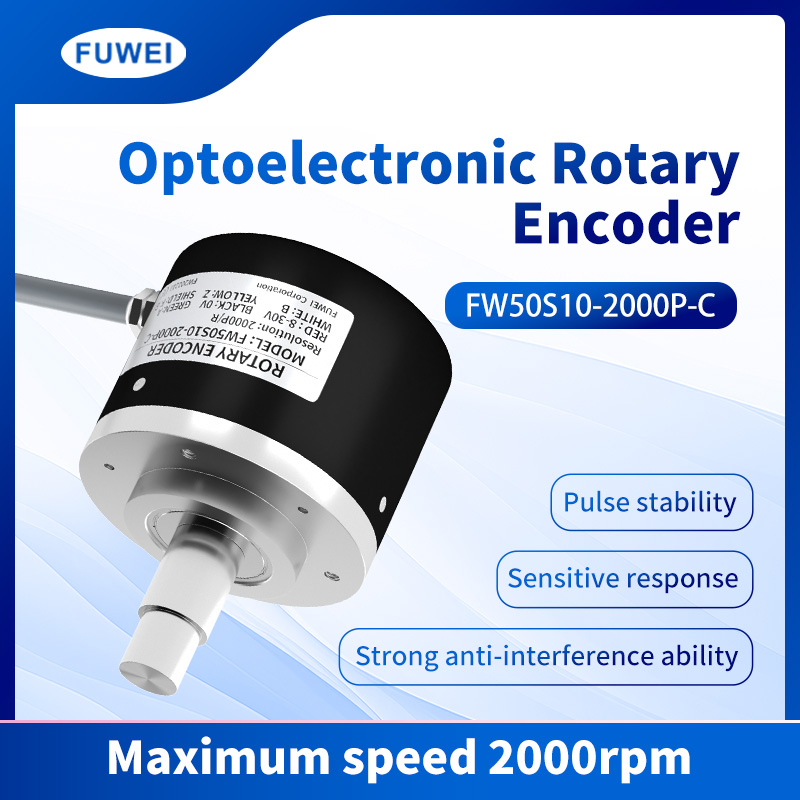

model |
FW50S10-2000P-C |
|
Output |
Collector output (NPN/PNP) |
|
Output Phase |
A ,B,Z |
|
Consumption Current |
≤80mA(No load) |
|
supply Voltage |
10~30VDC |
|
Response Speed |
≤1us |
|
Maximum Response Frequency |
300kHz |
|
Maximum Speed |
2000rpm |
|
Starting Torque |
≤0.007N·m |
|
Moment of inertia |
≤80g.cm²(8x106kg.m2) |
|
Axis Allowable Load |
Radial:<10kgf, Thrust:<2.5kg |
|
Insulation impedance |
≤100MΩ |
|
With standing Voltage |
Charging section and housing: 750VAC~50/60Hz per minute |
|
Vibration |
10~55Hz, amplitude 1.5mm, 2 hours each in X,Y, and Z directions |
|
Impact Resistance |
≤75G |
|
Operation Temperature |
-10~70°C(Unfrozen state) |
|
Working Humidity |
35~85%RH(Unfrozen state) |
|
Storage Temperature |
-25~85°C(Unfrozen state) |
|
Storage Humidity |
35~90%RH(Unfrozen state) |
|
Protection Grade |
IP50 |
