Performance Characteristics:
Optical glass code plate, stable signal output;
High-quality wire with shielding, stronger anti-interference ability;
High-strength heat-resistant ABS shell, higher protection performance;

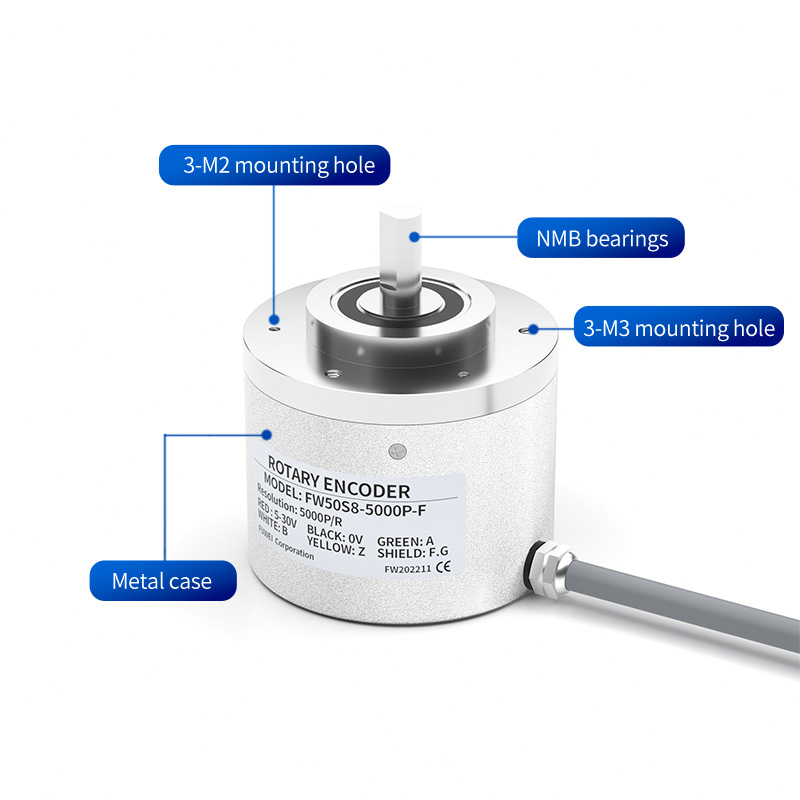

Imported bearings, stable and durable, long service life;
Specification
|

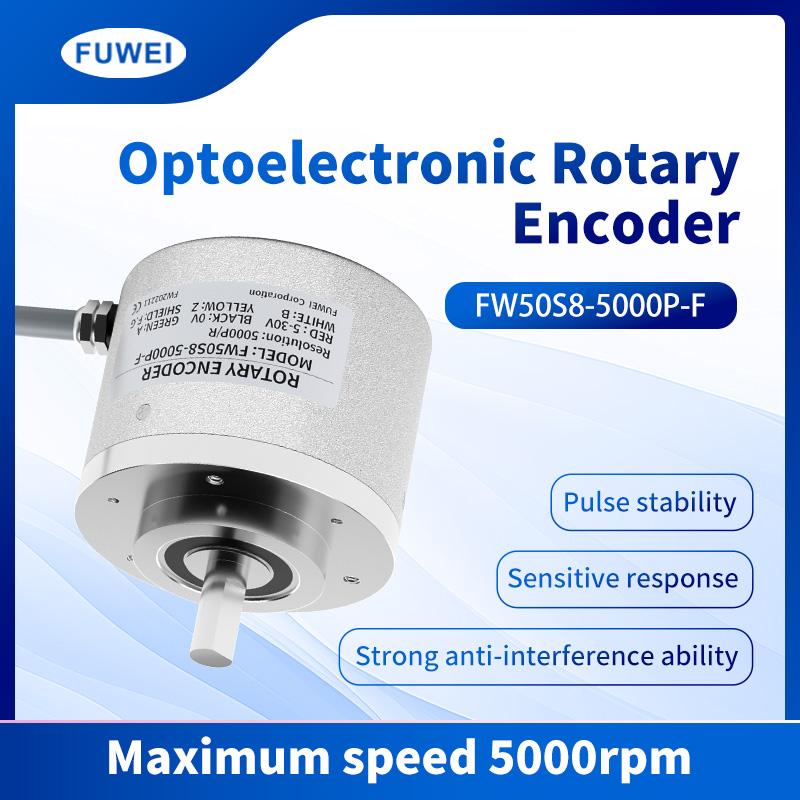

model |
FW50S8-5000P-F |
|
Output |
Push pull output (NPN/PNP universal) |
|

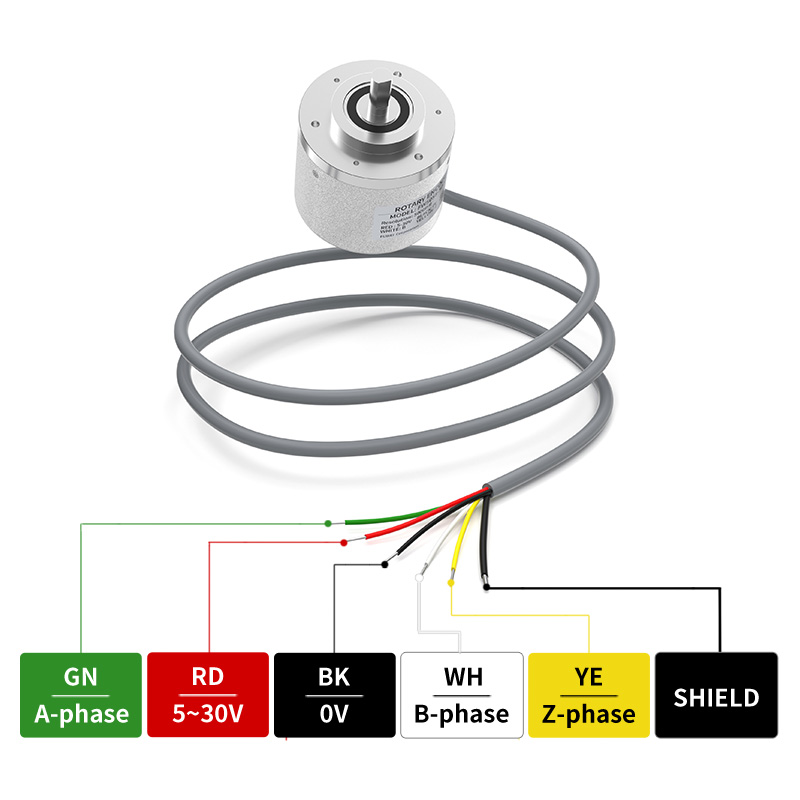

Output Phase |
A ,B,Z |
|
Consumption Current |
≤80mA(No load) |
|
supply Voltage |
10~30VDC |
|
Response Speed |
≤1us |
|
Maximum Response Frequency |
300kHz |
|

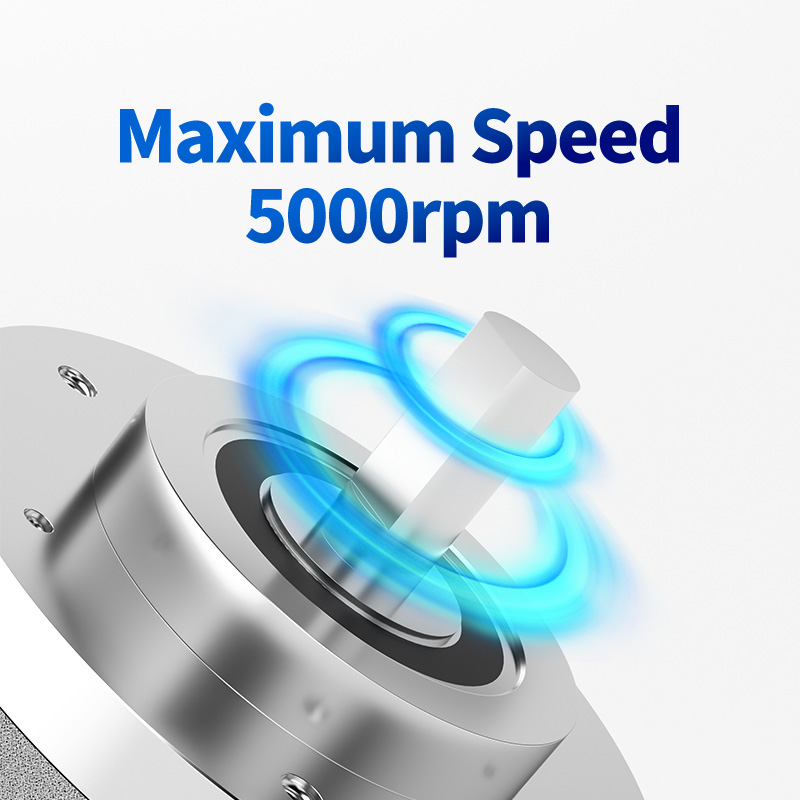

Maximum Speed |
5000rpm |
|
Starting Torque |
≤0.007N·m |
|
Moment of inertia |
≤80g.cm²(8x106kg.m2) |
|
Axis Allowable Load |
Radial:<10kgf, Thrust:<2.5kg |
|
Insulation impedance |
≤100MΩ |
|
With standing Voltage |
Charging section and housing: 750VAC~50/60Hz per minute |
|
Vibration |
10~55Hz, amplitude 1.5mm, 2 hours each in X,Y, and Z directions |
|
Impact Resistance |
≤75G |
|
Operation Temperature |
-10~70°C(Unfrozen state) |
|
Working Humidity |
35~85%RH(Unfrozen state) |
|
Storage Temperature |
-25~85°C(Unfrozen state) |
|
Storage Humidity |
35~90%RH(Unfrozen state) |
|
Protection Grade |
IP50 |
