Performance features:

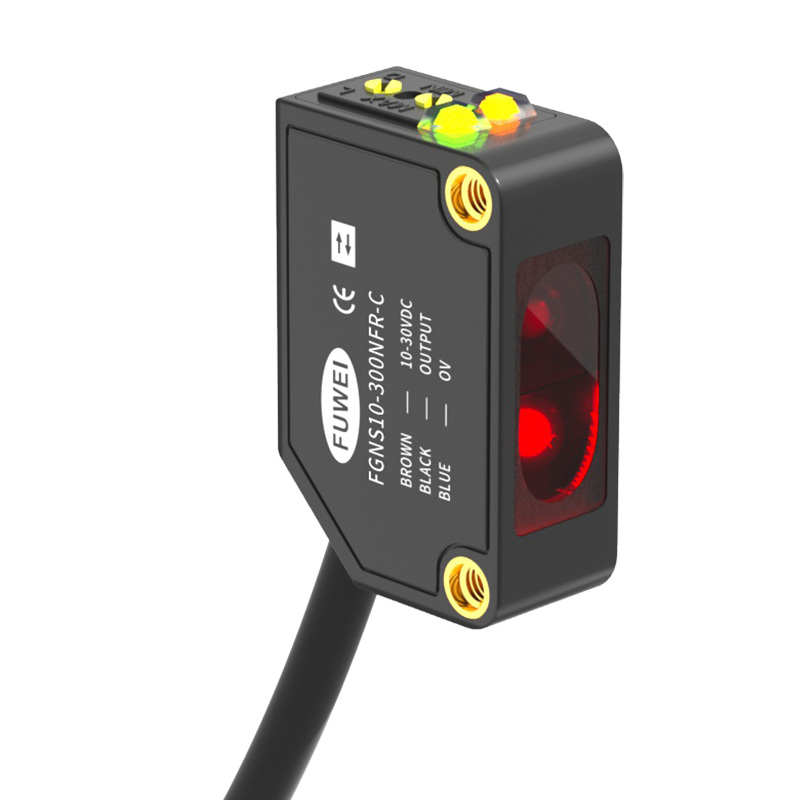

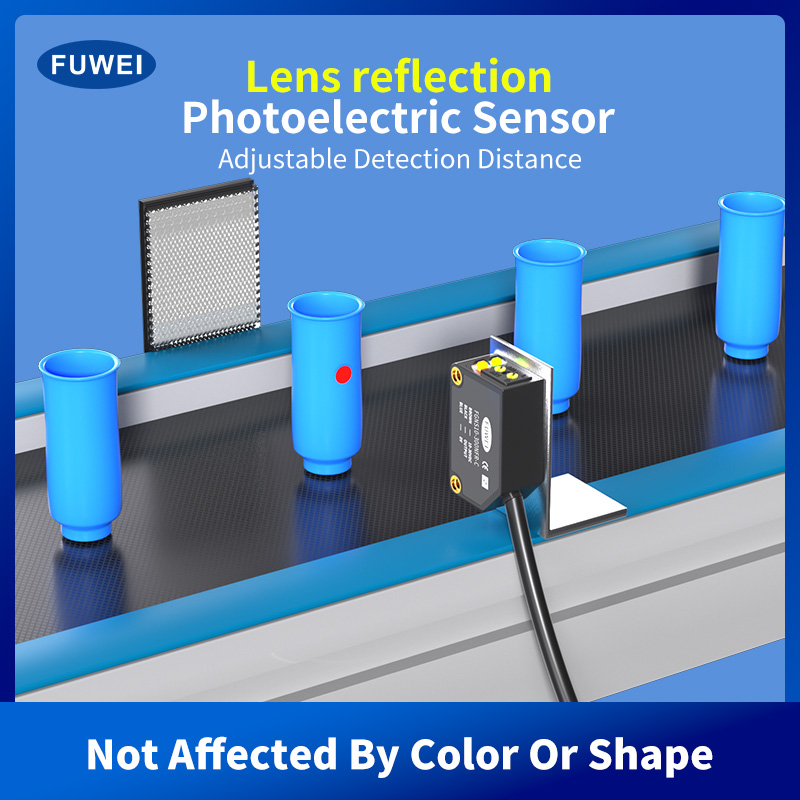

Mirror reflection photoelectric sensor; Detection distance 0~3m adjustable;
Internal inlaid anti-interference chip, sensing objects with higher accuracy;
Short circuit protection, overload protection, reverse polarity protection, voltage 12-24V;
High-quality pure copper core wire, tensile and flexural resistance, real materials, safe conductivity
Specification
|

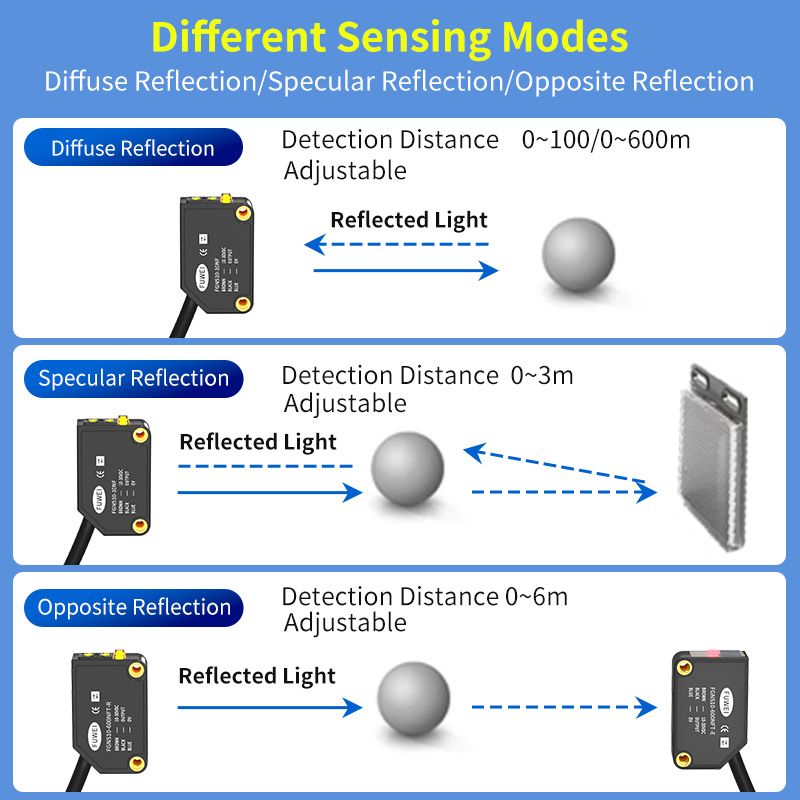

Detection Method |
Retro-Reflection |
|
| Model |
NPN Output |
FGNS10-300NFR-C |
|
PNP Output |
FGNS10-300PFR-C |
|
|
Detection Distance |
3m |
|
|
Detect Objects |
Opaque Objects With A Diameter Greater Than 75mm |
|
|
Shoulder Error Distance |
Below 15% OfThe Detection Distance |
|
|
Repeatability |
<0.5mm |
|
|
Response Time |
<2ms |
|
|
Light Project-ing |
Infrared LED |
|
|
Element Directional Angle |
2~10° |
|
|
Power Supply Voltage |
12~24VCD |
|
|
Consumption Current |
<10mA |
|
|
Output Form |
NPN Open Collector OutputMaximum Load Current : 80 mA Maximum Load Voltage: <30 VDC Residual Voltage :<2VDC PNP Open Collector OutputMaximum Load Current : 100 mAMaximum Load Voltage: <30 VDCResidual Voltage :<2VDC |
|
|
Output Action |
NO/NC Switchable |
|
|
Indicator Light |
Green: Power Indicator Light Orange: Action Indicator Light |
|
|
Sensitivity Adjustment |
One-Way Rotation Knob |
|
|
Anti-lnterference Function |
Equip With |
|
|
Protection Circuit |
Reverse power connection protection, output short circuit protection,output reverse connection protection |
|
|
Protective Structure |
IP64 |
|
|
Ambient lluminance |
llluminance on Light-receiving Surface ,incandescent Lamp:<3,000lx、Sunlight:<10,000lx |
|
|
Ambient Temperature |
DuringOperation:-20~+60°C DuringSaving:-40~+70°C |
|
|
Ambient Humidity |
DuringWorking:35~85%RH、During Saving:35~95%RH |
|
|
Insulation Resistance |
>20MΩ(DC500vMegohmmeter) |
|
|
Withstand Voltage |
AC1,000V 50/60Hz 1min |
|
|
Vibration Resistance |
A Two-Hour Test With A Peak-To-Peak Amplitude Of 1.5mm in Each Of The X, Y, And ZDirections, CoveringA Frequency Range Of 10 To 55hz |
|
|
Impact Resistance |
Three Repetitions At A Speed Of500m/S In Each OfThe X, Y, And Z Directions |
|
|
Connection Method |
Lead-0utType (Standard Lead Length Of2 Meters) |
|
|
Shell |
Shell: Pbt, Lens: Acrylic |
|
|
Cable |
A 2m long rubber cable with 0.2mm thickness, available in 2-core, 3-core, or 4-core options. |
|
|
Accessories |
Instruction Manual, Screwdriver, Reflective Plate (Retro-Reflective Type) |
|
|
Weight |
65g |
|
