Performance features:
Background suppression photoelectric sensor, detection distance is not affected by the color of the object;
Potentiometer large knob design, easy and quick to adjust the distance
Visible light spot, easy to calibrate the object;
Specification
|
Detection Method |
Background Suppression Type |
|
|

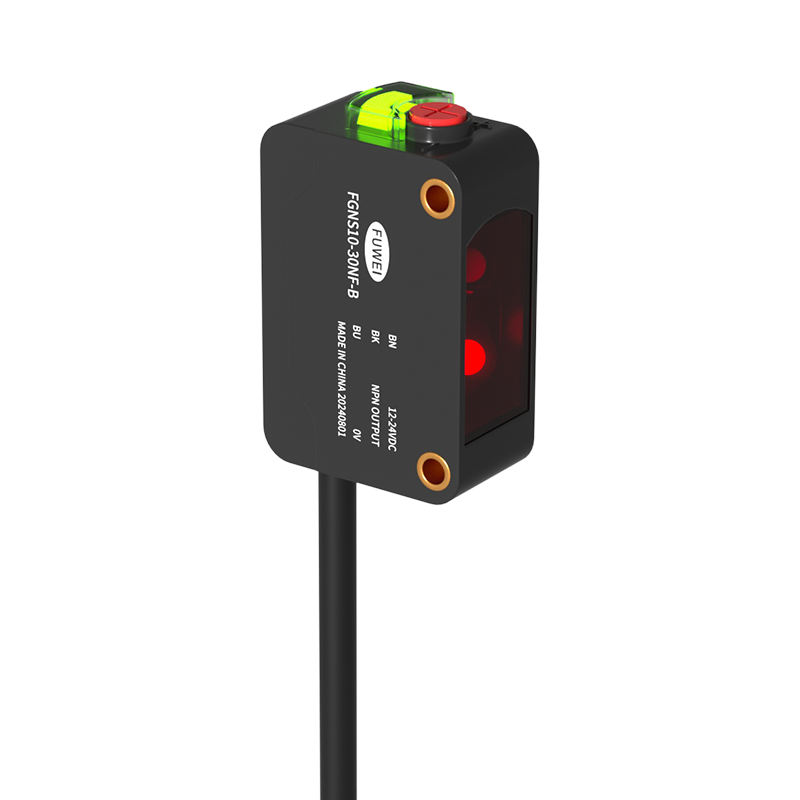

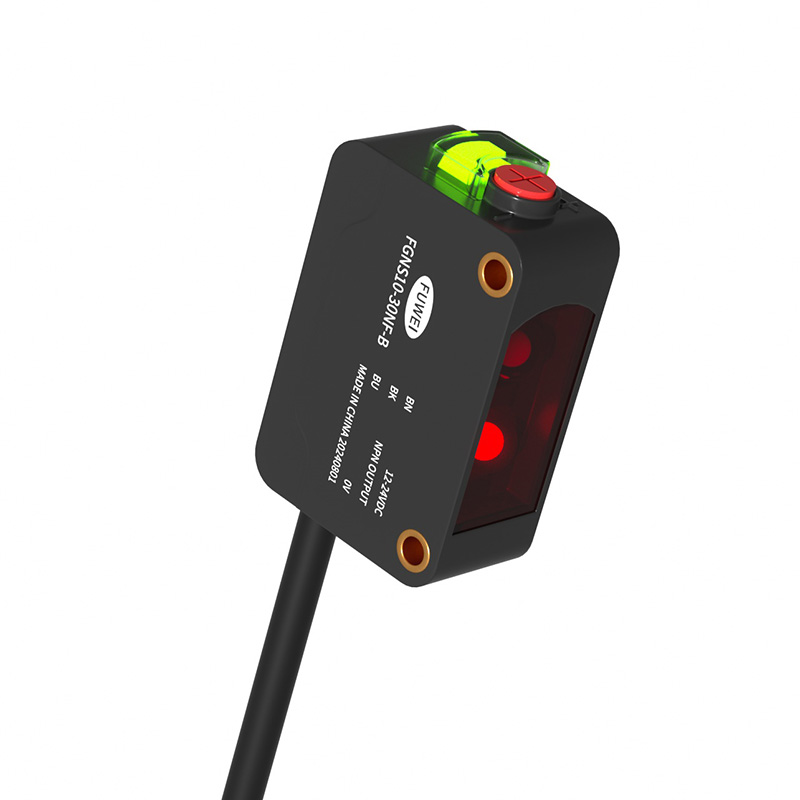

Model |
NPNOutput |
FGNS10-30NF-B |
|
PNPOutput |
FGNS10-30PF-B |
|
|
Detection Distance |
10-350mm |
|
|
Set Distance Range |
50-350mm |
|
|
Black-White Error |
<10% (Detection Target: Black And White Cardboard Paper |
|
|
Response Time |
<1ms |
|
| Light Emitting Element |
Red Light |
|
| Power Supply Voltage |
12~24VDC |
|
| Consumption Current |
<20mA |
|
|
Output Control |
Output Form |
NPN Open Collector OutputPNP Emitter Open OutputMaximum Load Current : 100 mA Maximum Load Current :100mAMaximum Load Voltage :30 VDC Maximum Load Voltage :30VDCResidual Voltage :<0.6VDCResidualVoltage of:<0.6V DC |
|
Output Action |
NO/NC Switchable,Switching Method:Short Circuit Between White Wire and Blue Wire |
|
|
Indicator Light |
Emerald Green: Power Indicator LightRed: Action Indicator Light & Distance SettingIndicator Light |
|
|
Detection DistanceAdjustment |
Position Adjustable Type (Screw Knob) |
|
|
Anti-lnterferenceFunction |
Equipped with |
|
|
Protective Circuit |
Equipped with Reverse Power Connection Protection,Output Short Circuit Protection |
|
|
Protective Structure |
IP64 |
|
|
Environ-mental Perform-ance |
Ambient lllumination |
llluminance on Light-receiving SurfaceIncandescentLamp:<10000 LXSunlight<100000 LX |
|
Ambient emperature |
During Operation: -20°c°~70°CDuring Saving:-40°C~80°C |
|
|
Ambient Humidity |
During Working:35~85%RH During Saving: 35~95%RH |
|
| insulation Resistance |
>20MQ(DC500V Megohm meter) |
|
|
With stand Voltage |
AC10000V 50/60HZ 1min |
|
|
Vibration Resistance |
10~55HZ,Double Amplitude Of 1.5mmIn X, Y,Z Directions For 2 Hour |
|
|
Shock Resistance |
500m/s Applied Three Times in Each OfThe X, Y, And Z Directions. |
|
|

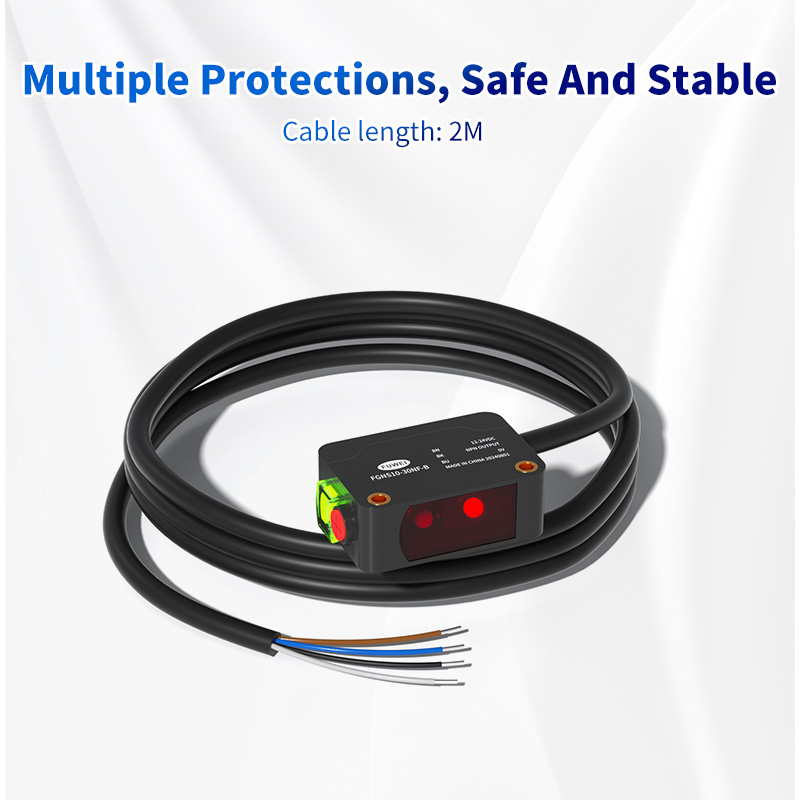

Wiring Method |
Wire Lead Type (Standard Wire Length: 2m) |
|
|
Material |
Enclosure |
Shell: ABS, Lens: Acrylic |
|
Cable |
0.2mm 4-Core Rubber Cable, 2m in Length |
|
