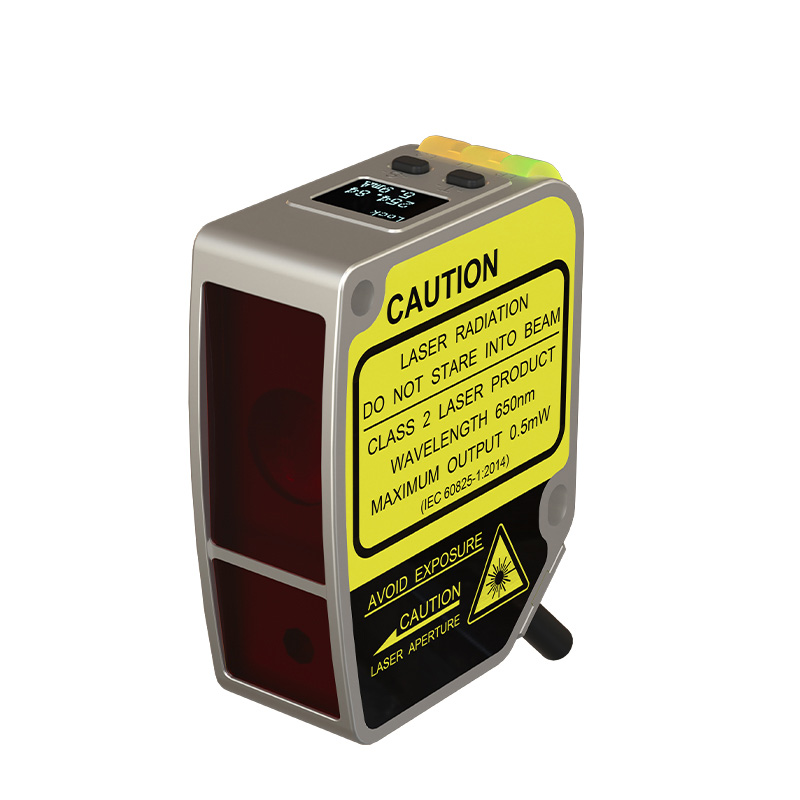

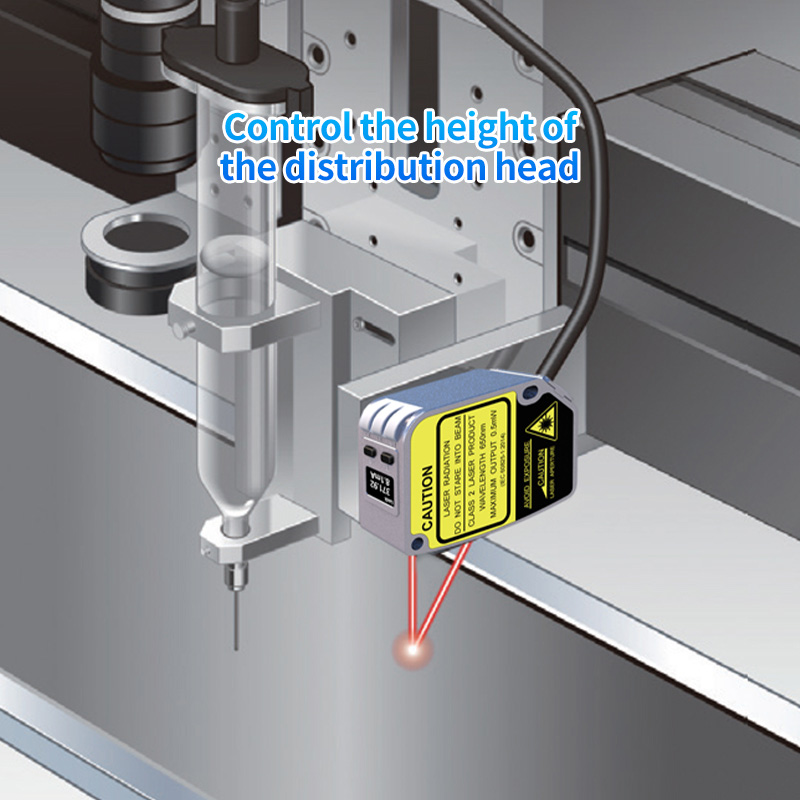

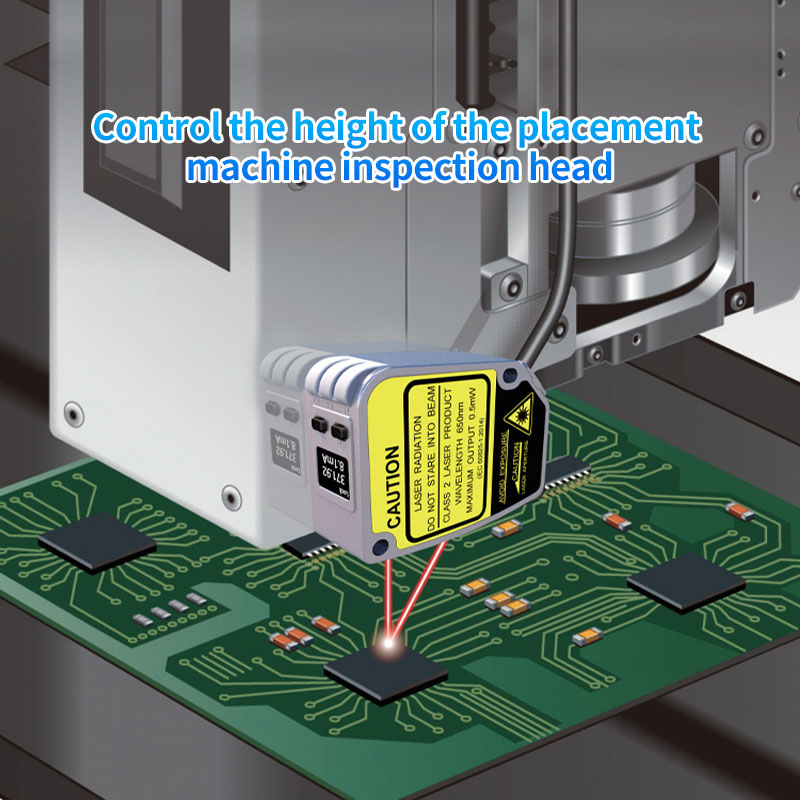

Laser Displacement Sensor

Product Characteristics：

Measuring range: 150-1000mm

Output mode: with switch quantity and current 4-20mA

Linearity accuracy: standard: ± 0.6% F.S.

Resolution: 50um at 150mm; 2mm at 1000mm

Spot size: Φ3mm at 1000mm

Response time：2ms/16ms/40ms can be set

Powerful OperationalFunctions

Powerful operating functions: rich range and precisionoptions with different modes and filtering settings, combinedwith zero point setting, single point, window teaching,simulation mapping setting and other functions. Ensure stableand flexible process control and detection.

Accurate MeasurementCapability

High precision CMOS sensors and unique algorithmswith ultra-high linear accuracy, achieve non-contactand wear free measurement.

Can Communicate Datawith Upper Level DevicesSuch as PLC

Using the RS-485 interface, up to 32 sensors can be connected(each sensor has a different address set separately),sendingrequest messages from the PLC and returning measurementvalues.

Tiny Laser Spot

Good black and white color difference, with a spot size ofonly0.5mm, can accurately detect small objects.

Flexible Output Methods

Flexible output mode:built-in switch output(NPN/PNP/PULL-PUSH)+analog outputof4.20mAor RS-485, and supports MODBUS protocol,without the need to connect to the controller, workingindependently,whetherit is a PLC or an industrial computer,it can be easily connected directly.

Digital Display

It is easy to set while confirmingthe displacement amount.

IP67

IP67 protection structure can be usedeven in environments with high levelsof moisture and dust. A metal liningtube is inserted into the installationhole and can be securely secured witha torque of0.8N · m.

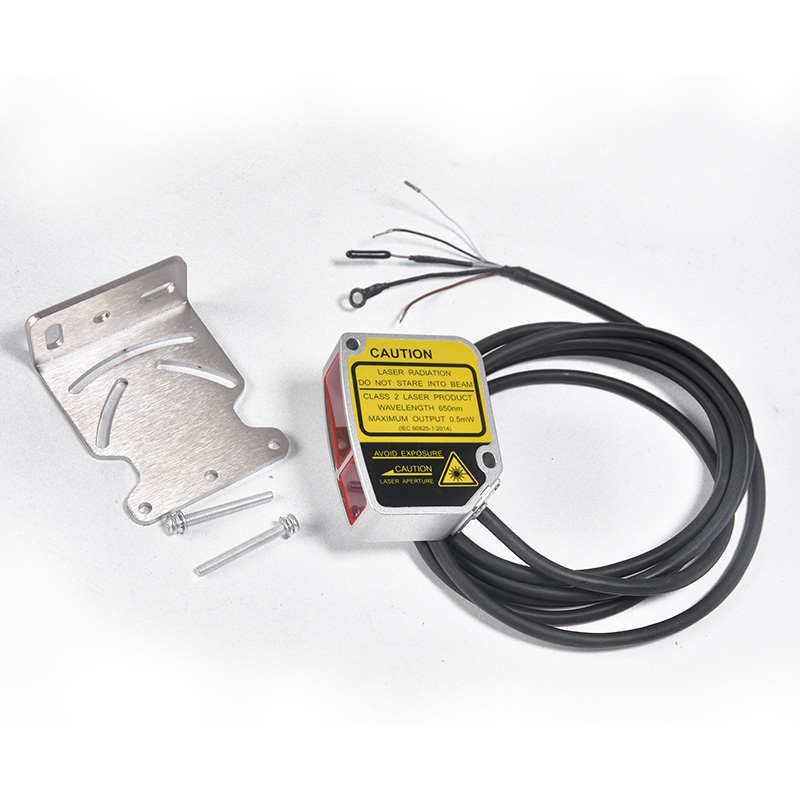

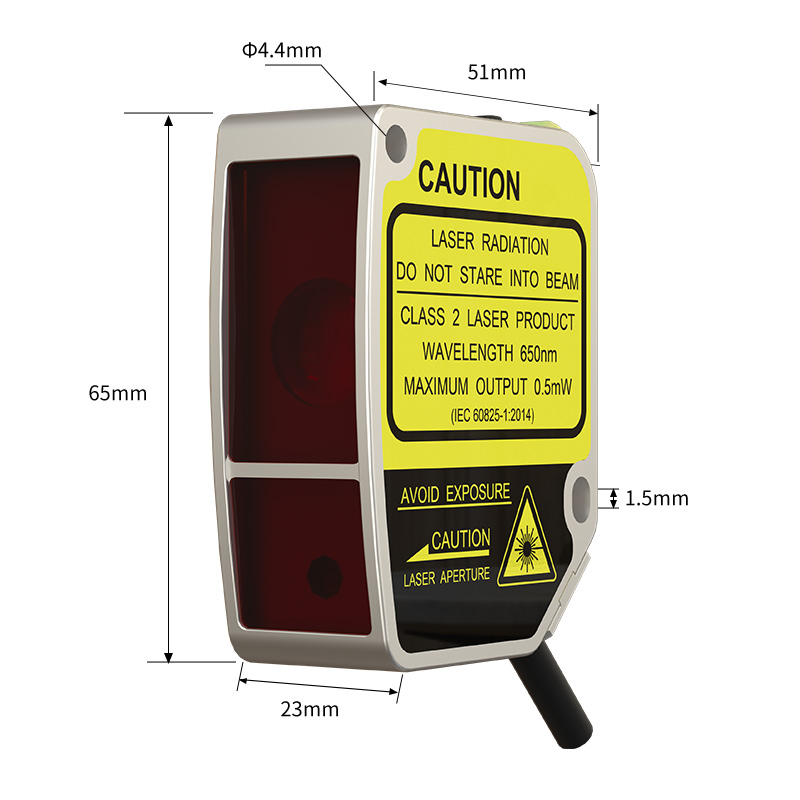

Convenient Installation

The functions of the controller areall integrated into the sensor,eliminating the need for additionalcontrollers to save space.

By changing the wiring method,a product can be compatible withboth NPN/PNP polarities, therebyreducing the need for modelregistration for maintenance andupkeep.

Specification：

Measuring range：

 150-1000mm

Full range (F.S.)：

850mm

Light spot size：

中3mm@1000mm

Standard type: linear accuracy：

+0.6%FS.

High precision type: linear precision：

150-450mm:+0.3%FS.

450-1000mm:+0.6%F.S

Repetition accuracy①②：

100um@150mm

520um@500mm

4000um@1000mm

Resolution：

50um@150mm

2000um@1000mm
